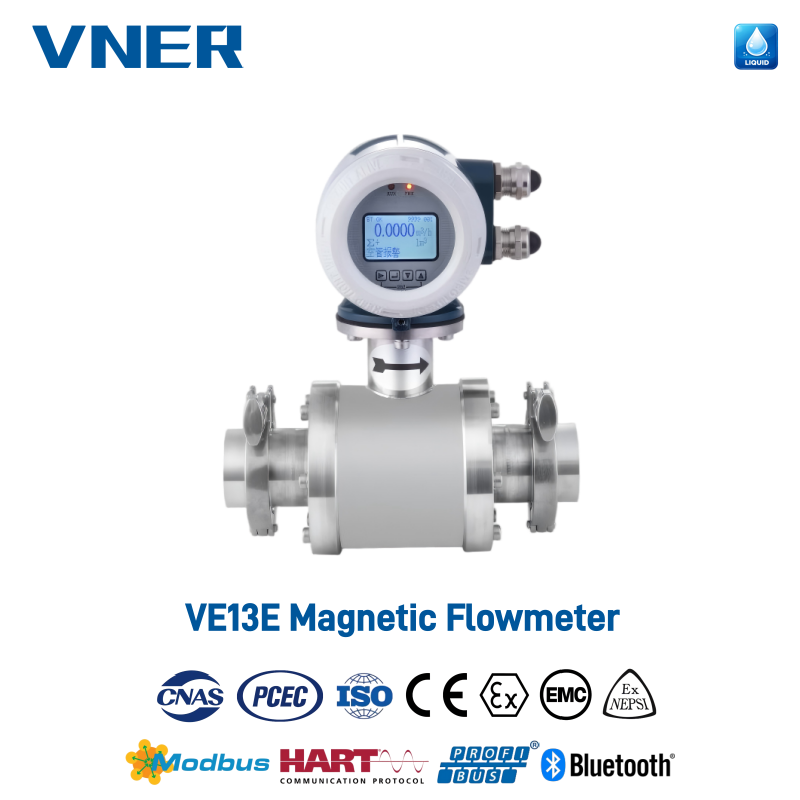

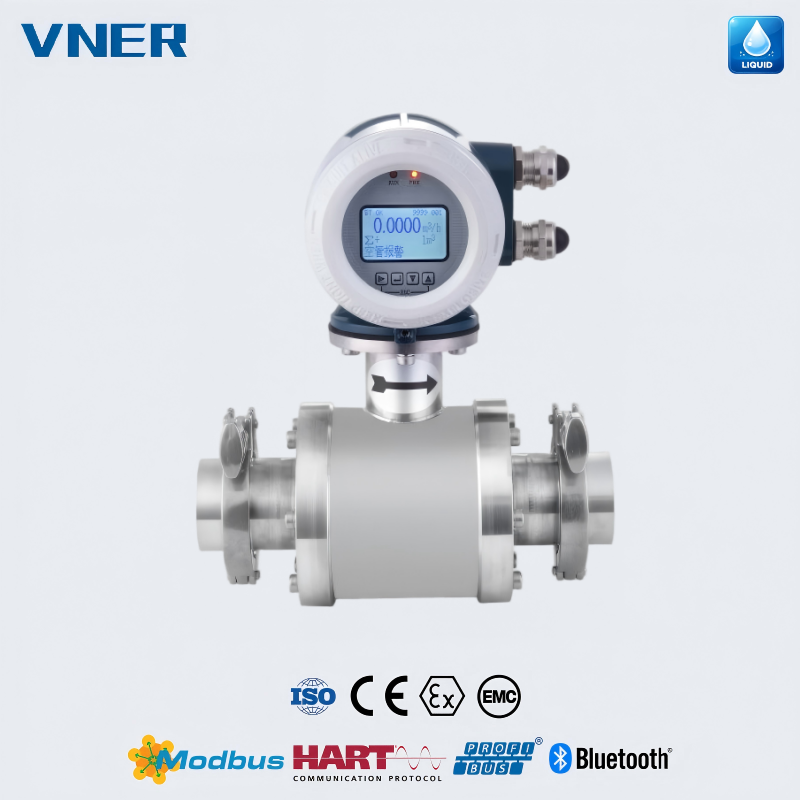

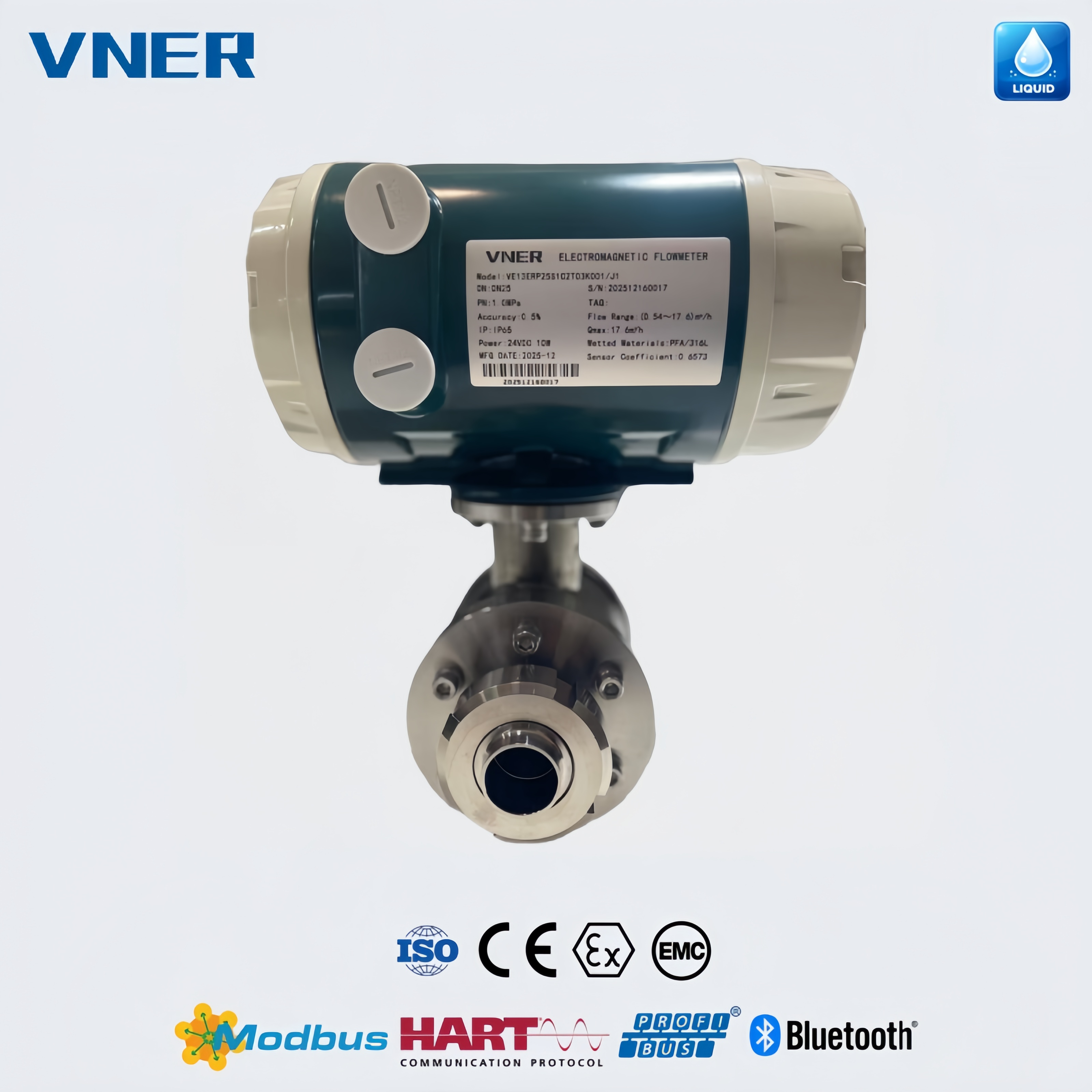

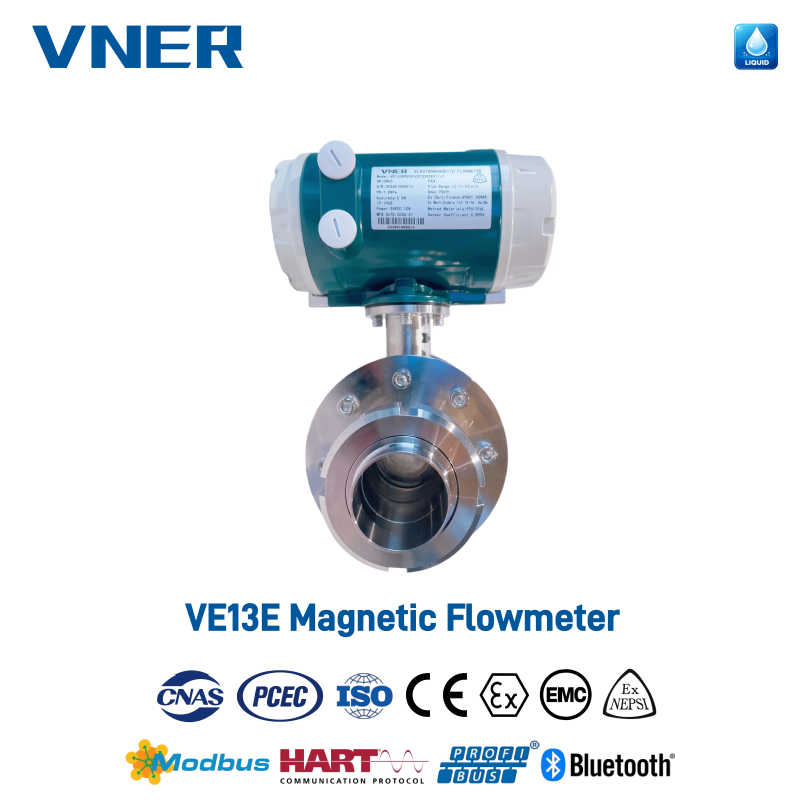

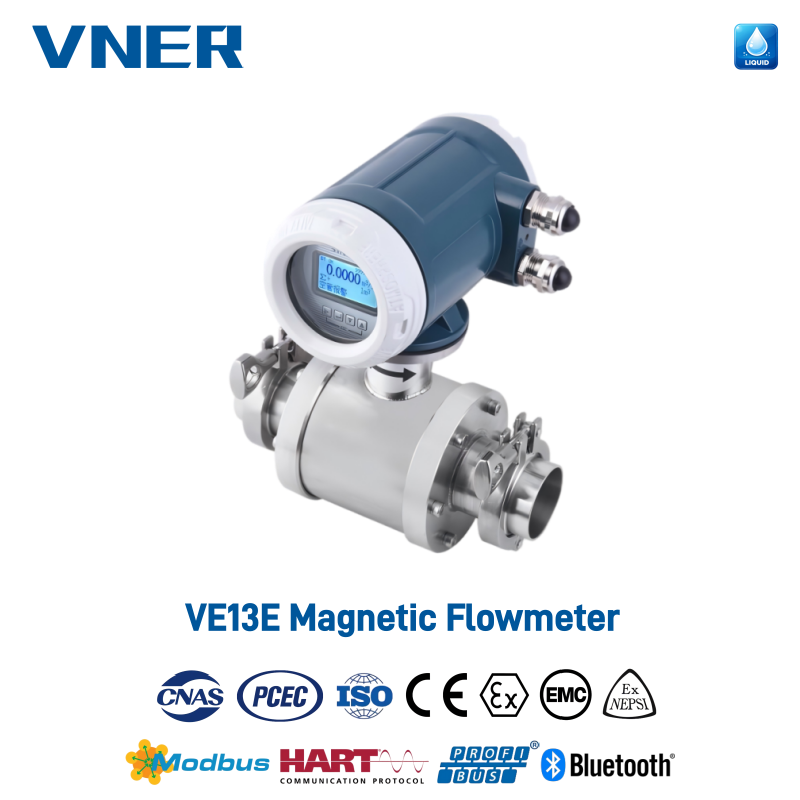

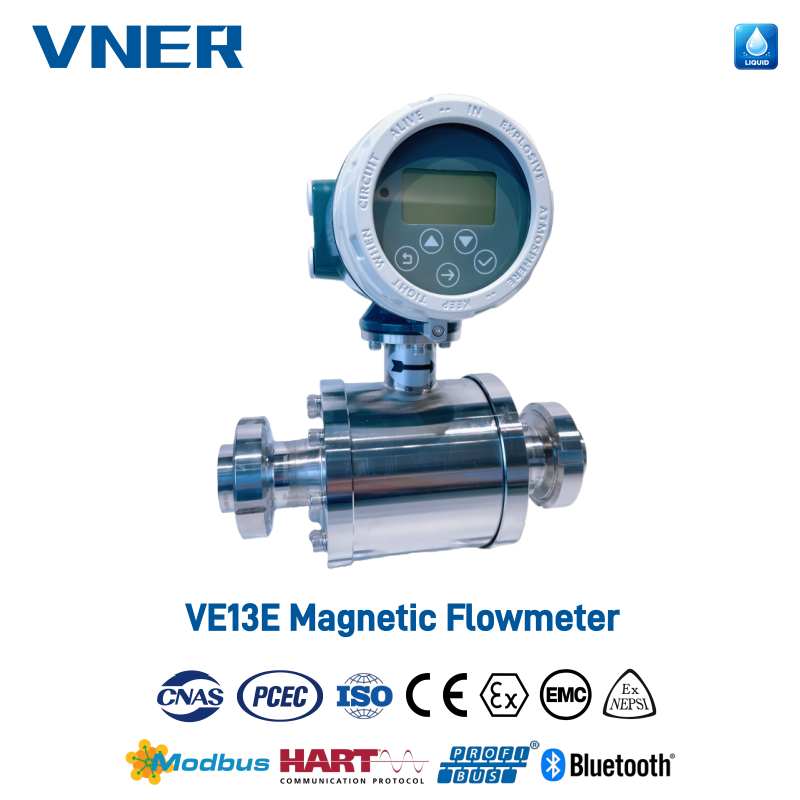

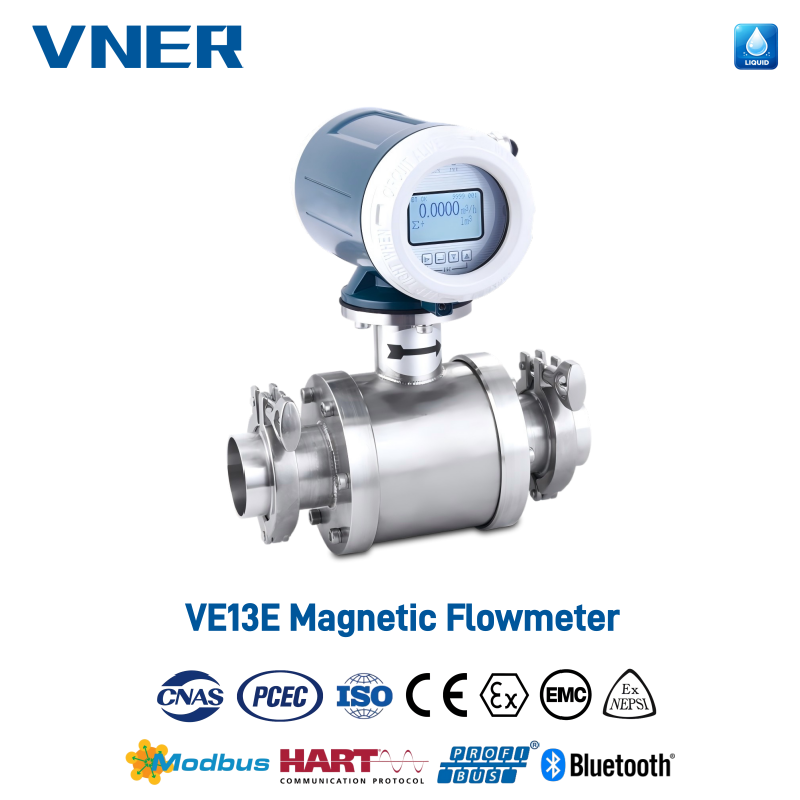

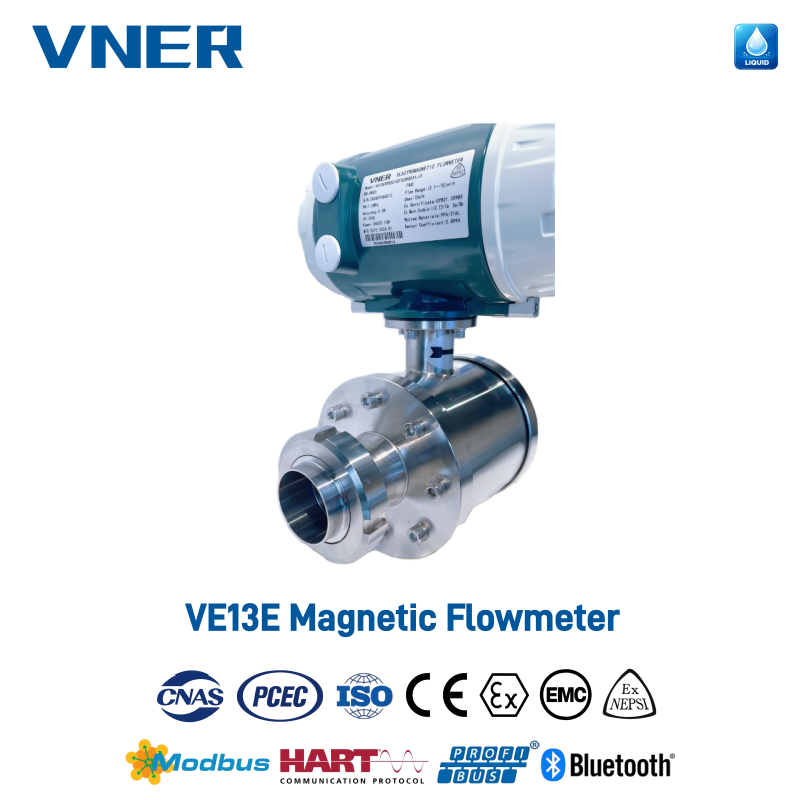

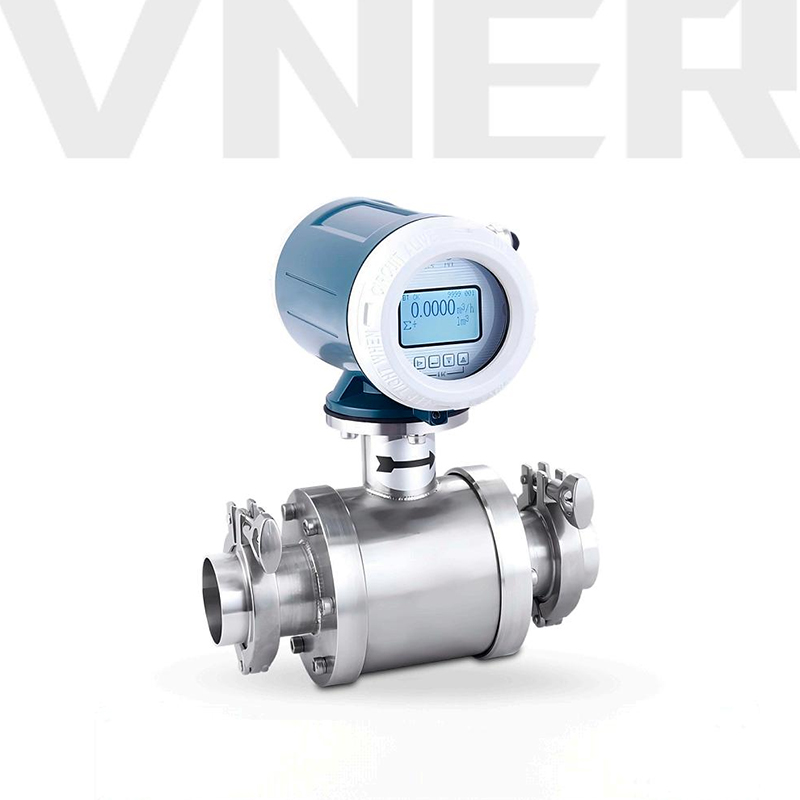

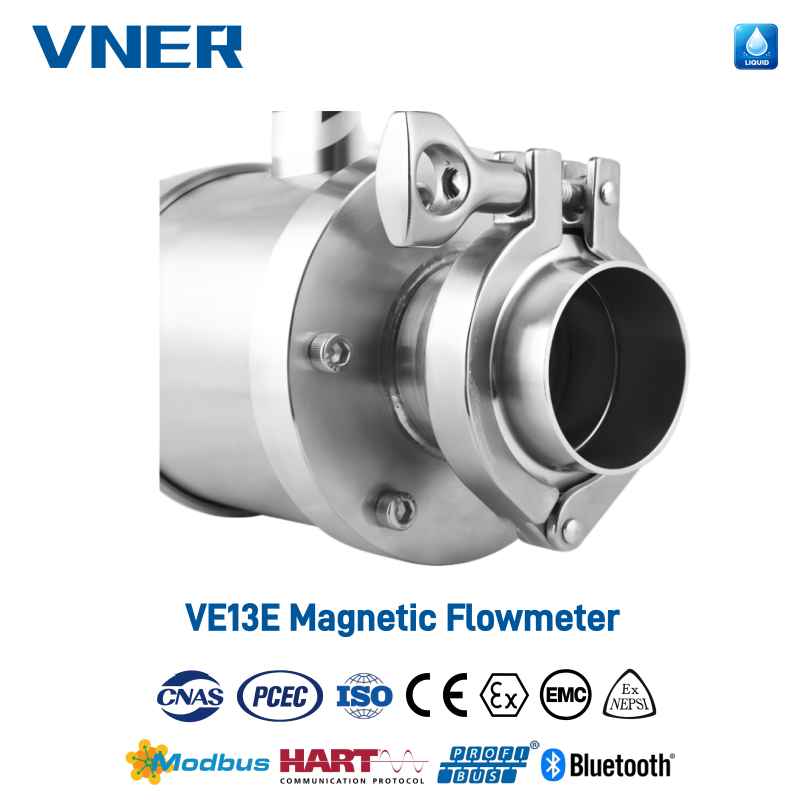

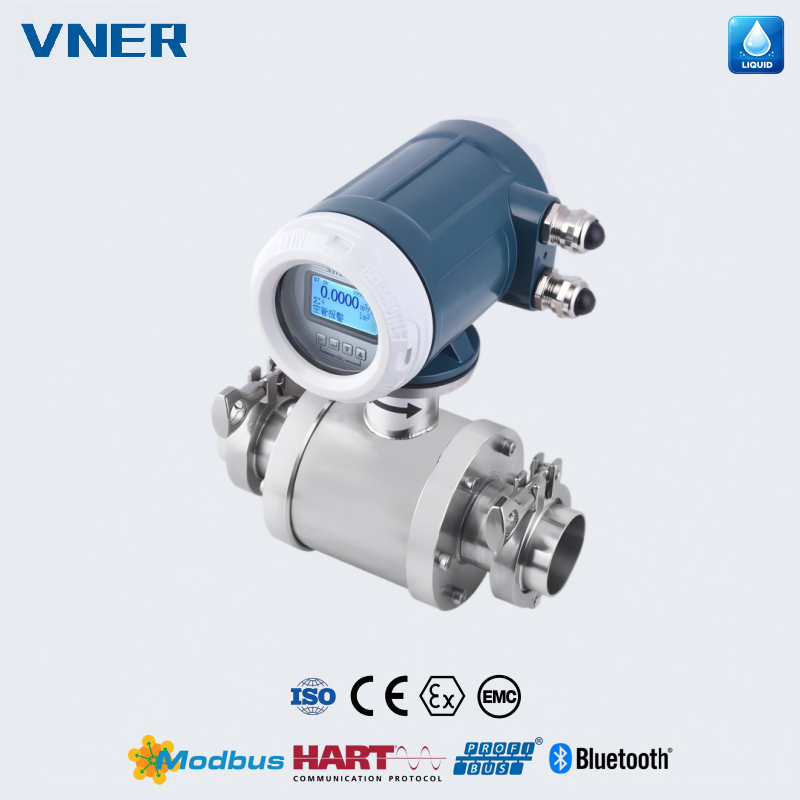

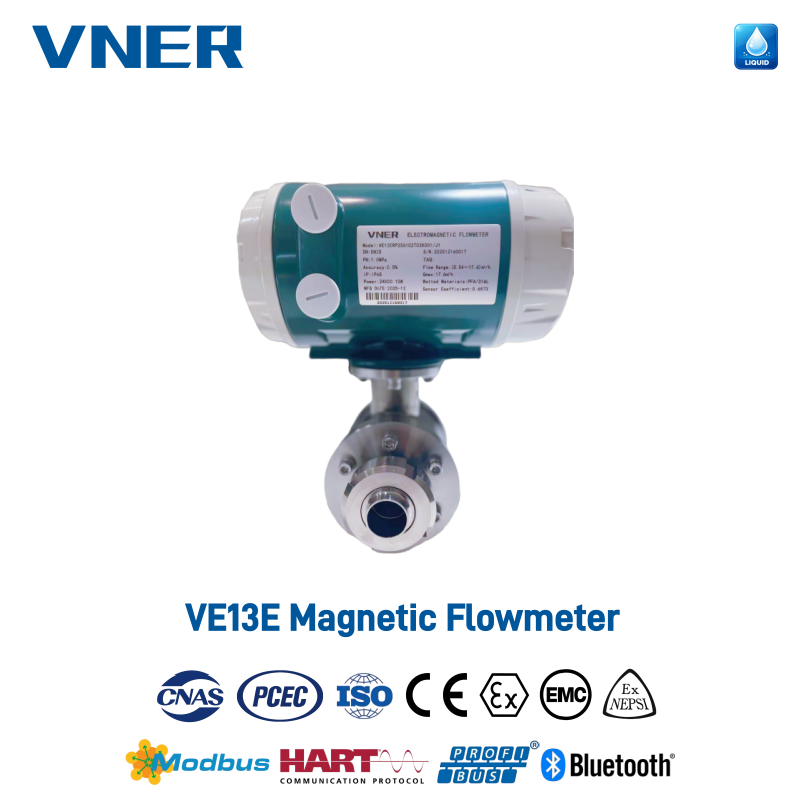

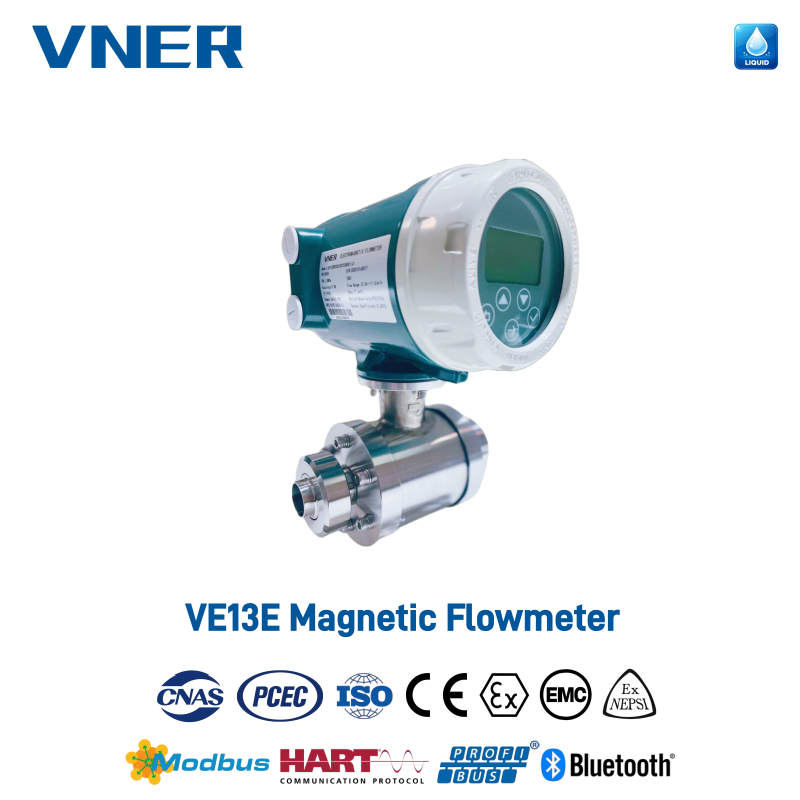

The VE13 Hygienic Electromagnetic Flowmeter is a compact, small-bore magmeter designed for the measurement of electrically conductive liquids in applications where stainless-steel construction and easy-to-clean connections are required.
Operating on Faradayʼs law of electromagnetic induction, VE13 generates a magnetic field across the measuring tube. As conductive liquid passes through this field, an induced voltage proportional to flow velocity is picked up by electrodes and converted into volumetric flow.
With no moving or intrusive parts and an unobstructed bore, VE13 introduces virtually no additional pressure loss, and its measurement is largely independent of pressure, temperature, density and viscosity, provided the medium conductivity is within the specified range. A microprocessor-based converter with modern excitation technology ensures stable, repeatable performance even under demanding process conditions.
| Item | Description |
| Measuring principle | Electromagnetic, based on Faraday’s law |
| Product type | Compact hygienic / small-bore electromagnetic flowmeter |
| Measured media | Conductive liquids and slurries (e.g. water, beverages, viscous liquids) |
| Accuracy class | ±0.5 % of rate |
| Repeatability | Typically 0.16 % of rate |
| Flow velocity range | 0.3...10 m/s |
| Nominal diameters | DN10...DN125 (approx. 3/8"...5") |
| Process connections | Threaded and Tri-Clamp (sanitary clamp) |
| Connection standards | DIN; ANSI/ASME |
| Nominal pressure | 1 MPa |
| Medium temperature range | -40...+200 °C (depending on configuration) |
| Protection class | IP65 |
| Body materials | Stainless steel 304 / 316 / 316L |
| Lining materials | FEP, PFA |
| Electrode materials | 316L stainless steel, Hastelloy, Titanium |
| Output signals | 4-20 mA + pulse |
| Digital communication | Modbus (RS-485), HART |
| Explosion protection | Ex d (explosion-proof versions available) |
| Electrical connection | M20*1.5; 1/2"-14 NPT |
| Power supply | 24 V DC or 220 V AC |
| Certifications | ISO, CE, ATEX (model-/region-dependent) |
| Category | Specification / Option | Notes |
| Hydraulic design | Full-bore, no moving parts, no internal obstructions | Practically no additional pressure loss; reduced risk of clogging |
| Process independence | Measurement largely independent of pressure, temperature, density and viscosity | Within specified conductivity and installation conditions |
| Signal processing | Microprocessor-based electronics with programmable low-frequency rectangular excitation | High stability, good noise immunity, low power consumption |
| Electronics | SMD components and SMT technology | High reliability and compact construction |
| Outputs | 4-20 mA and pulse output | For integration into PLC, DCS, batch controllers and totalizers |
| Communication | Modbus RS-485, HART | Remote configuration and diagnostics via control systems |
| Mounting | Compact threaded or Tri-Clamp connection | Suited for skids, small process lines and equipment frames |
| Protection & Ex | IP65; Ex d explosion-proof variants | For industrial and designated hazardous locations |
| Industry | Medium / Service | Typical Use |
| Food & Beverage | Drinking water, beverages, sugar solutions, viscous liquids | Line flow measurement, dosing and transfer in process and utility lines (subject to material and cleaning compatibility) |
| Chemical & General Industry | Conductive chemical raw materials, additives, viscous liquids | Dosing, blending and transfer in small-bore process lines |
| Utilities / OEM Skids | Cooling water, wash water, cleaning solutions | Integration into package units, treatment skids and compact equipment where space is limited |
