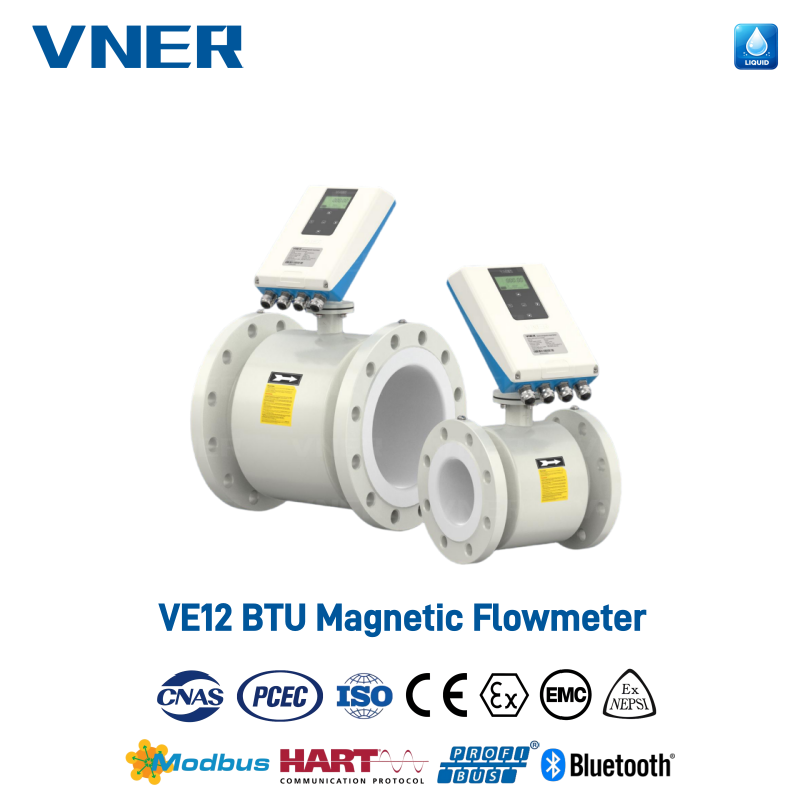

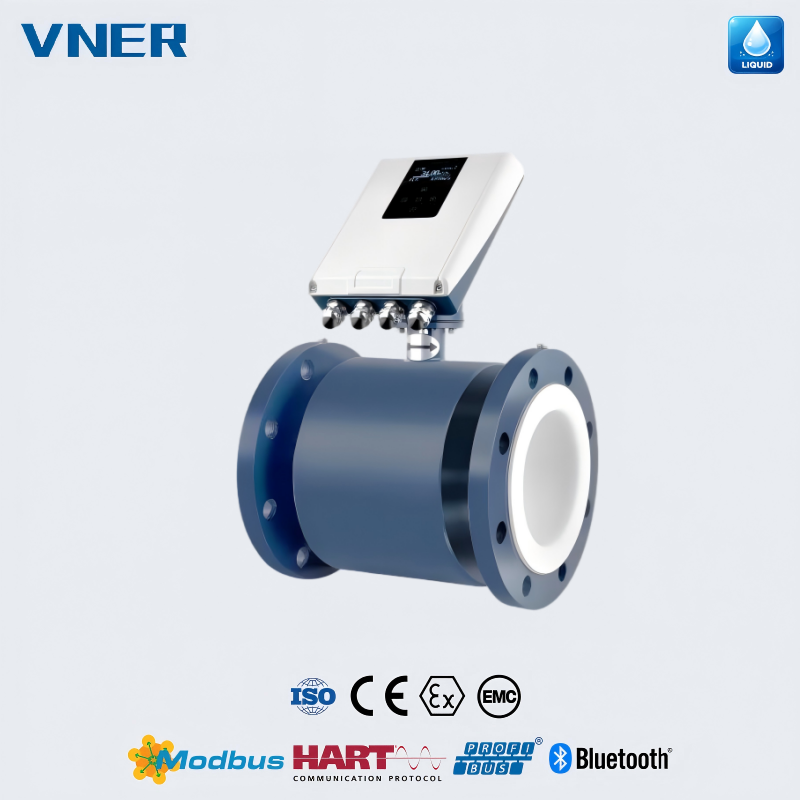

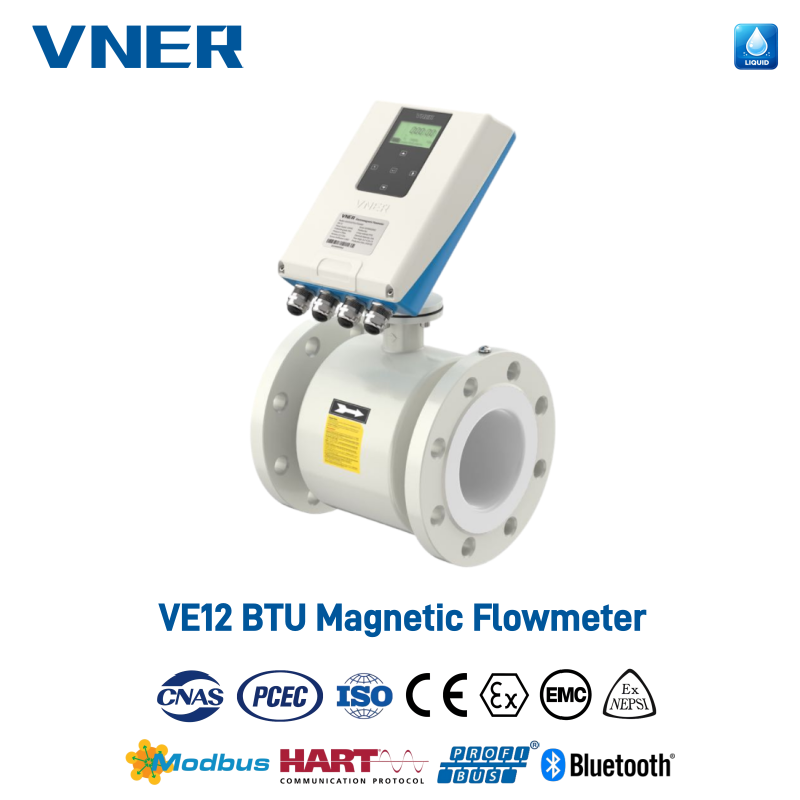

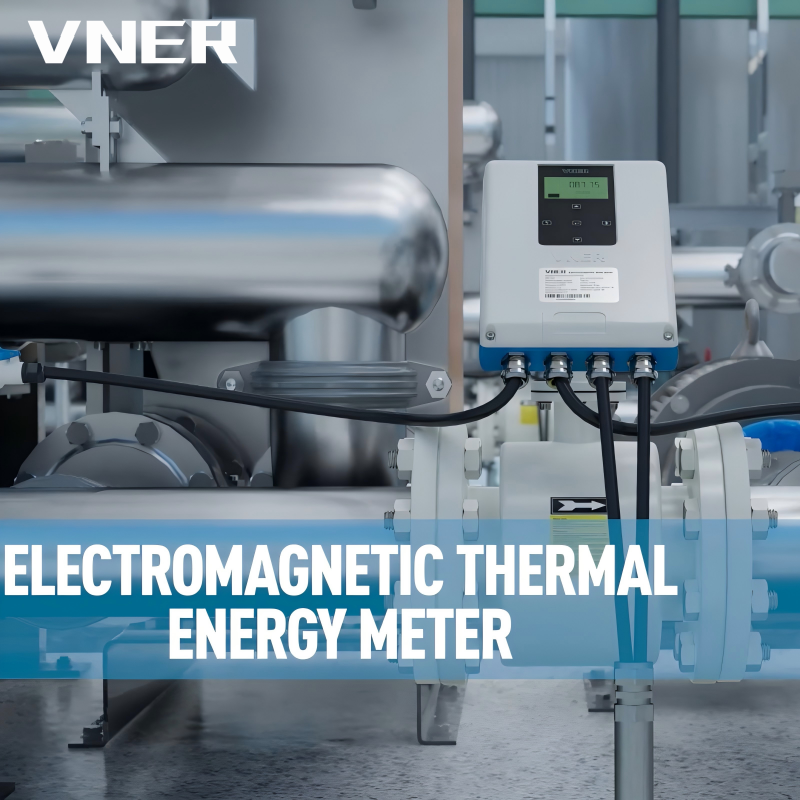

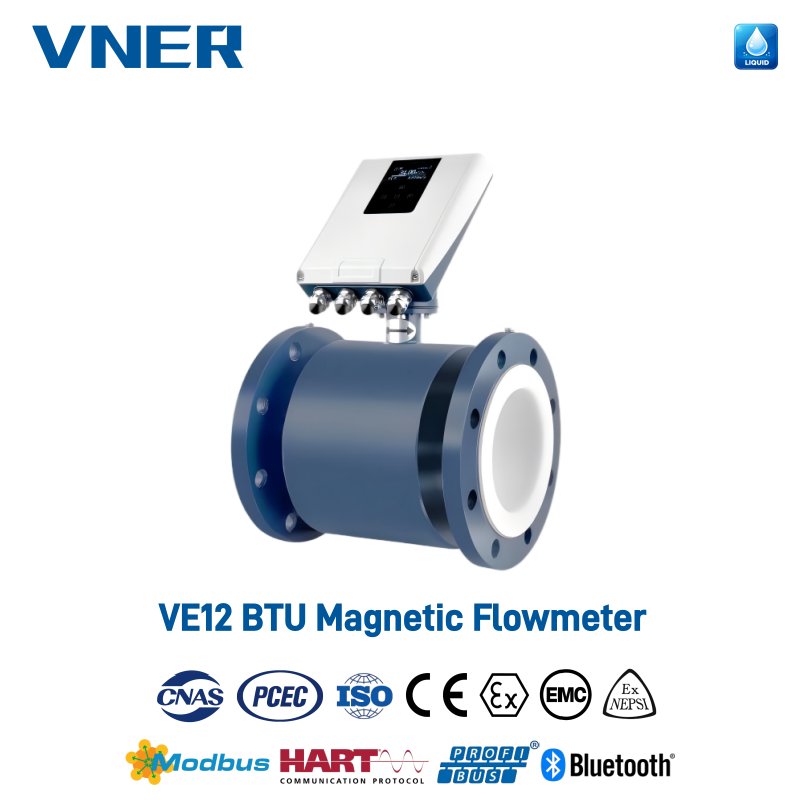

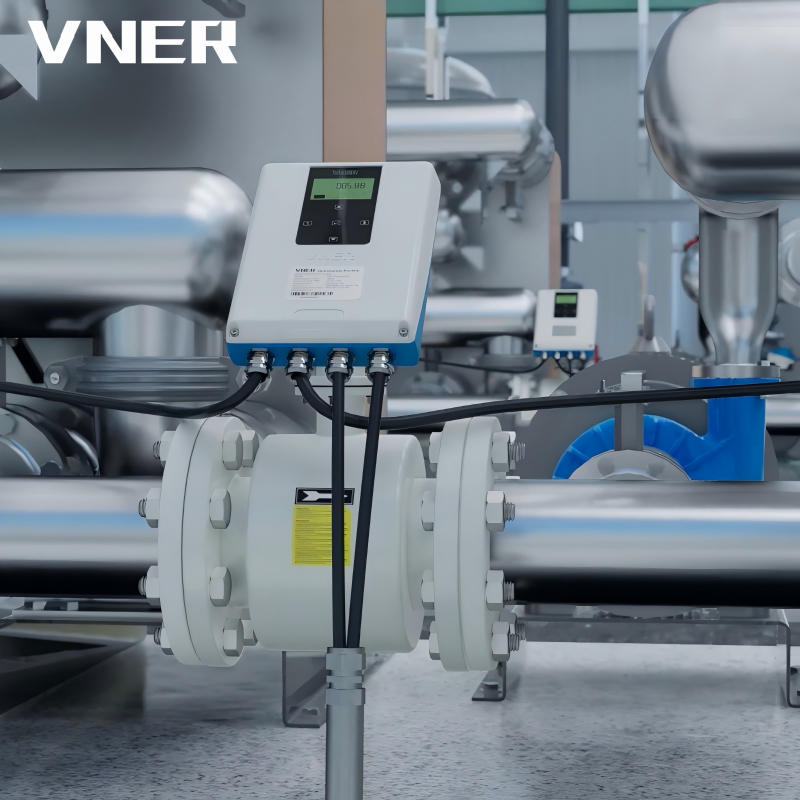

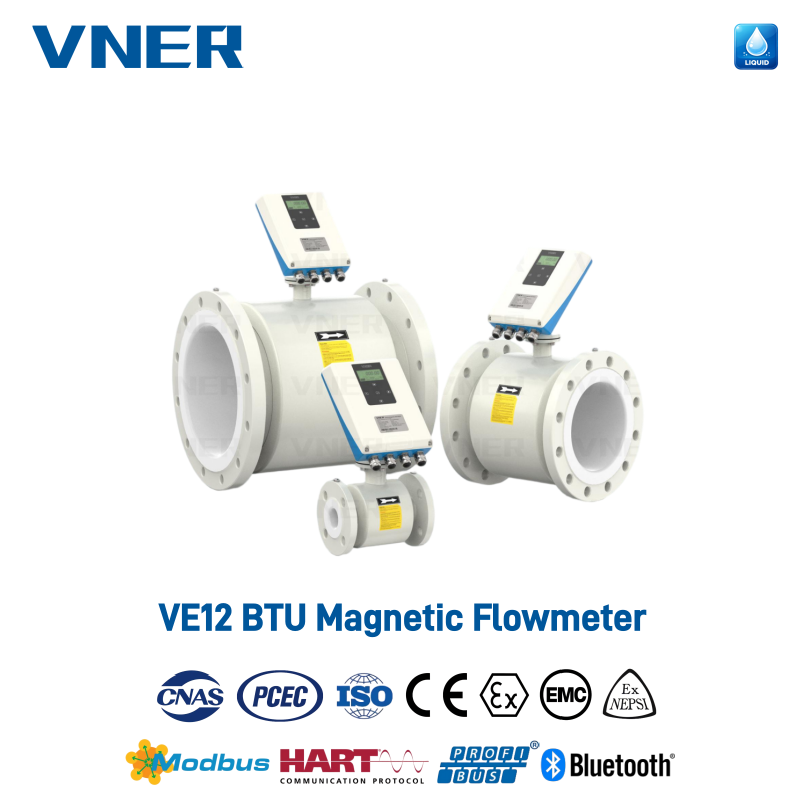

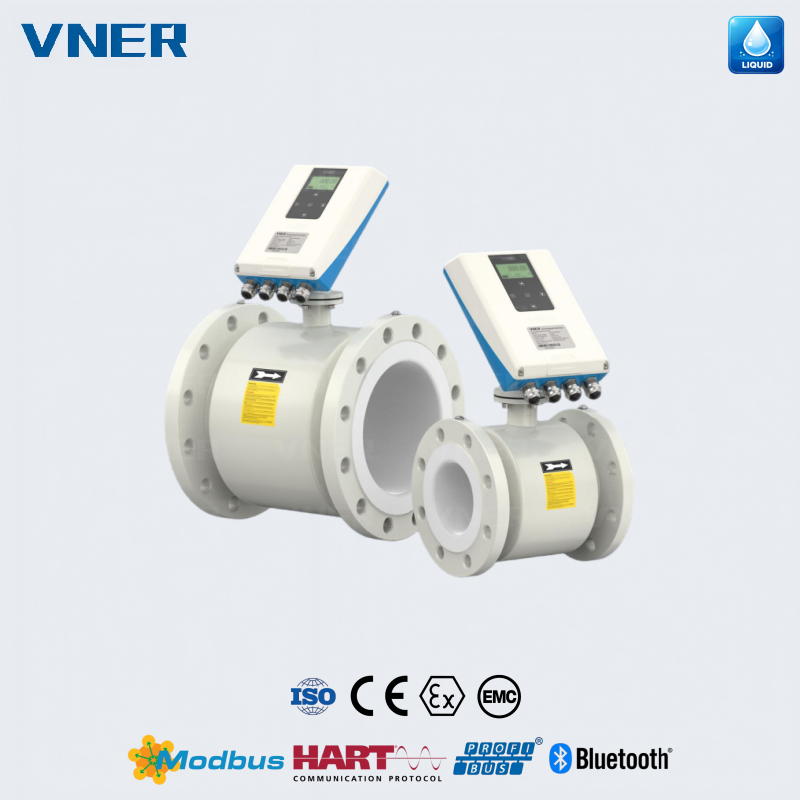

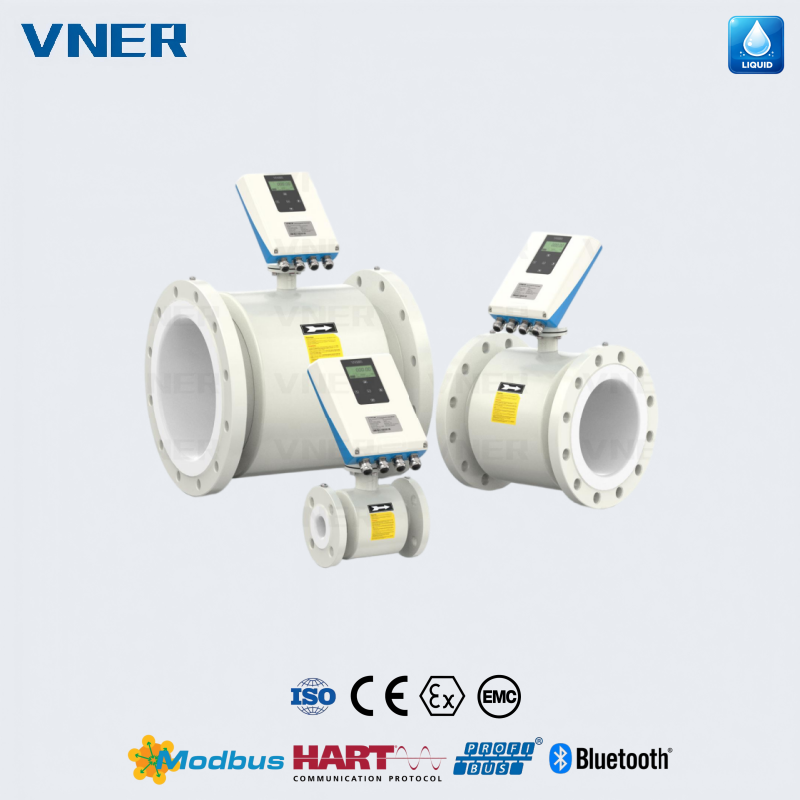

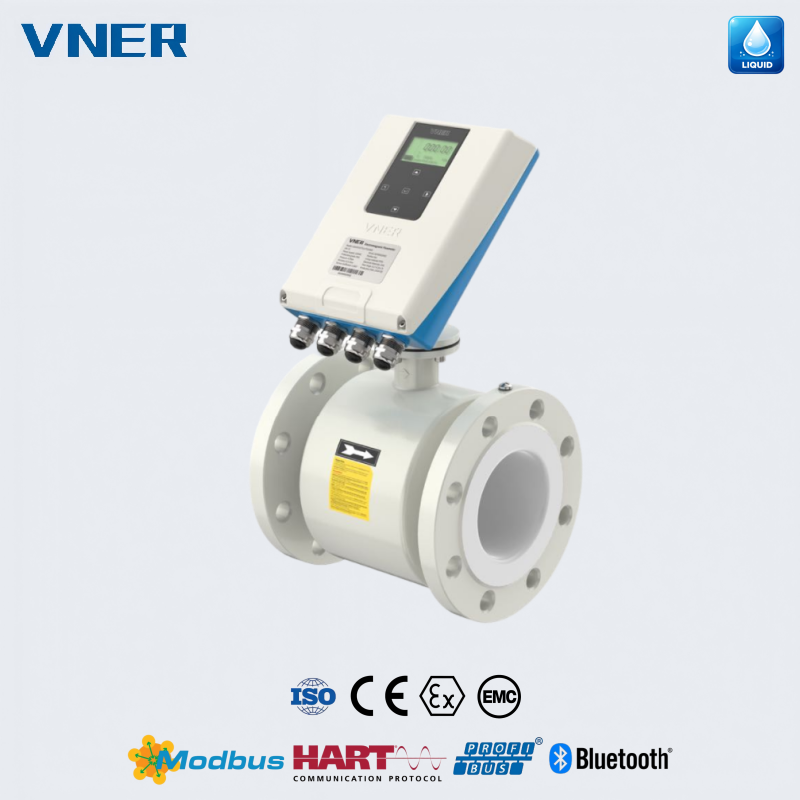

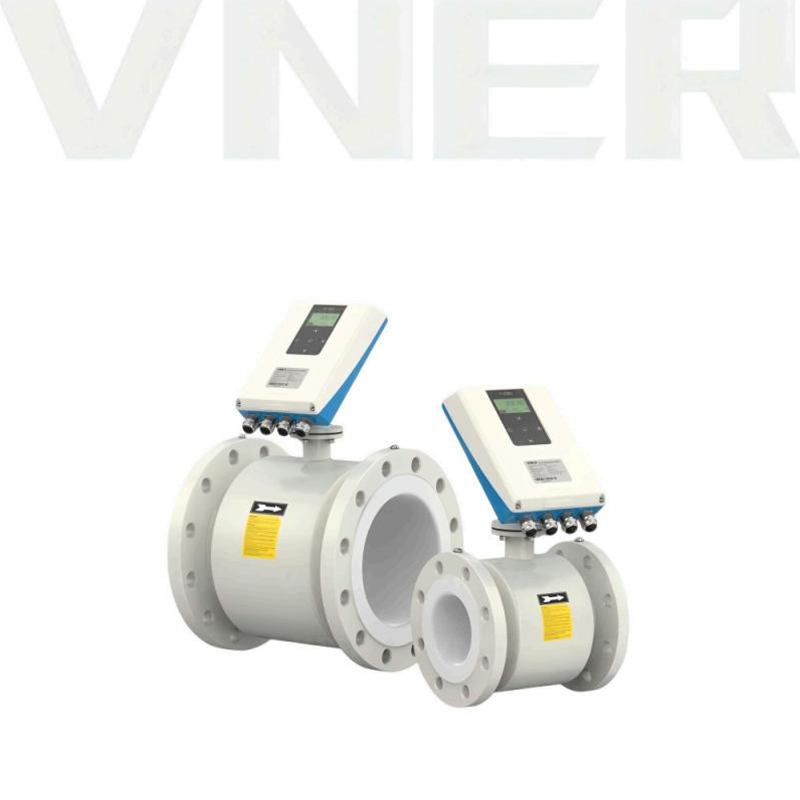

The VE12 Series Electromagnetic Heat Meter is a high-stability flow sensor designed for thermal energy metering in heating and cooling systems.
Based on Faradayʼs law of electromagnetic induction, VE12 measures the volumetric flow of electrically conductive liquids such as hot water, chilled water or heat transfer fluids. With no moving parts and an unobstructed bore, the meter offers negligible pressure loss, long service life, and measurement that is largely independent of pressure, temperature, density and viscosity.

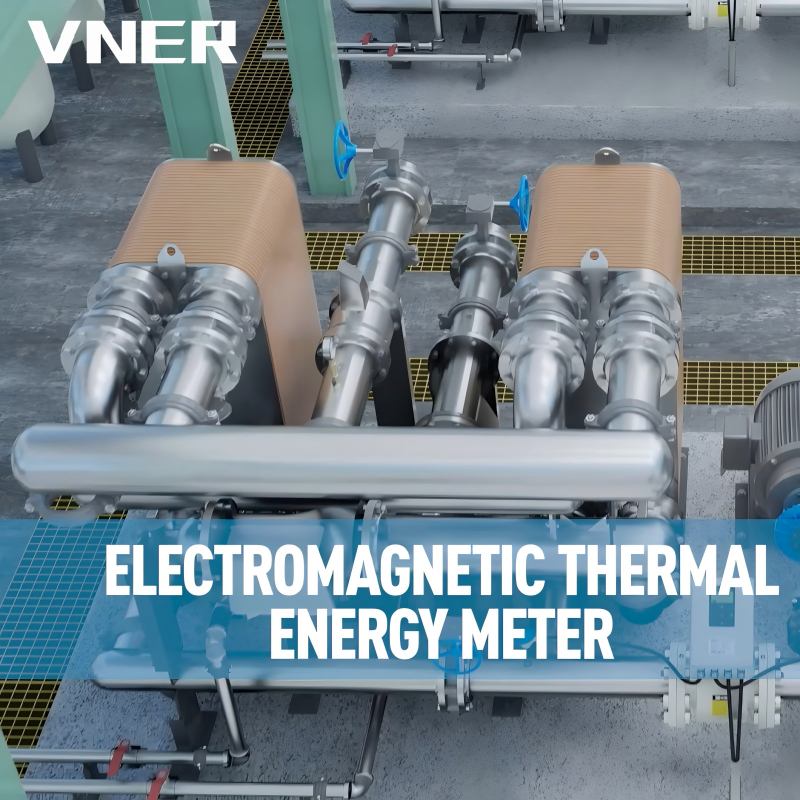

When combined with paired supply/return temperature sensors and a dedicated heat calculator, VE12 provides the flow measurement component of a complete thermal energy metering solution for district heating, building HVAC and industrial energy management.
| Item | Description |
| Measuring principle | Electromagnetic, based on Faraday’s law |
| Product type | Electromagnetic flowmeter for heat metering (flow sensor in heat meter systems) |
| Measured fluid | Electrically conductive liquids and slurries (e.g. hot/chilled water, glycol mixtures) |
| Accuracy class | ±0.5 % of rate (flow) |
| Repeatability | Typically 0.16 % of rate |
| Flow velocity range | 0.3...10 m/s |
| Nominal diameters | DN6...DN2000 (approx. 1/8"...80") |
| Process connection | Flanged, to DIN and ANSI/ASME |
| Nominal pressure | 0.6...4 MPa; ANSI 150 / ANSI 600 (model-dependent) |
| Medium temperature range | -40...+200 °C (lining- and design-dependent) |
| Flow direction | Bidirectional (forward / reverse) |
| Lining materials | PTFE, FEP, PFA |
| Electrode materials | 316L stainless steel, Hastelloy, Titanium |
| Body materials | Stainless steel 304 / 316 |
| Protection class | IP65 / IP67 / IP68 (version-dependent) |
| Power supply | 24 V DC or 220 V AC |
| Outputs | 4-20 mA; pulse/totalizer; Bluetooth interface (option) |
| Digital communication | Modbus RS-485 |
| Electrical connection | M20×1.5 or 1/2"-14 NPT |
| Certifications | ISO, CE, ATEX (model-/region-dependent) |
| Item | Description |
| Measuring principle | Electromagnetic, based on Faraday’s law |
| Product type | Electromagnetic flowmeter for heat metering (flow sensor in heat meter systems) |
| Measured fluid | Electrically conductive liquids and slurries (e.g. hot/chilled water, glycol mixtures) |
| Accuracy class | ±0.5 % of rate (flow) |
| Repeatability | Typically 0.16 % of rate |
| Flow velocity range | 0.3...10 m/s |
| Nominal diameters | DN6...DN2000 (approx. 1/8"...80") |
| Process connection | Flanged, to DIN and ANSI/ASME |
| Nominal pressure | 0.6...4 MPa; ANSI 150 / ANSI 600 (model-dependent) |
| Medium temperature range | -40...+200 °C (lining- and design-dependent) |
| Flow direction | Bidirectional (forward / reverse) |
| Lining materials | PTFE, FEP, PFA |
| Electrode materials | 316L stainless steel, Hastelloy, Titanium |
| Body materials | Stainless steel 304 / 316 |
| Protection class | IP65 / IP67 / IP68 (version-dependent) |
| Power supply | 24 V DC or 220 V AC |
| Outputs | 4-20 mA; pulse/totalizer; Bluetooth interface (option) |
| Digital communication | Modbus RS-485 |
| Electrical connection | M20×1.5 or 1/2"-14 NPT |
| Certifications | ISO, CE, ATEX (model-/region-dependent) |
| Application Area | Medium / Service | Typical Use |
| District Heating | Hot water, heat transfer water | Heat metering at building inlets, substation measurement, energy balancing between supplier and consumer |
| District Cooling | Chilled water circuits | Thermal energy metering in central cooling plants and consumer stations |
| Building HVAC | Hot/chilled water in AHU and FCU loops | Floor-by-floor or tenant energy allocation, efficiency monitoring of HVAC systems |
| Commercial & Public Buildings | Heating and cooling distribution networks | Cost allocation, energy performance tracking in offices, hotels, hospitals, campuses |
| Industrial Energy Management | Process heating/cooling water, glycol mixtures | Monitoring energy consumption of heat exchangers, process heaters and cooling systems |
| Utility & Plant Networks | Boiler and chiller circuits, secondary loops | Flow and energy balancing in central utility plants and distribution networks |
As China VE12 Electromagnetic Heat Meter (BTU) Manufacturers and VE12 Electromagnetic Heat Meter (BTU) Factory, we are renowned for manufacturing professional and high-precision industrial instruments. Our expertise lies in providing unparalleled flow measurement resources, backed by over 12 years of experience solving complex applications.
Our precision flow metering devices are used by a diverse range of users, ranging from major oil and gas companies to photovoltaic providers, pharmaceutical manufacturers, and municipal services. We continuously contribute to the development of flow measurement in the domestic energy and chemical industries due to our expertise in measuring variable component gases and peculiar mediums.
