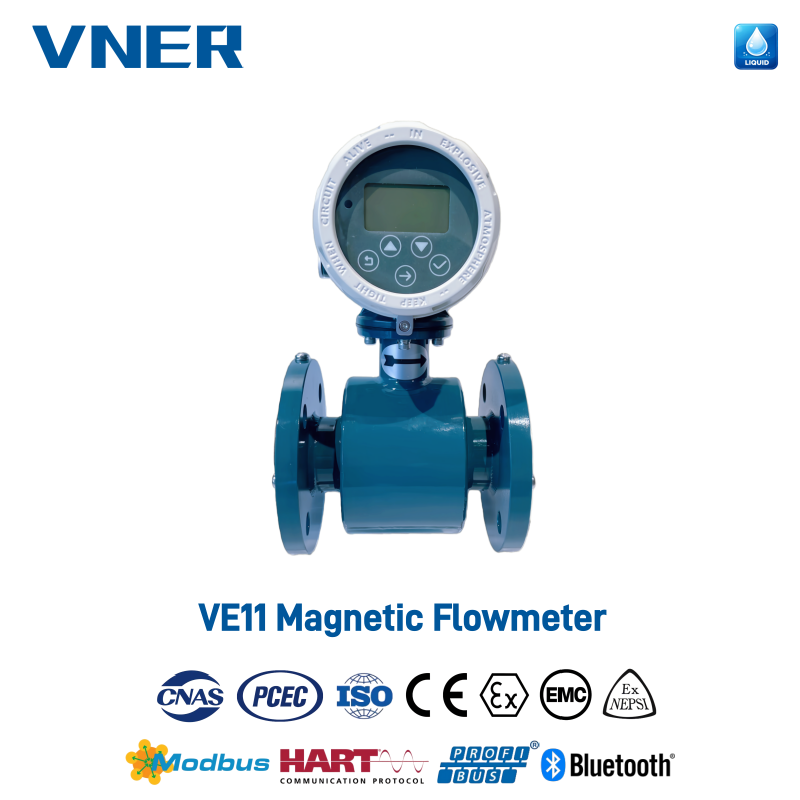

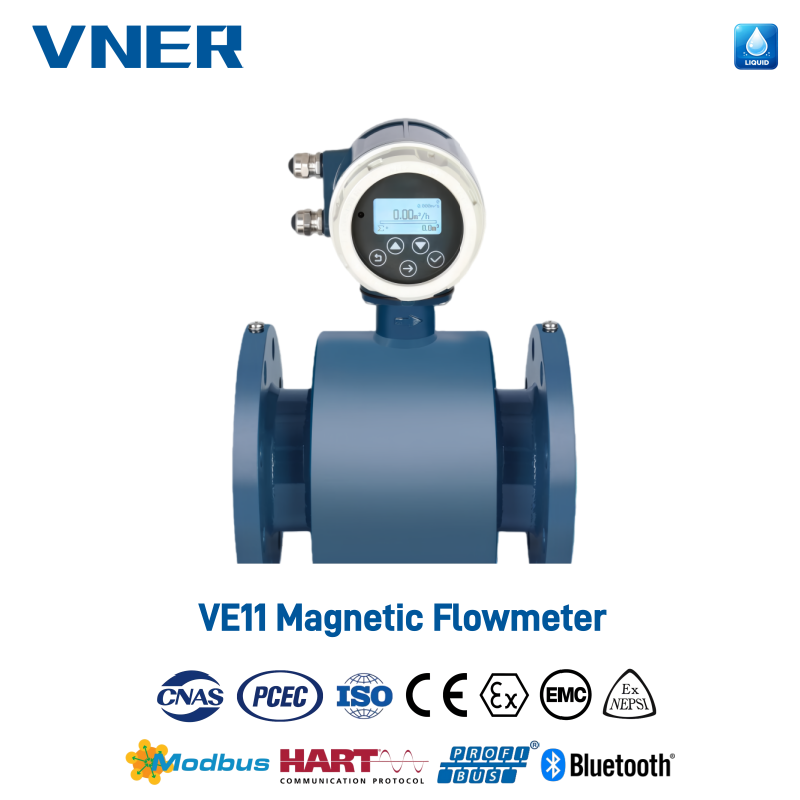

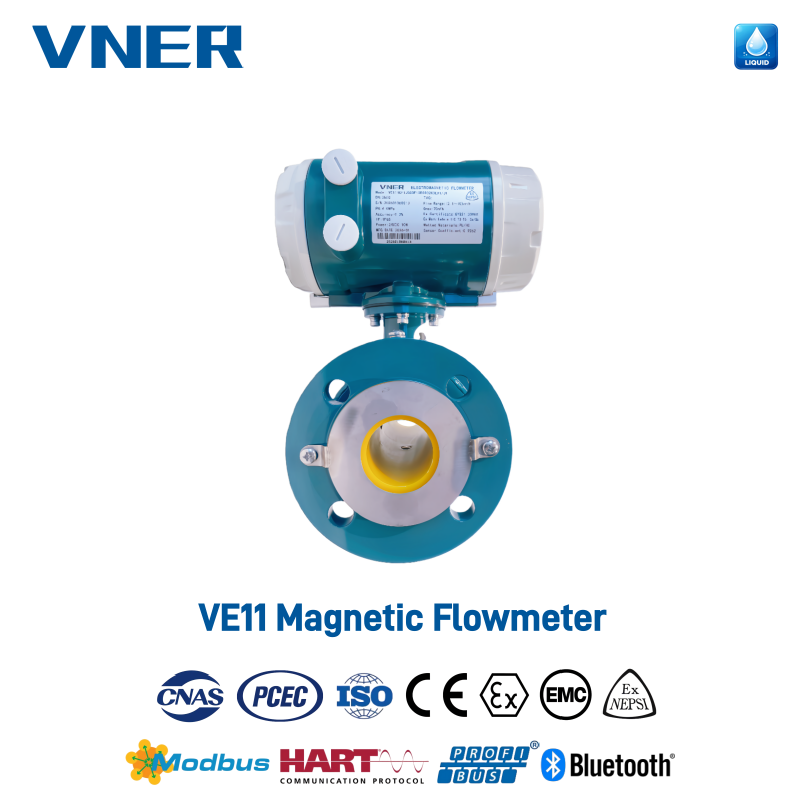

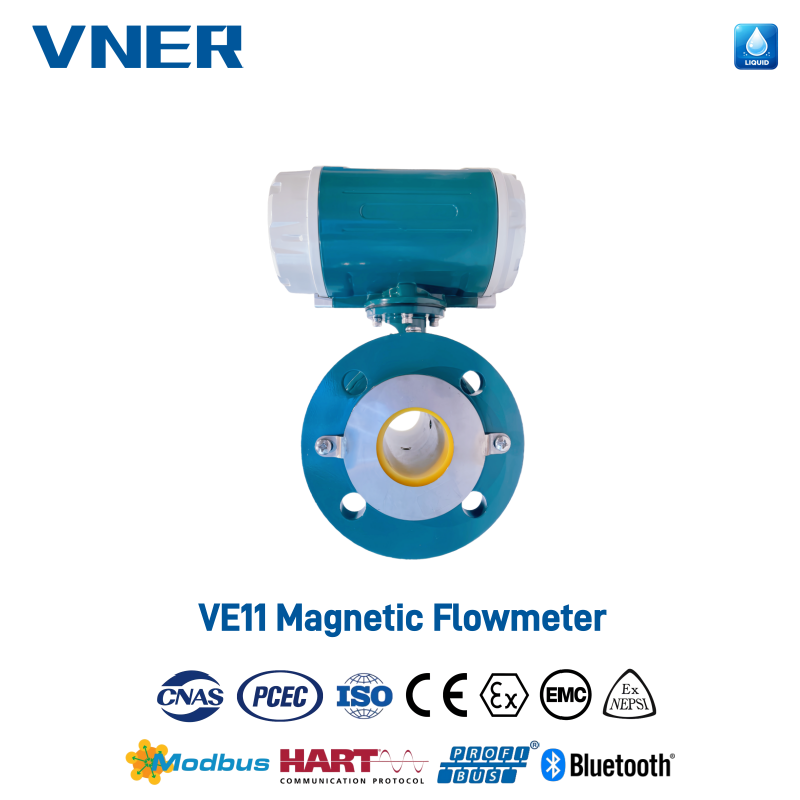

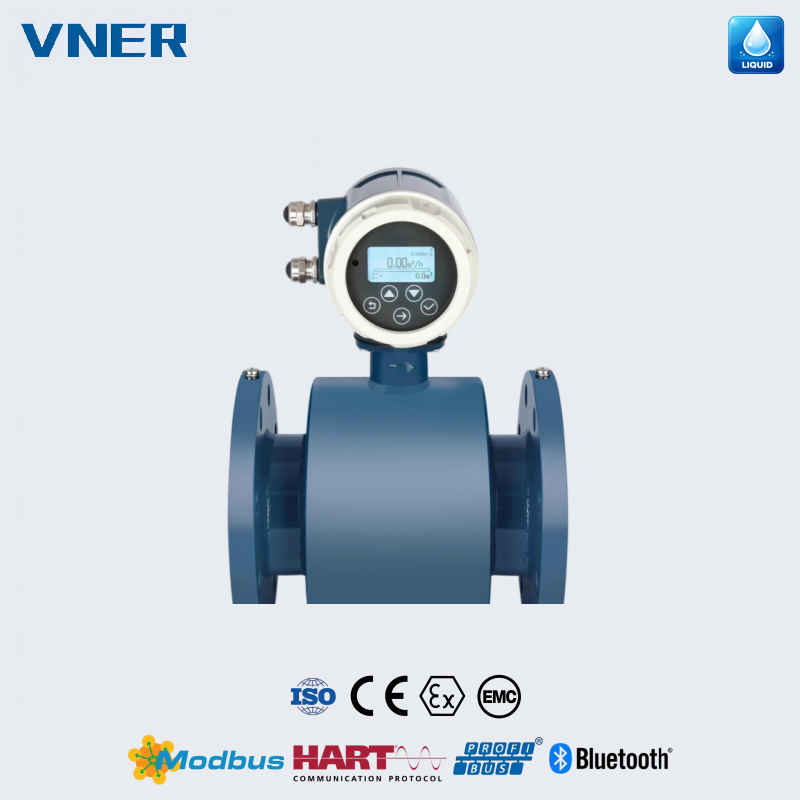

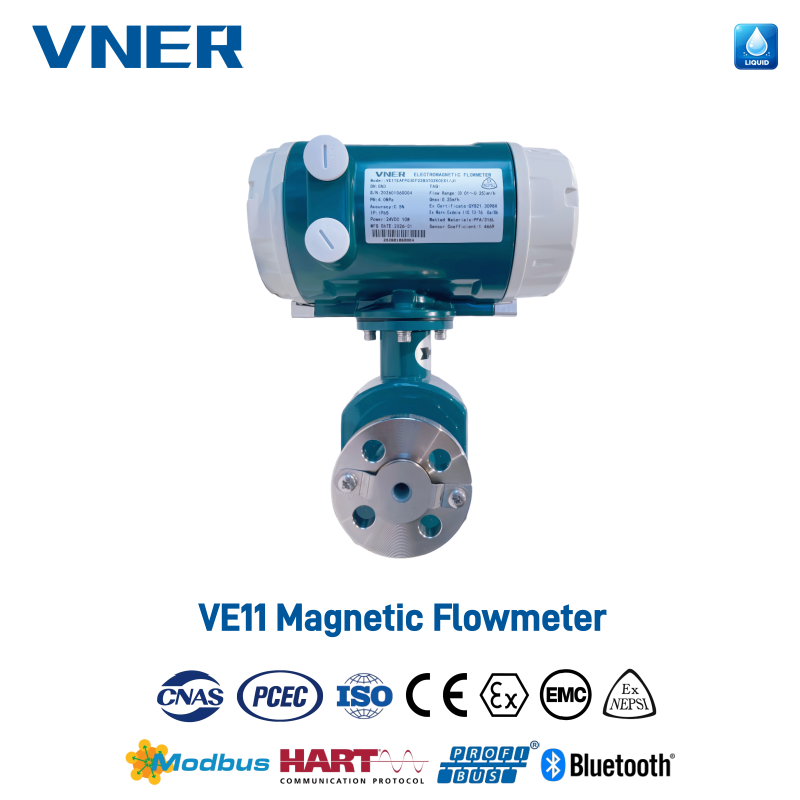

The VE11 Series is VNERʼs high-accuracy, full-bore electromagnetic flowmeter (magmeter) for conductive liquids and slurries.
Based on Faradayʼs law of electromagnetic induction, VE11 generates a magnetic field across the measuring tube; as the conductive medium passes through, an induced voltage proportional to flow velocity is detected by electrodes and converted into volumetric flow.
With no moving parts and an unobstructed measuring bore, VE11 delivers long-term stable performance that is largely independent of pressure, temperature, density and viscosity, making it ideally suited for critical process and utility measurement in water, wastewater, chemical, energy and general industrial applications.
| Item | Description |
| Measuring principle | Electromagnetic, based on Faraday’s law |
| Measured fluid | Electrically conductive liquids and slurries (typ. ≥ 20 μS/cm; low-conductivity options ≥ 1 μS/cm) |
| Accuracy classes | ±0.2 %, ±0.3 %, ±0.5 % of rate (model/option dependent) |
| Repeatability | Typically 0.07...0.16 % of rate |
| Velocity range | 0.3...10 m/s |
| Nominal diameters | DN3...DN2000 (approx. 1/8"...80") |
| Process temperature | -40...+200 °C (depending on lining and design) |
| Nominal pressure | 0.6...10 MPa, ANSI 150...600 (flange-class dependent) |
| Flow direction | Bidirectional (forward / reverse) |
| Lining materials | ETFE, PTFE, PPU, FEP, PFA, ceramic (model-dependent) |
| Electrode materials | 316L, Hastelloy B/C, Titanium, Tantalum, Platinum-iridium, Tungsten Carbide |
| Body materials | Carbon steel, 304, 316, 316L stainless steel |
| Connection type | Flanged, to DIN and ANSI/ASME standards |
| Ingress protection | IP65 / IP67 / IP68 (depending on version) |
| Power supply | 24 V DC or 220 V AC (22...245 V options available) |
| Certifications | ISO, CE, ATEX (model-/region-dependent) |
| Category | Specification / Option | Notes |
| Signal processing | Digital signal processing with programmable low-frequency rectangular excitation | High stability, low noise, low power consumption |
| Outputs | 4-20 mA and pulse/frequency | For DCS/PLC integration, totalizing and batch control |
| Digital communication | Modbus (RS-485), HART; Profibus on selected models | Remote configuration and diagnostics |
| Flow profile sensitivity | Full-bore design with no moving parts | Virtually independent of pressure, temperature, density and viscosity when installed correctly |
| Pressure loss | No internal obstructions | Negligible additional pressure drop |

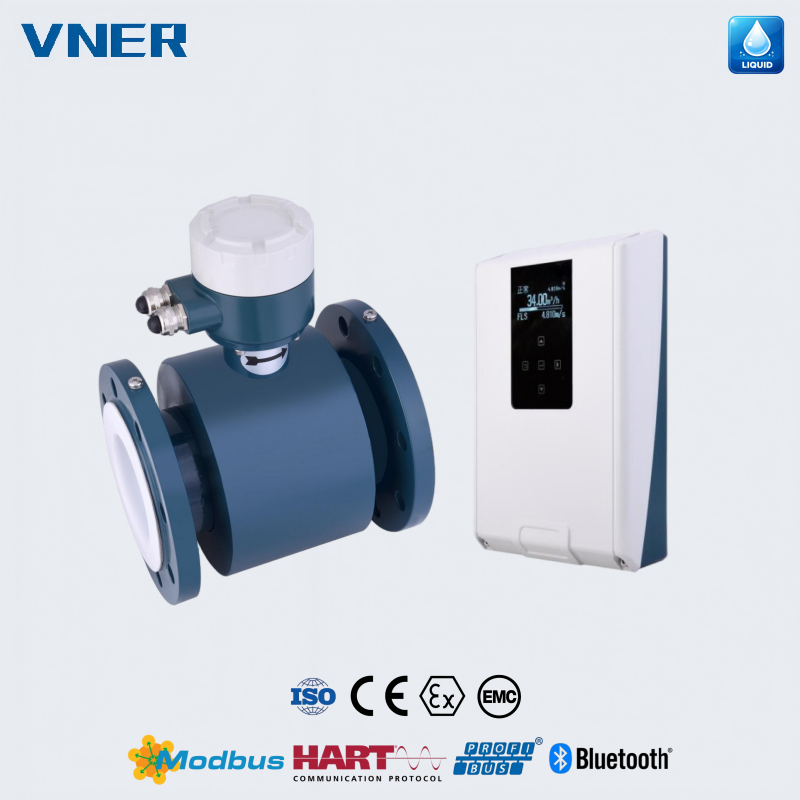

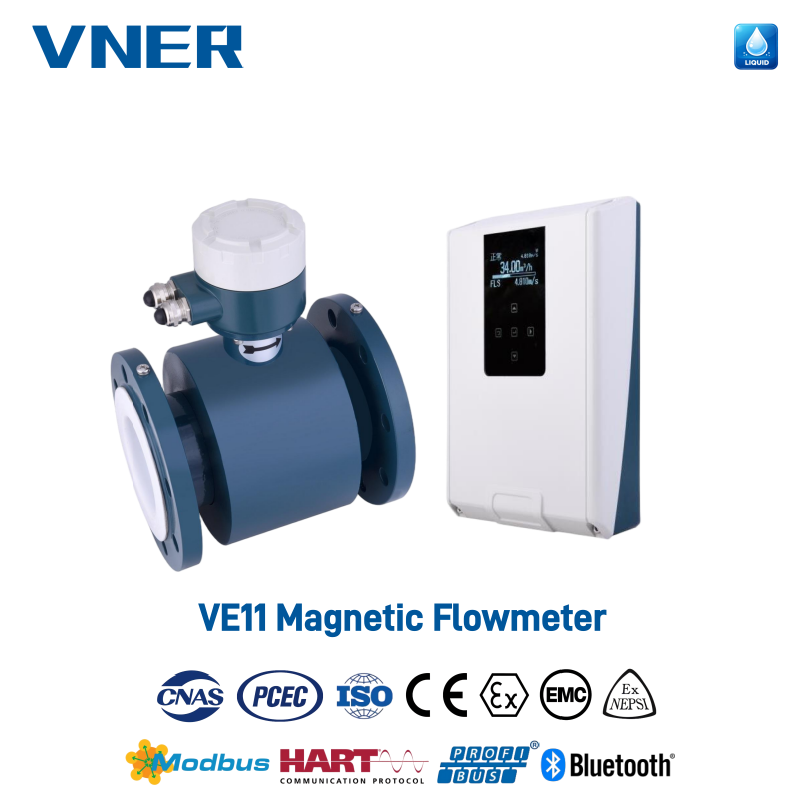

| Mounting | Integral (compact) or remote (split) converter | Flexible for high-temperature or vibration-prone locations |
| Protection & Ex | IP65/67/68; Ex d explosion-proof variants | For harsh and hazardous areas (refer to certificates) |
| Diagnostics | Built-in self-diagnostics for coil, electrode and signal quality | Supports fast troubleshooting and preventive maintenance |
| Industry | Medium / Service | Typical Use |
| Water & Wastewater | Raw water, drinking water, wastewater, sludge | Transmission mains, plant process lines, district metering, sludge flow monitoring |
| Chemical & Petrochemical | Acids, alkalis, brines, process liquids, conductive slurries | Reactor feed, circulation loops, dosing and neutralization systems |
| Oil & Gas / Refining | Produced water, injection water, conductive process liquids | Produced- and injection-water metering, utility water networks |
| Power & Energy | Cooling water, boiler feed water, condensate | Boiler and turbine water circuits, condensate return, make-up water |
| Pulp & Paper | Stock suspensions, white/black liquor, bleaching liquor | Process and liquor flows, chemical dosing and consumption monitoring |
| General Industry | Conductive process liquids and slurries | Plant utilities, CIP/cleaning solutions (where compatible), general process measurement |
As China VE11 High-Precision Electromagnetic Flowmeter Manufacturers and VE11 High-Precision Electromagnetic Flowmeter Factory, we are renowned for manufacturing professional and high-precision industrial instruments. Our expertise lies in providing unparalleled flow measurement resources, backed by over 12 years of experience solving complex applications.
Our precision flow metering devices are used by a diverse range of users, ranging from major oil and gas companies to photovoltaic providers, pharmaceutical manufacturers, and municipal services. We continuously contribute to the development of flow measurement in the domestic energy and chemical industries due to our expertise in measuring variable component gases and peculiar mediums.
