Swirl SA80T Series

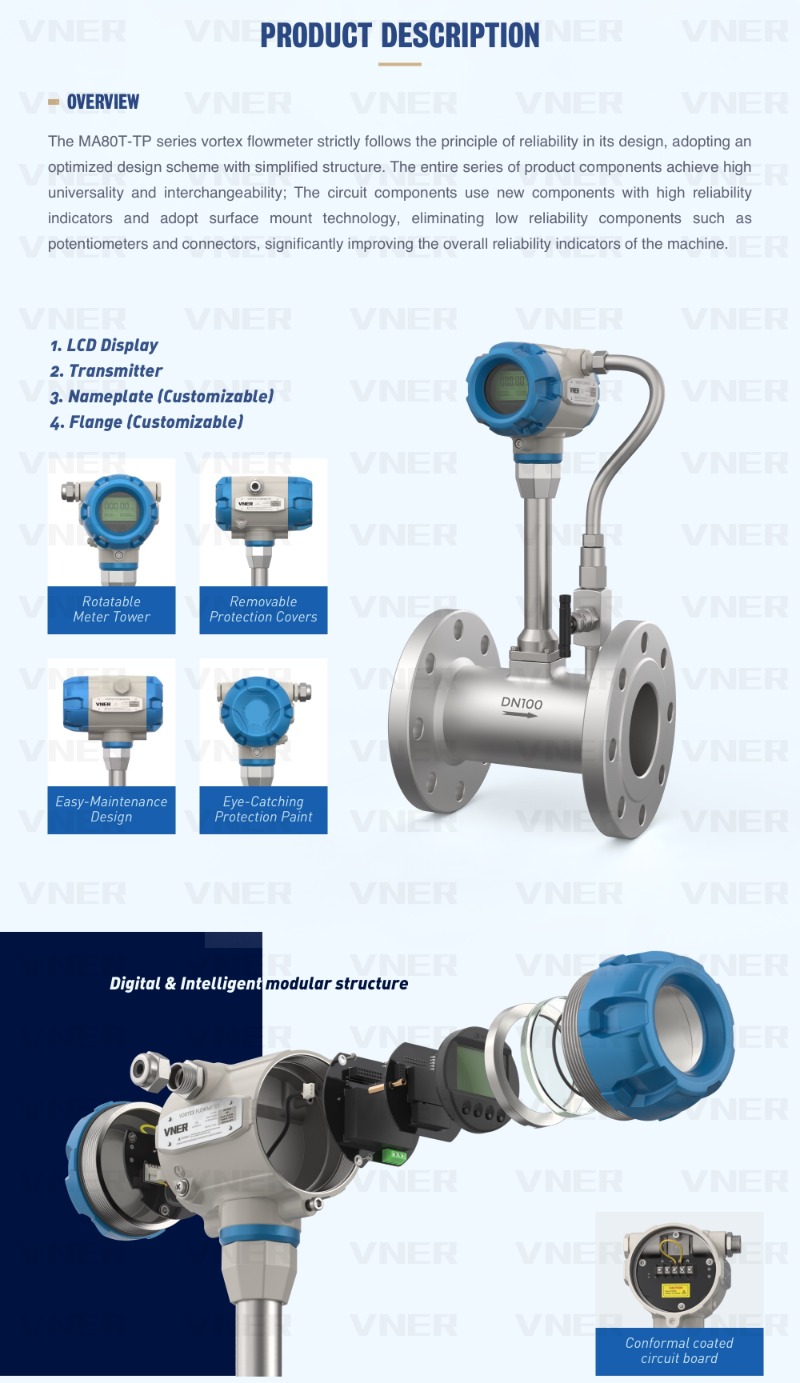

Swirl flow meter is a device renowned for its dependability and versatility, with a simplified structure that facilitates ease of use. This flow meter is equipped with DsP capabilities that reinforce its anti-interference features. The circuit module comprises components that meet high-reliability and durability standards, while the surface mount modular design eliminates low-reliability components such as potentiometers and plugs. These features instil the flowmeter with impeccable stability and accuracy. The SA80T flowmeter is an ideal solution for applications that require a reliable and accurate flow instrument.

• No straight pipe section required for installation, no special requirements for flow field.
• Reinforced piezoelectric probe with high sensitivity.
• Full digital processing, strong anti-interference performance.
• Rangeability:standard model 30:1,enhanced model 100:1.
• No moving parts, accurate measurement of aqueous gases, self-cleaning inner chamber.
• All stainless steel, optional cast aluminium and other special materials, applicable for corrosive mediums.

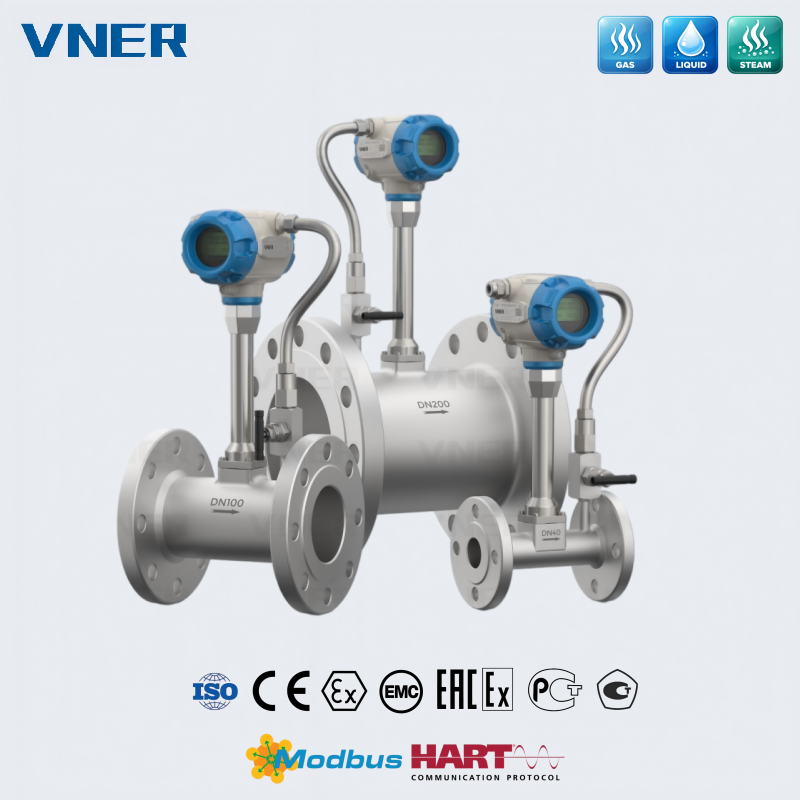

• TP model comes with built-in temperature and pressure sensors, online pressure calibration available.
• Suitable for a wide range of gases including hydrogen.

• Nominal Diameter(mm): DN (15-700).
• Measuring medium: gases, liquids and vapours.
• Process temperature: (-180~+400)°C.
• Accuracy rating (%): Gas +1%, Liquid + 0.5%.
• Repeatability: gas (better than 0.1%), liquid (better than 0.07%).
• Minimum measuring flow rate: 0.5 m/s.
• Output: (4~20)mA, HART communication, RS485 optional.
• Intrinsically safe design & explosion-proof design.

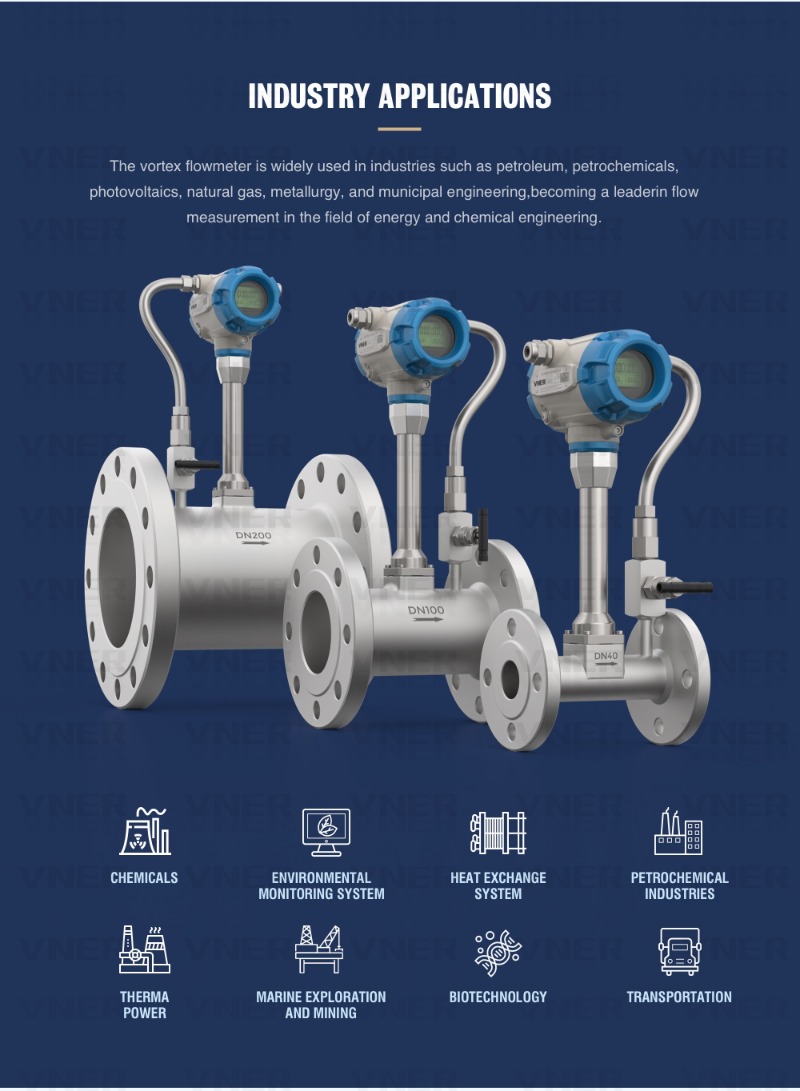

Typical applications: gases (including hydrogen), liquids and vapours
