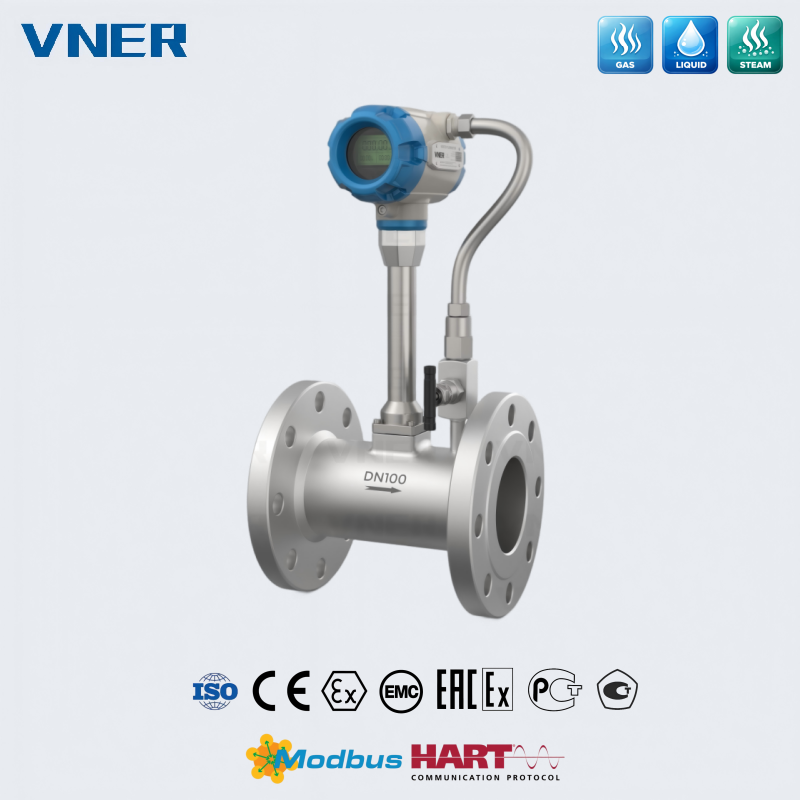

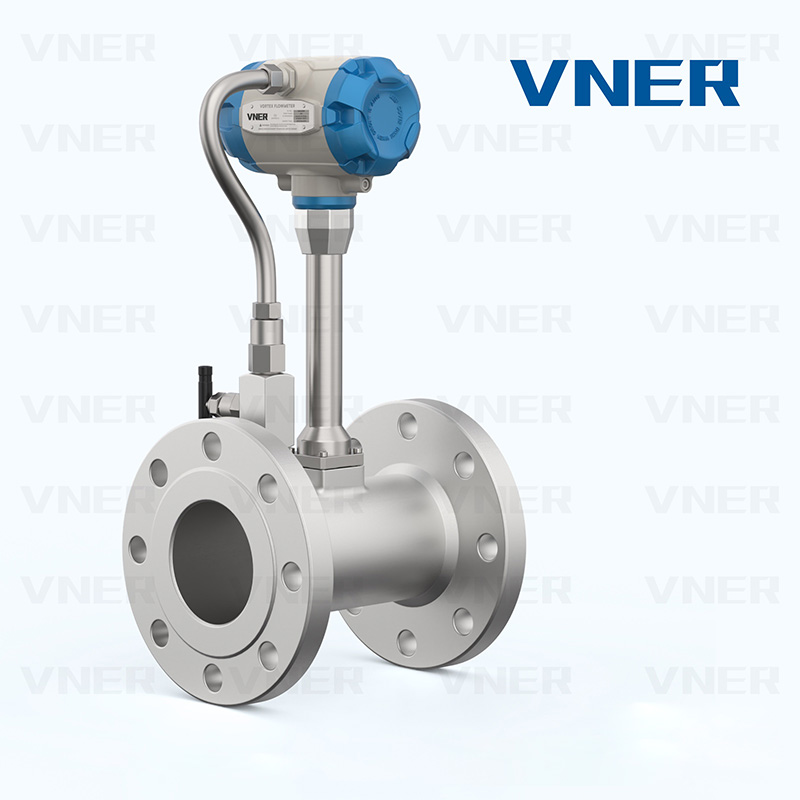

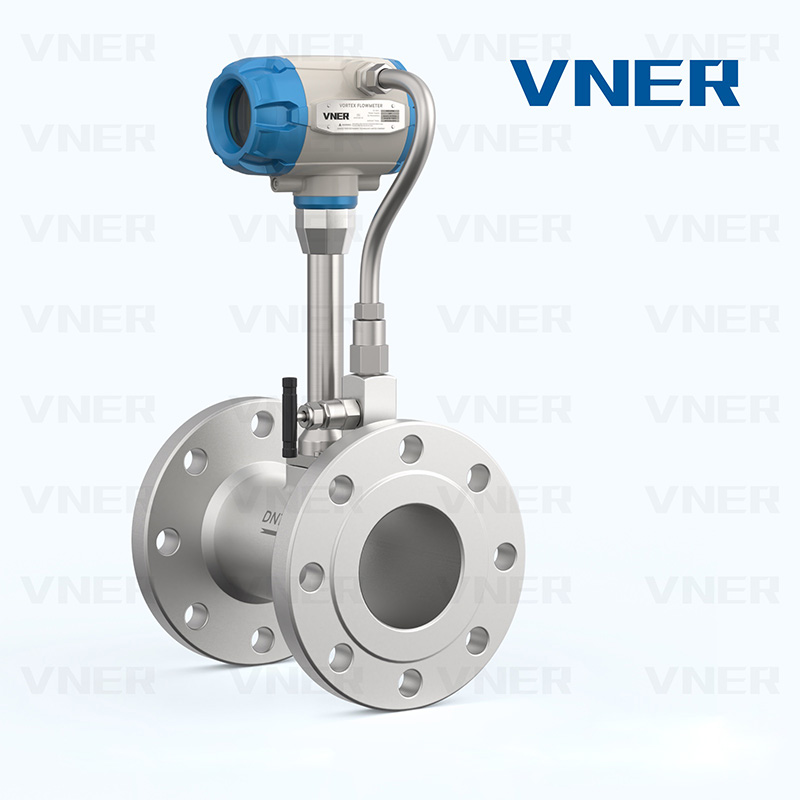

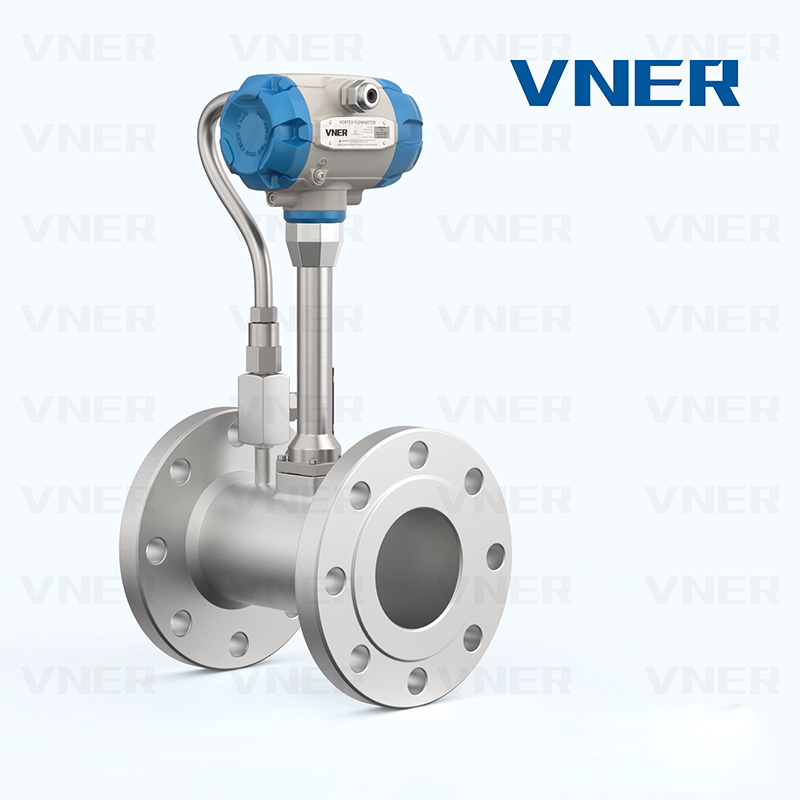

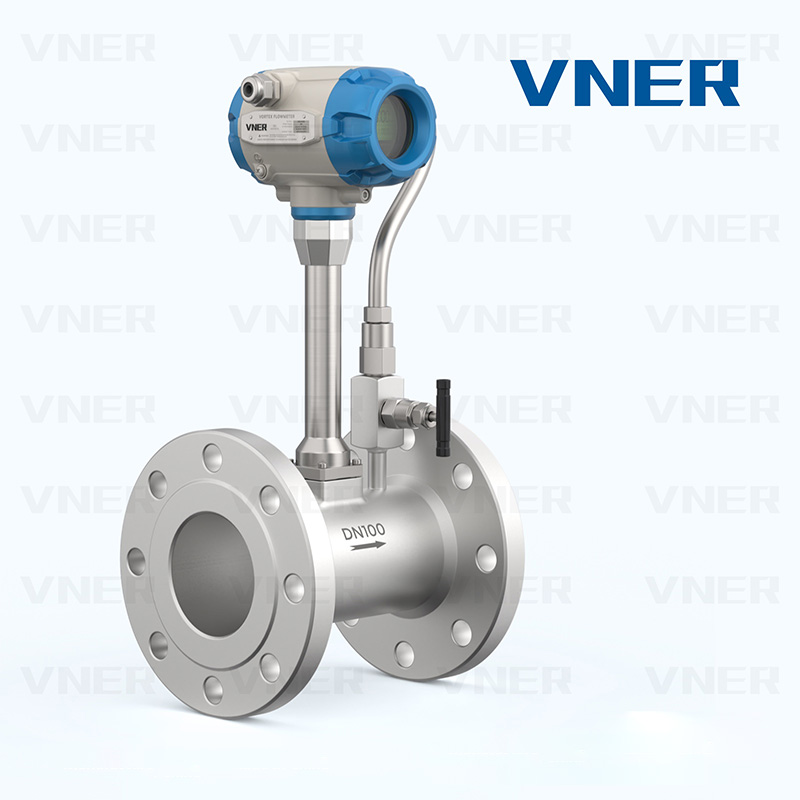

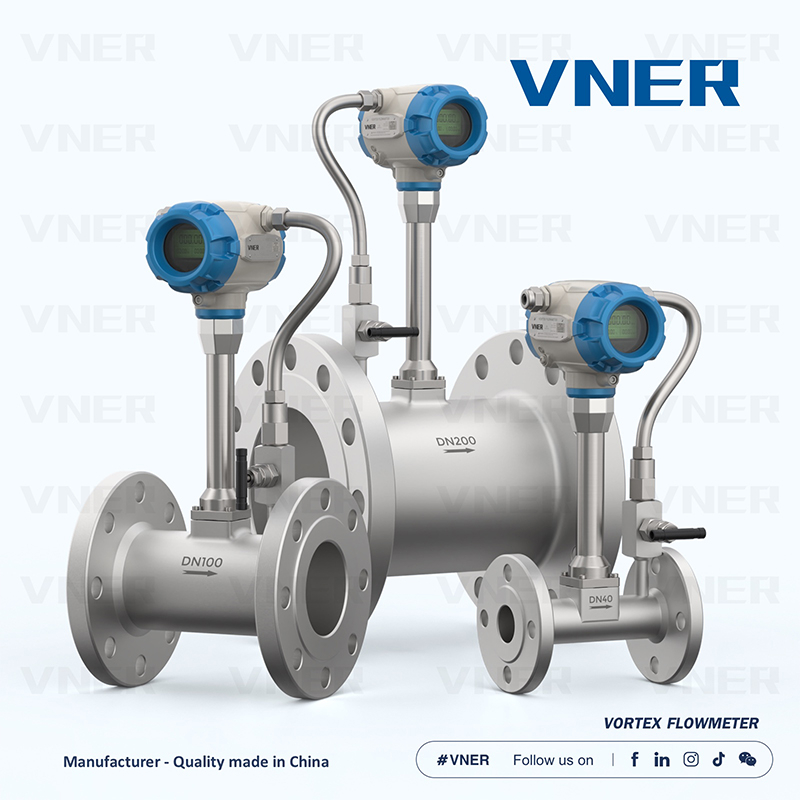

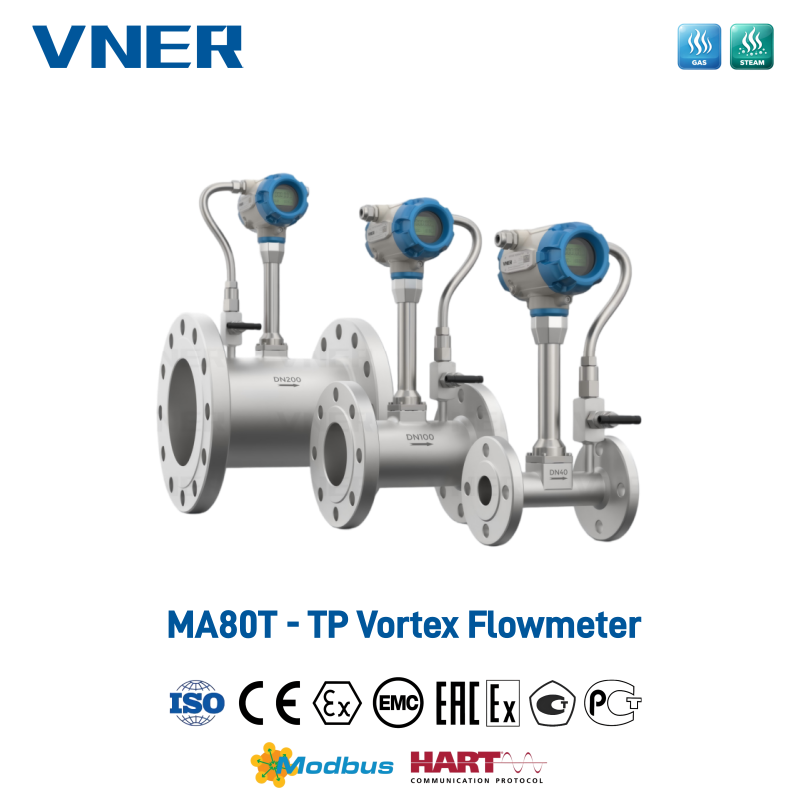

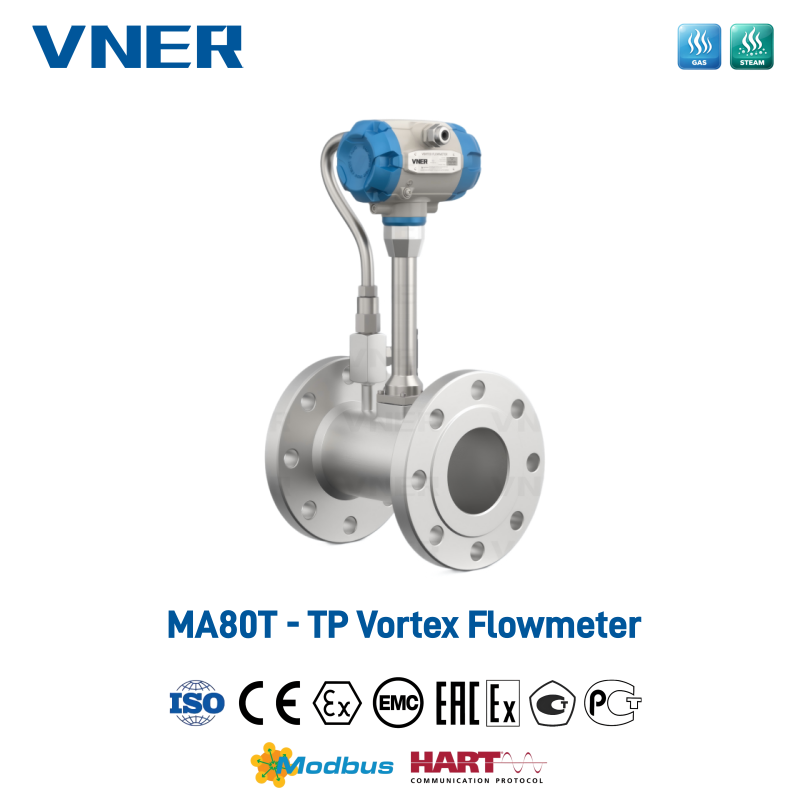

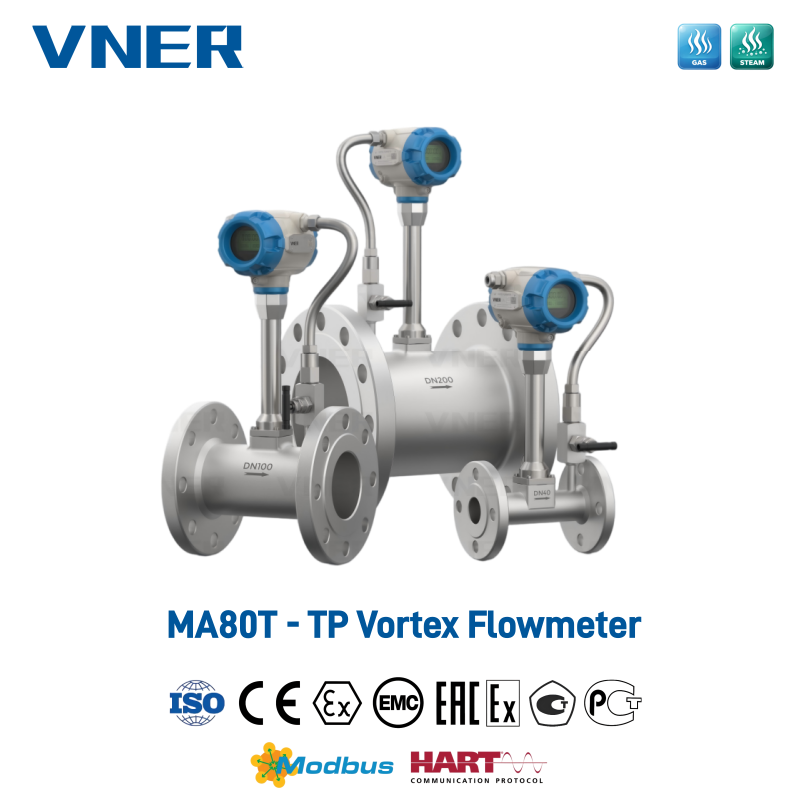

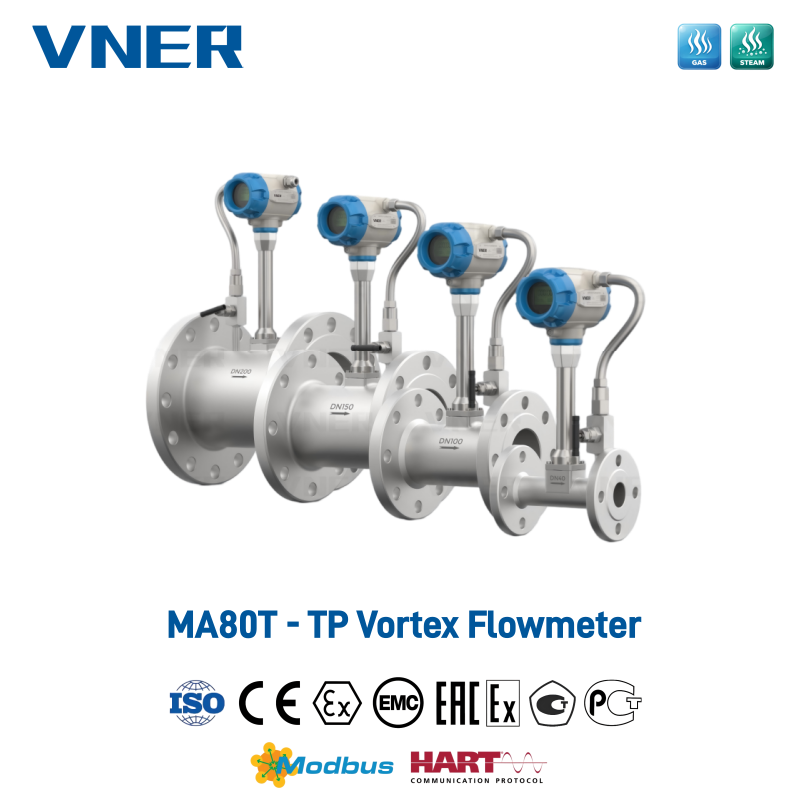

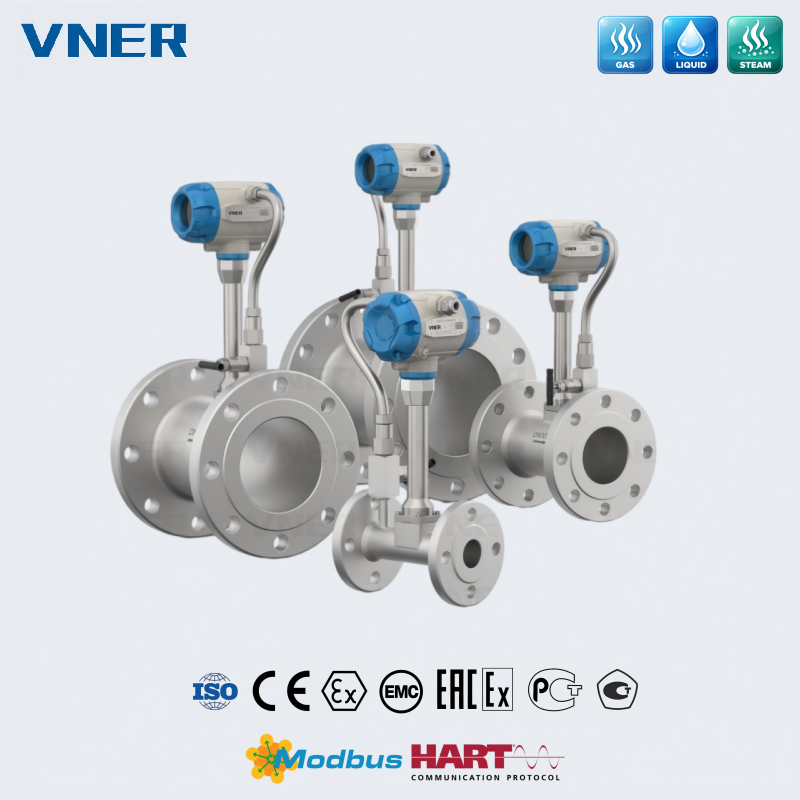

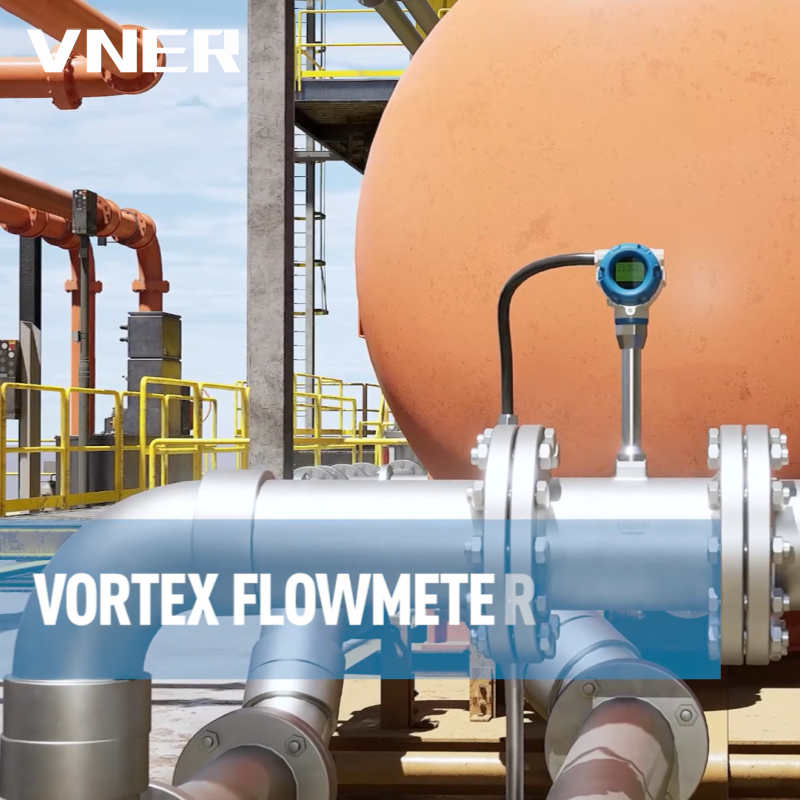

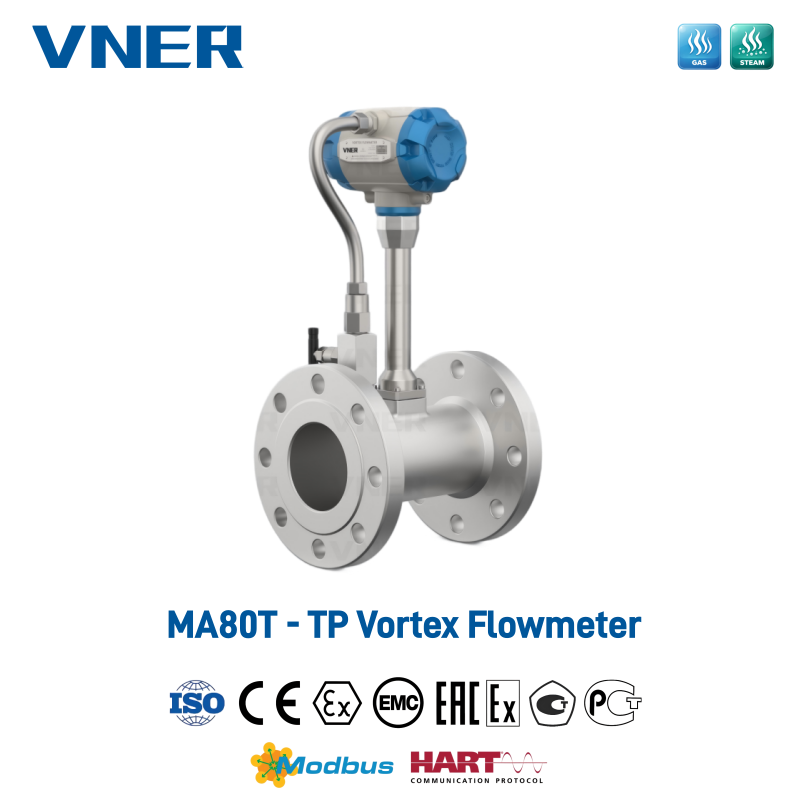

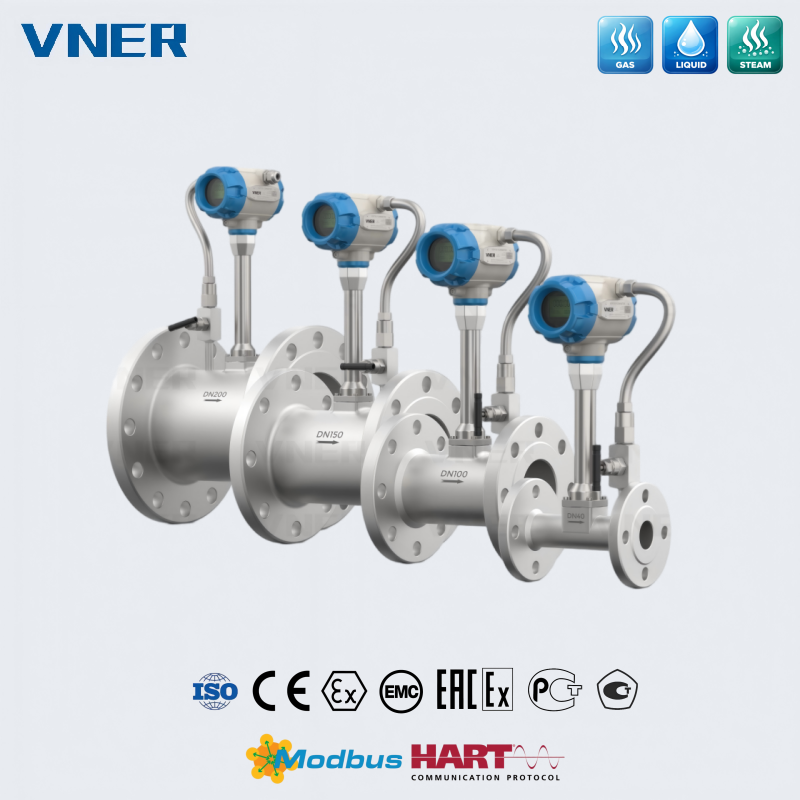

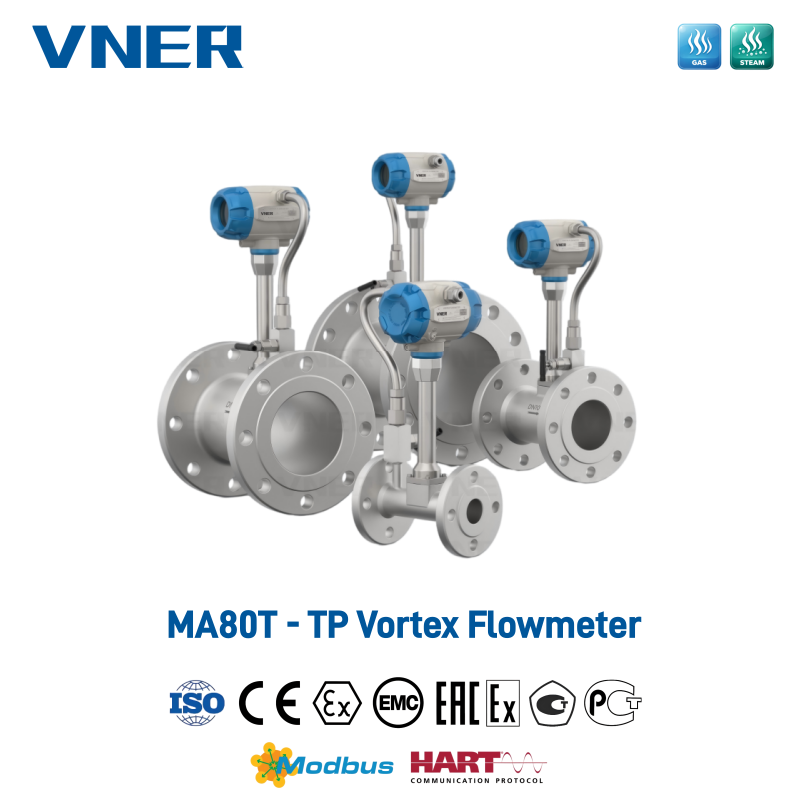

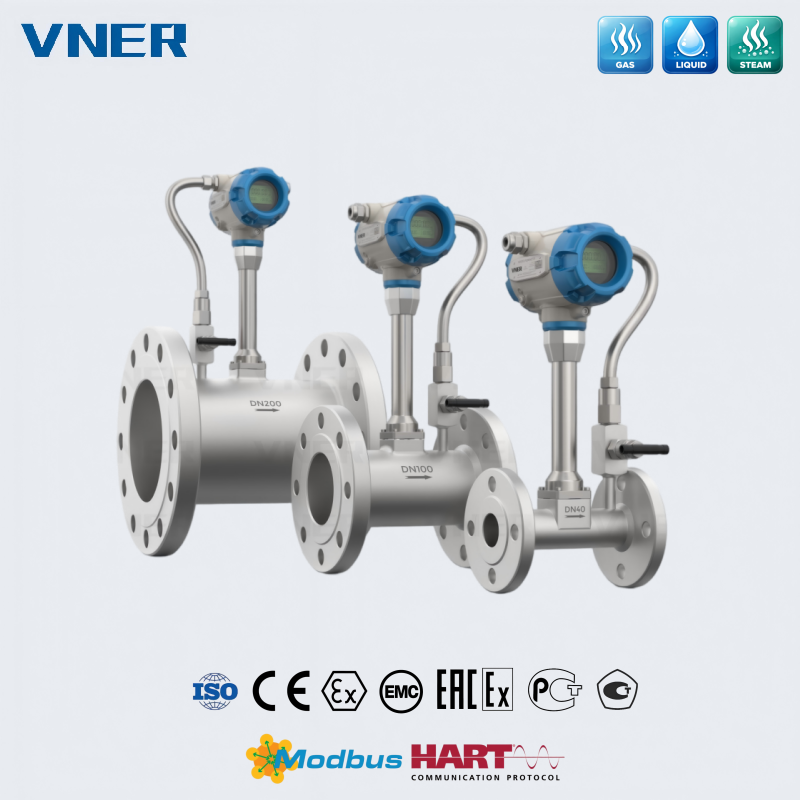

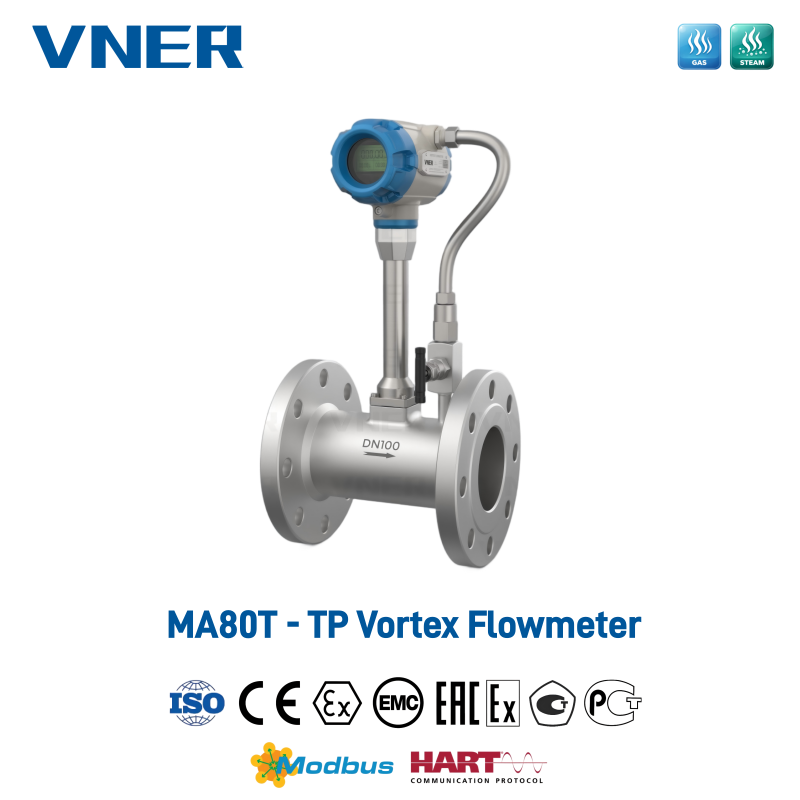

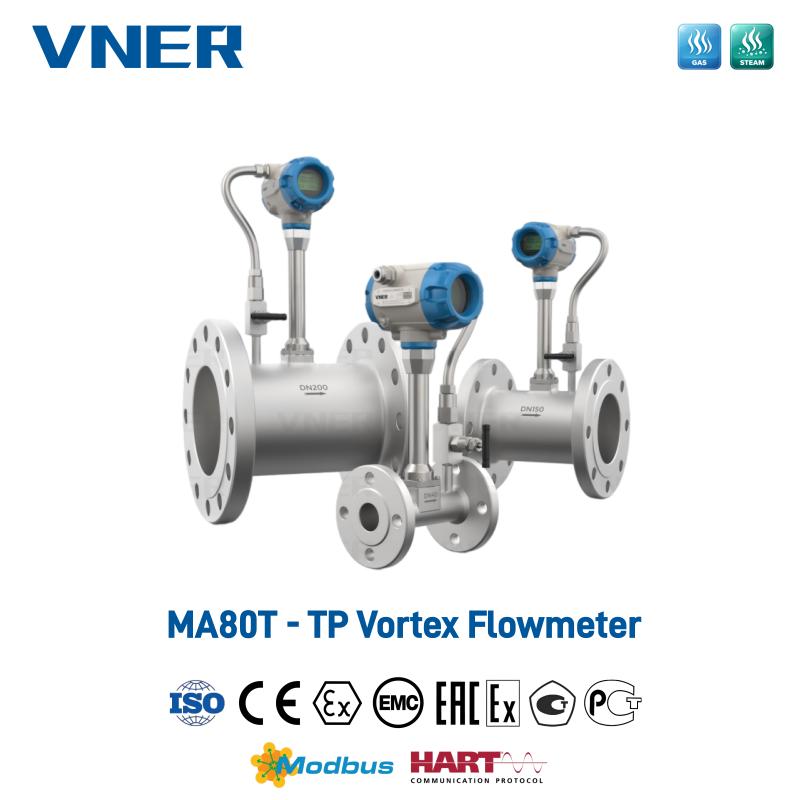

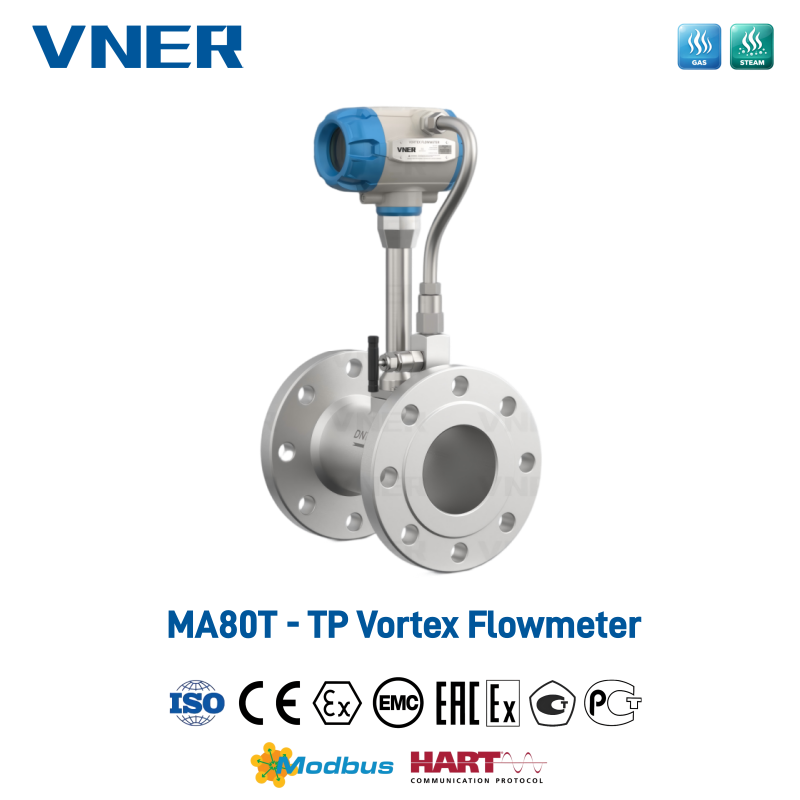

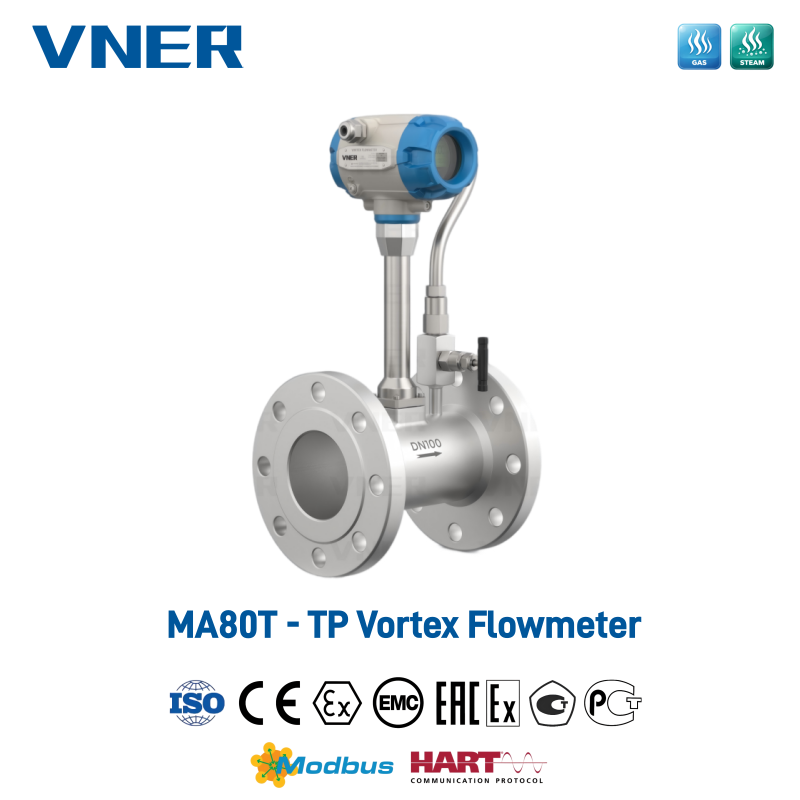

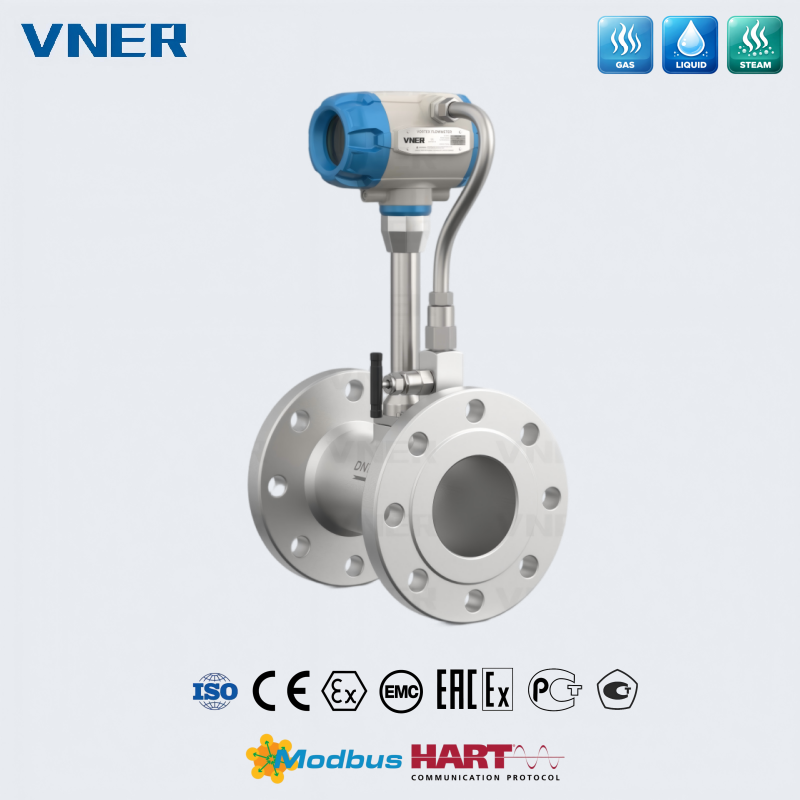

The MA80T-TP Series is the temperature and pressure compensated version of the MA80T vortex flowmeter, designed for steam, compressed gases and utility energy metering.
It is based on the Kármán vortex street principle: as the medium flows past a bluff body (shedder bar), alternating vortices are generated downstream. The vortex shedding frequency, proportional to flow velocity, is detected by a piezoelectric sensor and used to calculate operating volumetric flow.

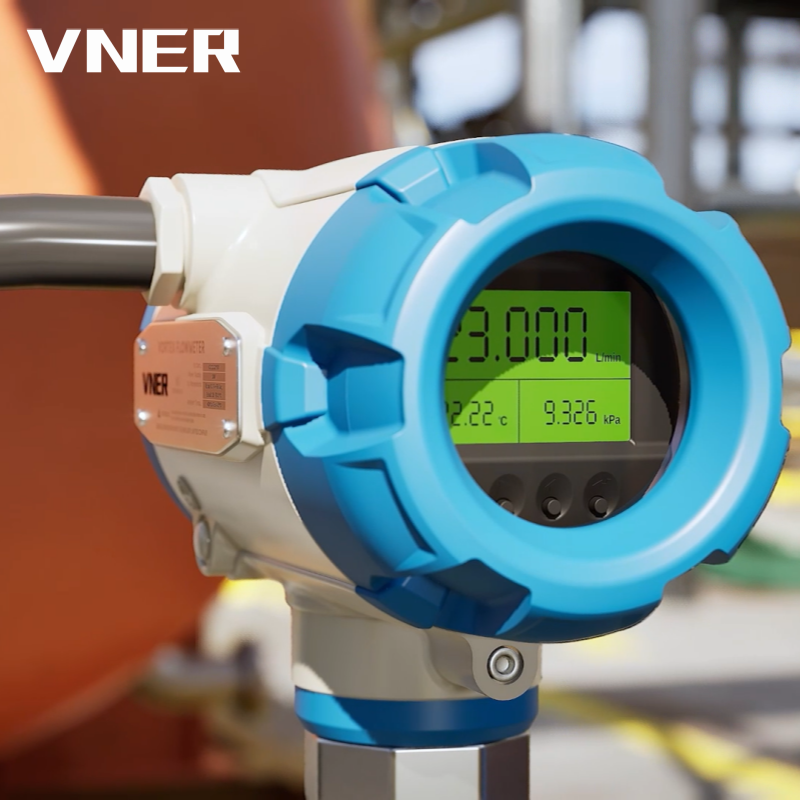

The MA80T-TP integrates temperature and pressure measurement (via RTD and pressure input). Using these signals, the converter performs real-time density or standard condition corrections and provides mass flow and standard volume flow outputs, in addition to operating volumetric flow. This makes MA80T-TP especially suitable for saturated/superheated steam and compressed air/gas networks, where compensated values are required for process control, energy balance and cost allocation.
Based on the MA80T vortex flowmeter, enhanced with integrated temperature & pressure compensation.
| Item | Description |
| Measuring principle | Kärmán vortex street; vortex shedding frequency proportional to flow velocity |
| Measured media | Saturated/superheated steam, compressed gases and clean/low-viscosity liquids (single-phase) |
| Body & flange material | SS304, SS316L; customization upon request |
| Sensor wetted material | SS304, SS316L, Hastelloy C, Hastelloy B, Titanium (model-dependent) |
| Sensor type | Piezoelectric |
| Integrated measurements | Flow frequency + temperature (RTD) + pressure (sensor input) |
| Calculated variables | Operating volumetric flow, standard volumetric flow, mass flow (media-dependent) |
| Typical accuracy (volumetric flow) | Liquids: up to ±1.0 % of rate; gases & steam: ±1.0 %, ±1.5 % of rate (under calibrated conditions) |
| Turndown ratio | Typically up to 1:10–1:20 (depending on medium and installation conditions) |
| Straight pipe requirement | Typically 15 × DN upstream / 5 × DN downstream (to be confirmed per installation) |
| Temperature capability | Standard up to 250 °C; high-temperature versions up to 350 °C |
| Pressure rating | Up to 4.0 MPa (model-dependent; see datasheet) |
| Process connection type | Flanged and wafer versions |
| Process connection standard | GB, DIN, ANSI (others on request) |
| Main applications | Compensated steam and gas metering, utility monitoring and energy management in industrial plants |
The overall uncertainty of compensated mass/standard volume flow depends on the vortex flowmeter accuracy, temperature and pressure sensor classes, correct media configuration and operating range. Refer to the datasheet for detailed performance data.

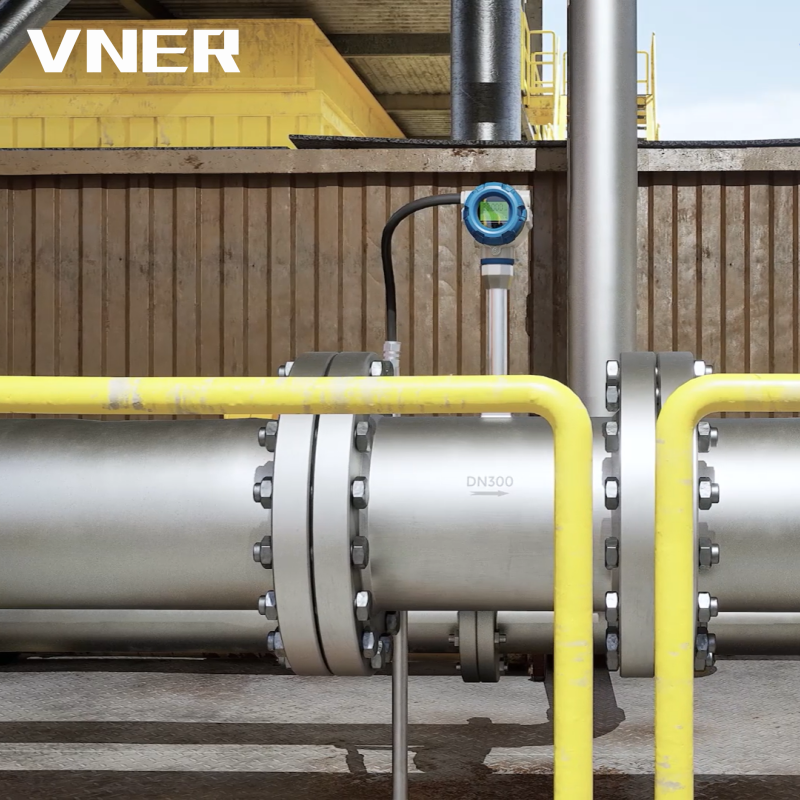

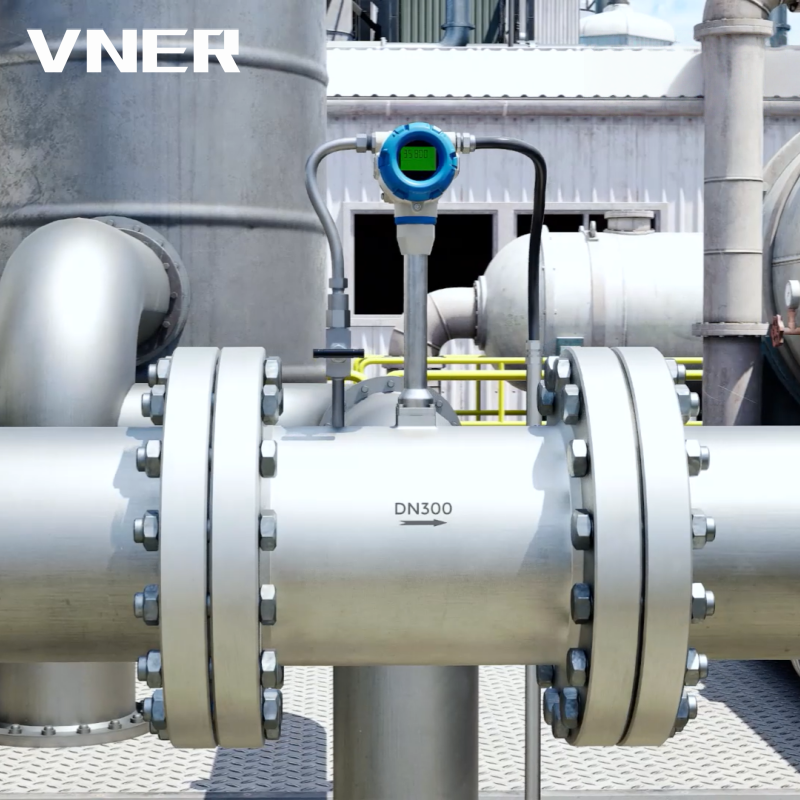

| Category | Specification / Option | Notes |
| Primary outputs | 4-20 mA, pulse | Assignable to operating or compensated flow variables |
| Digital communication | HART, Modbus RTU | Remote configuration and access to all measured and calculated values (optional) |
| Measured inputs | Integrated temperature and pressure channels | RTD and pressure transmitter inputs for real-time compensation |
| Calculated outputs | Standard volume flow, mass flow, totalizers | For configured steam and gas media |
| Compensation | Temperature and pressure compensation for steam and gases | Based on standard correlations and reference conditions set in the converter |
| Diagnostics | Sensor fault indication, T&P signal plausibility checks, signal quality monitoring | Supports commissioning and troubleshooting |
| Design | No moving parts; welded vortex shedder design | Low maintenance, suitable for continuous operation in utility service |
| Installation | Flanged or wafer mounting | Compatible with common industrial piping standards and typical steam/gas layouts |
| Industry | Medium / Service | Typical Use |
| Power & Energy | Saturated / superheated steam | Compensated steam metering at boiler outlets, main steam headers and turbine inlets for energy balance and performance tracking |
| Power & Energy | Plant steam networks | Steam distribution metering to different units or consumers for cost allocation and efficiency analysis |
| Chemical & Petrochemical | Compressed air, nitrogen, inert gases | Standard volume measurement for utility gas networks, leak detection and compressed air management |
| Chemical & Petrochemical | Process and utility steam | Steam supply to reactors, reboilers and heat exchangers where compensated flow values are required |
| Oil & Gas | Fuel gas and instrument air | Compensated gas metering for burners, furnaces and utility systems in process plants |
| Pharmaceutical | Clean steam in SIP systems | Steam flow monitoring for sterilization processes with compensated values for qualification and reporting |
| Food & Beverage | Plant steam and utility gases | Steam and gas metering for process lines and utilities with energy and cost tracking |
| HVAC & District Energy | Steam and hot water (within vortex limits) | Energy metering and sub-metering in district heating and industrial HVAC systems |
As China MA80T-TP Series Temperature/Pressure Compensation Vortex Flowmeter Manufacturers and MA80T-TP Series Temperature/Pressure Compensation Vortex Flowmeter Factory, we are renowned for manufacturing professional and high-precision industrial instruments. Our expertise lies in providing unparalleled flow measurement resources, backed by over 12 years of experience solving complex applications.
Our precision flow metering devices are used by a diverse range of users, ranging from major oil and gas companies to photovoltaic providers, pharmaceutical manufacturers, and municipal services. We continuously contribute to the development of flow measurement in the domestic energy and chemical industries due to our expertise in measuring variable component gases and peculiar mediums.
