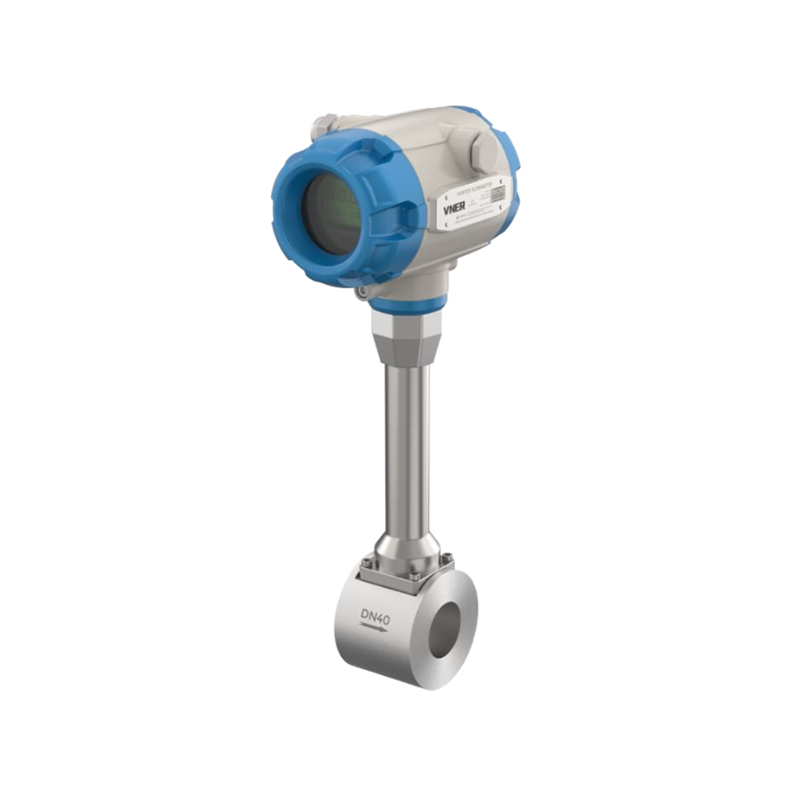

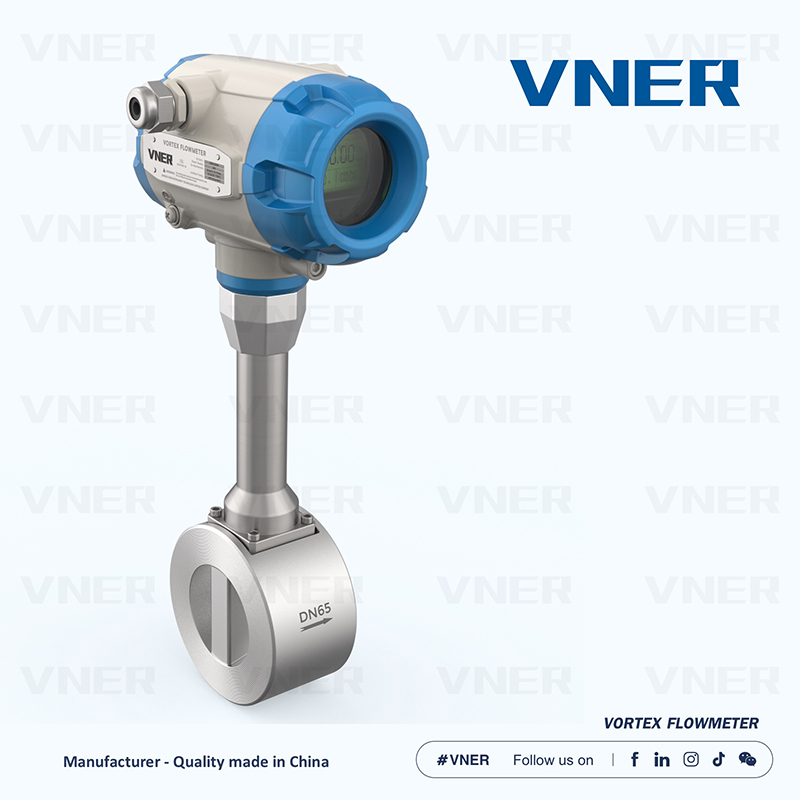

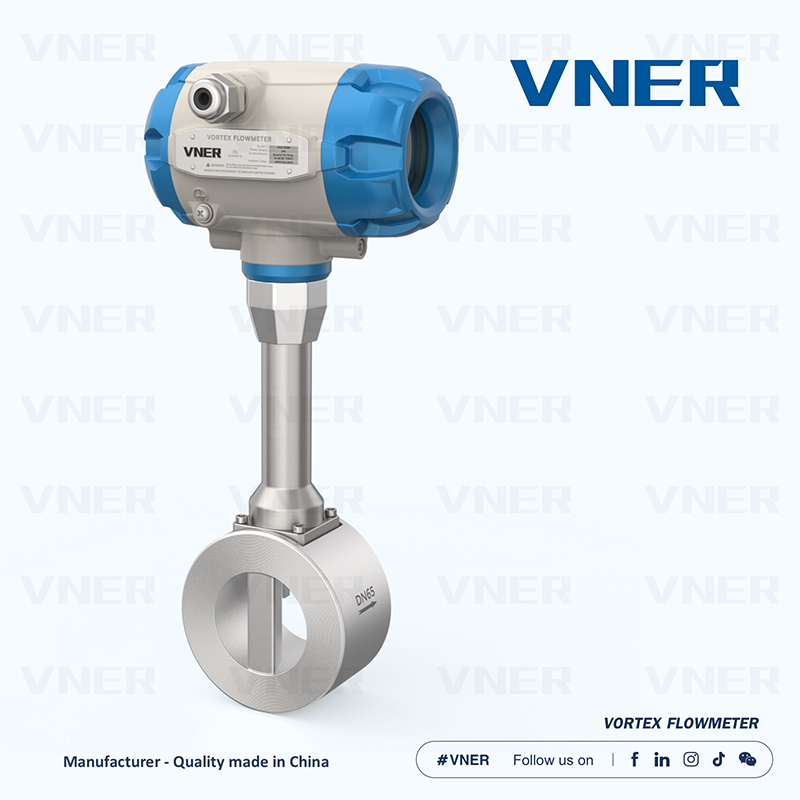

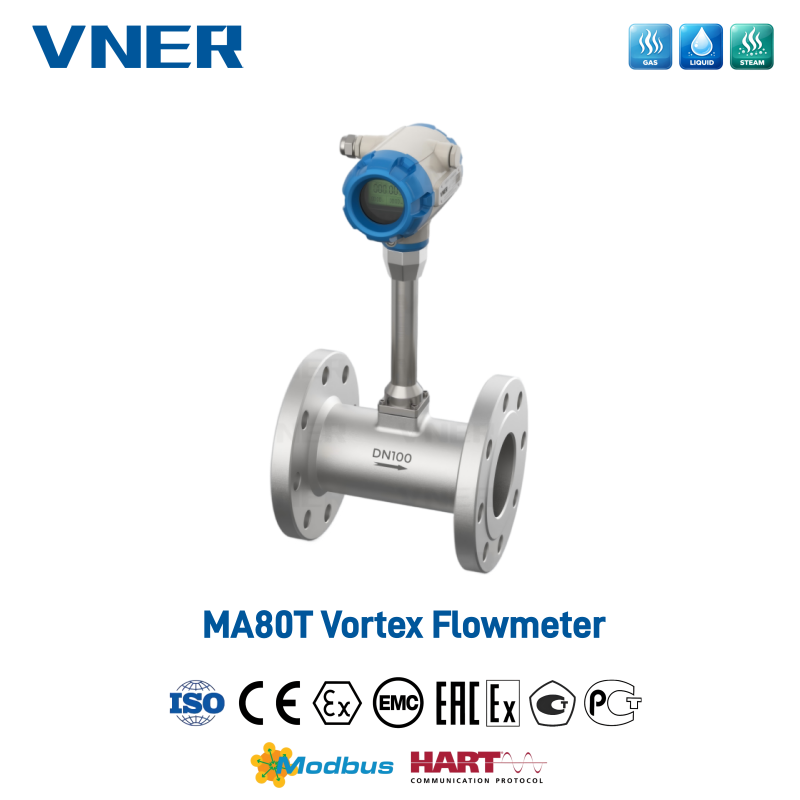

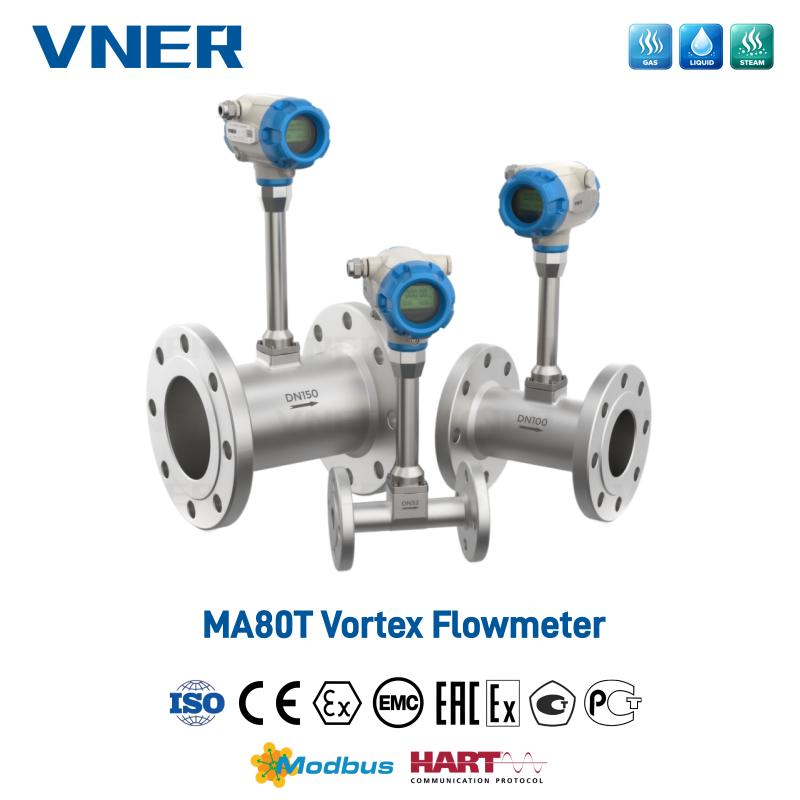

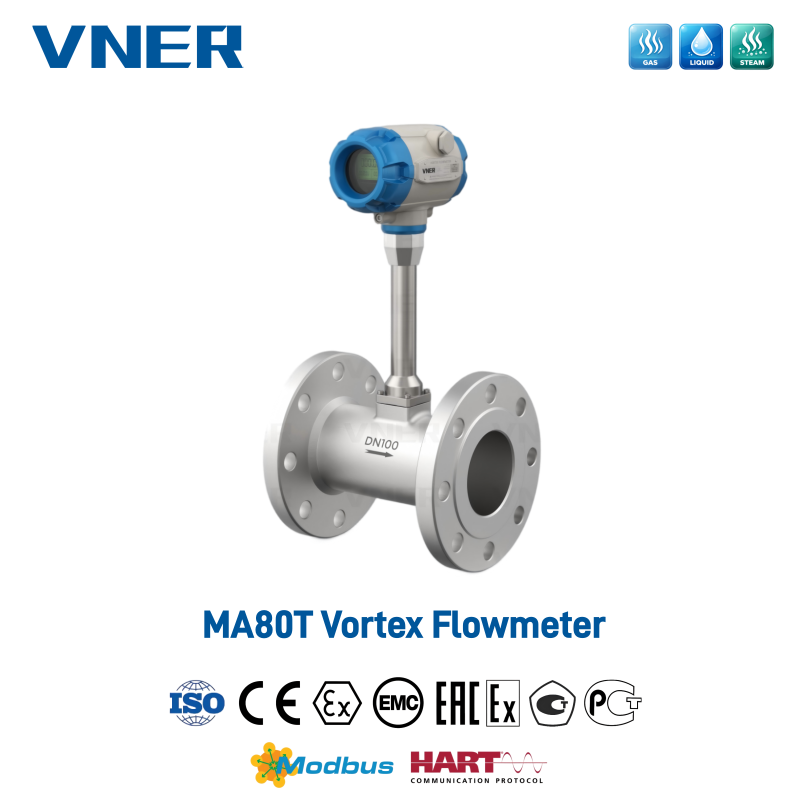

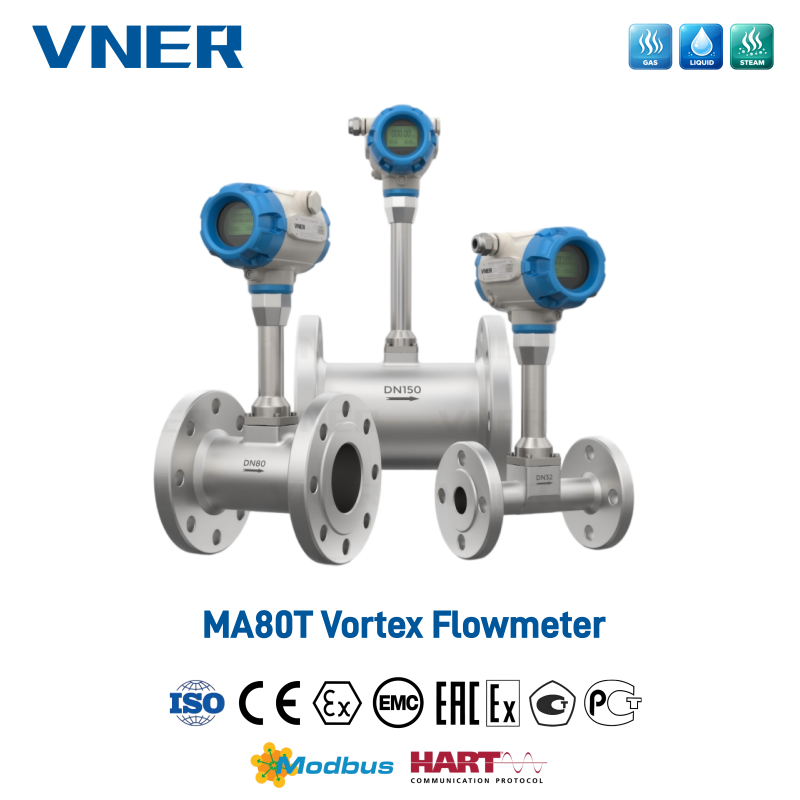

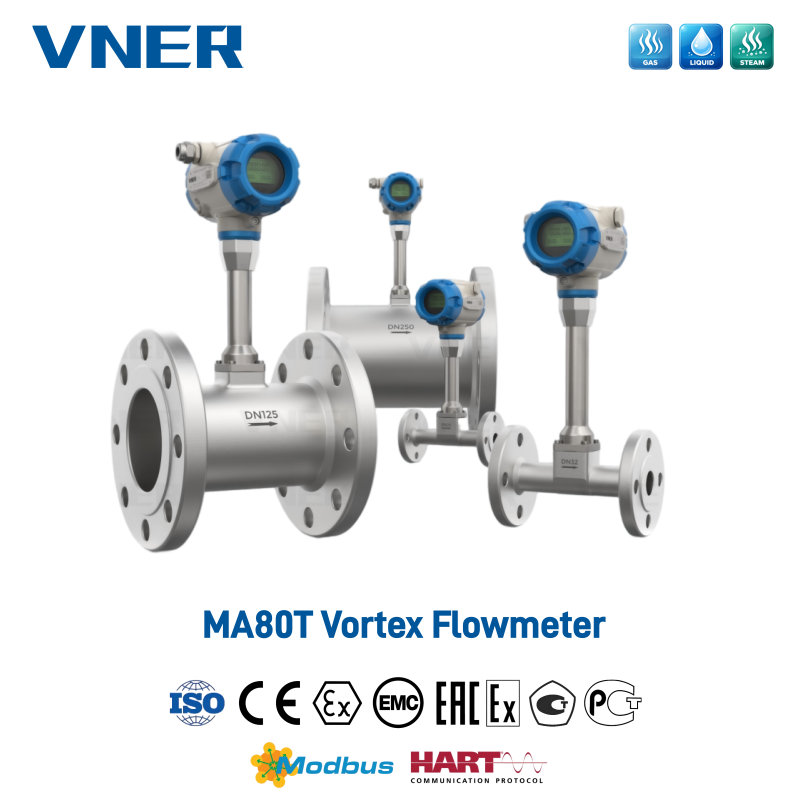

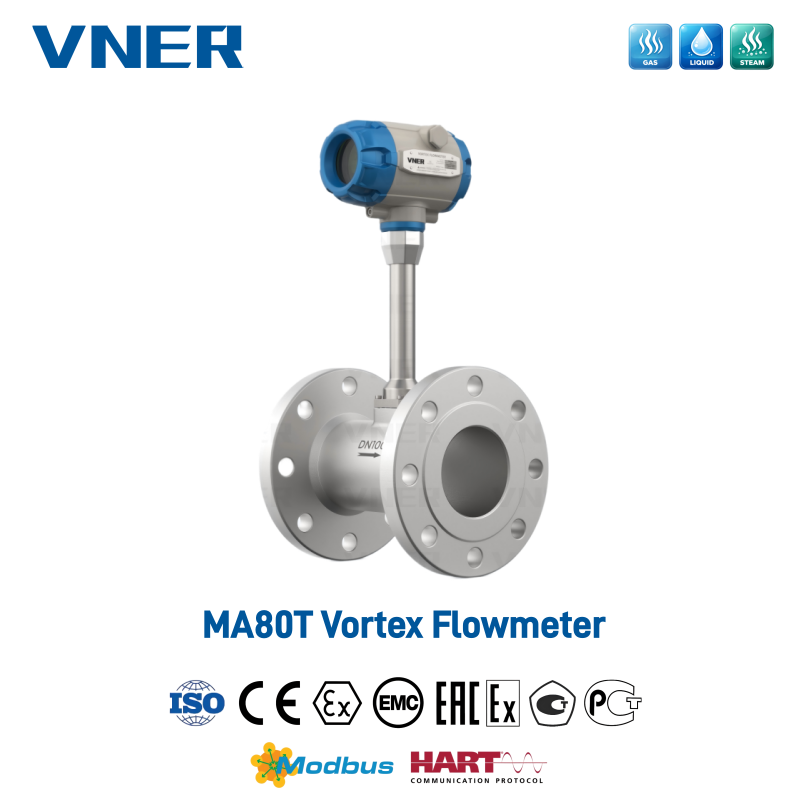

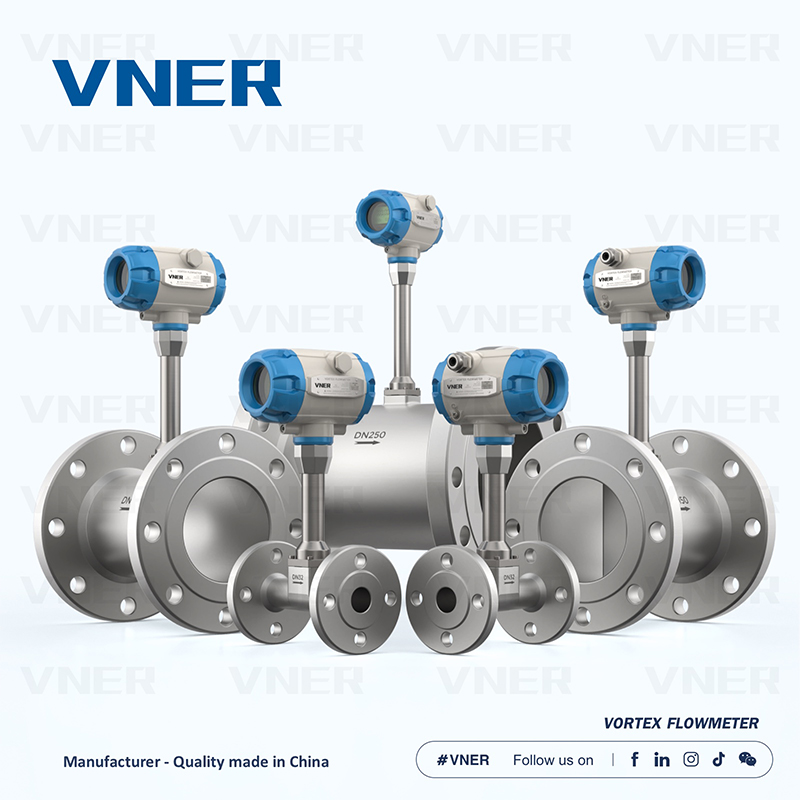

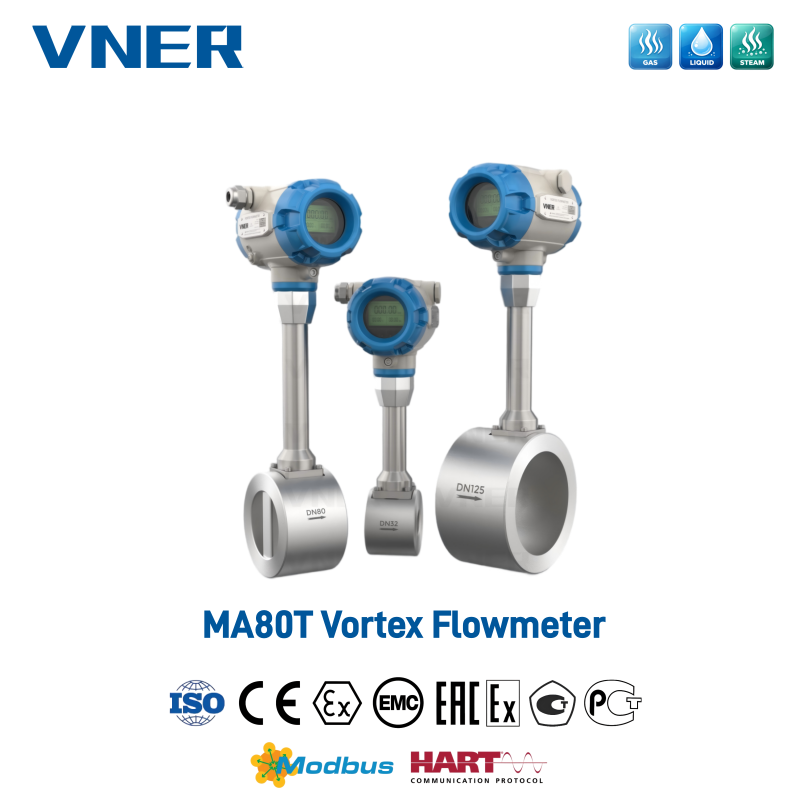

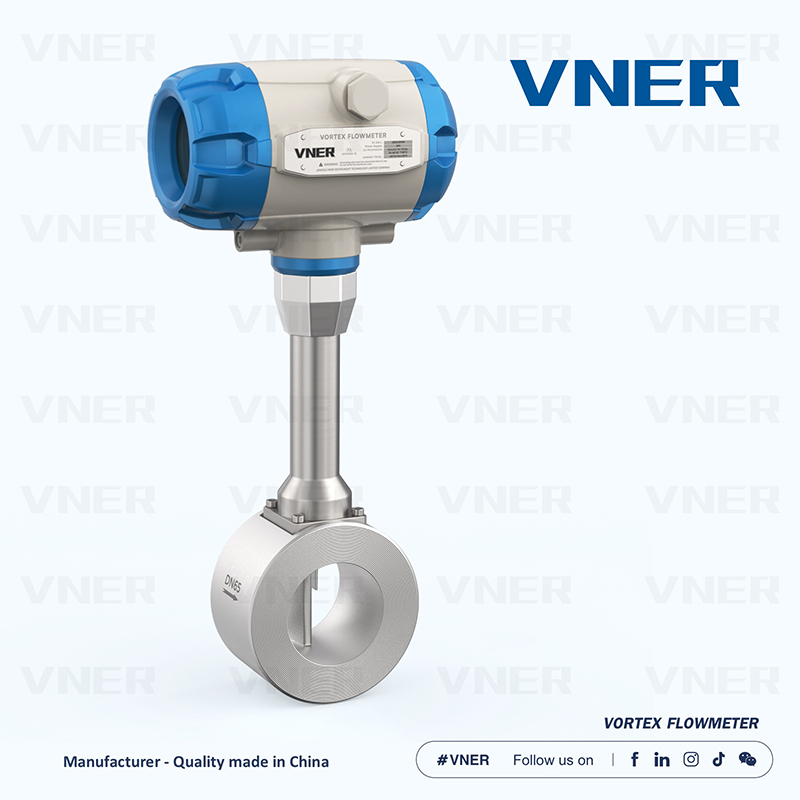

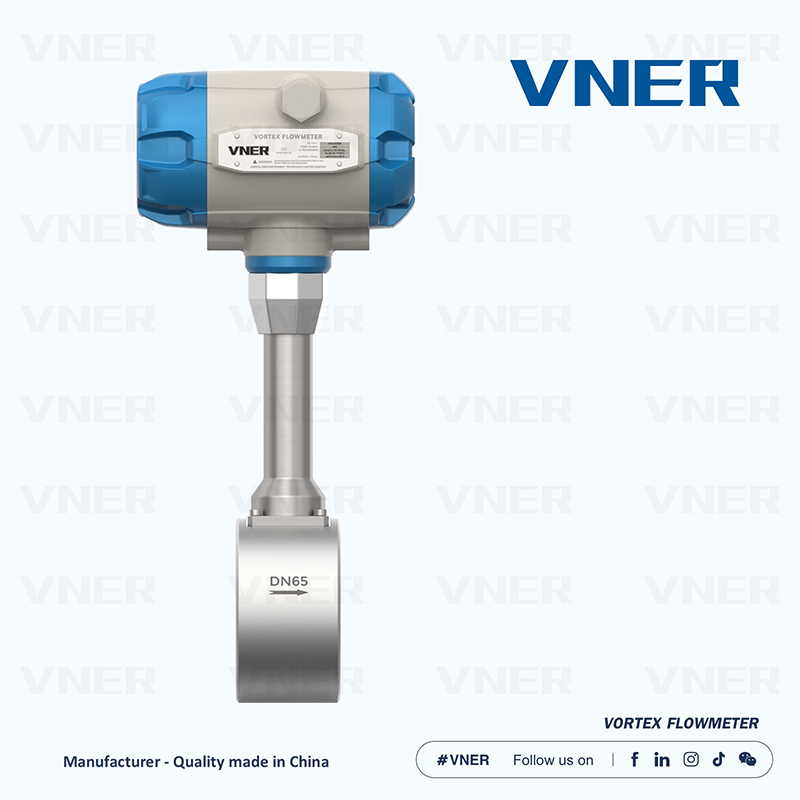

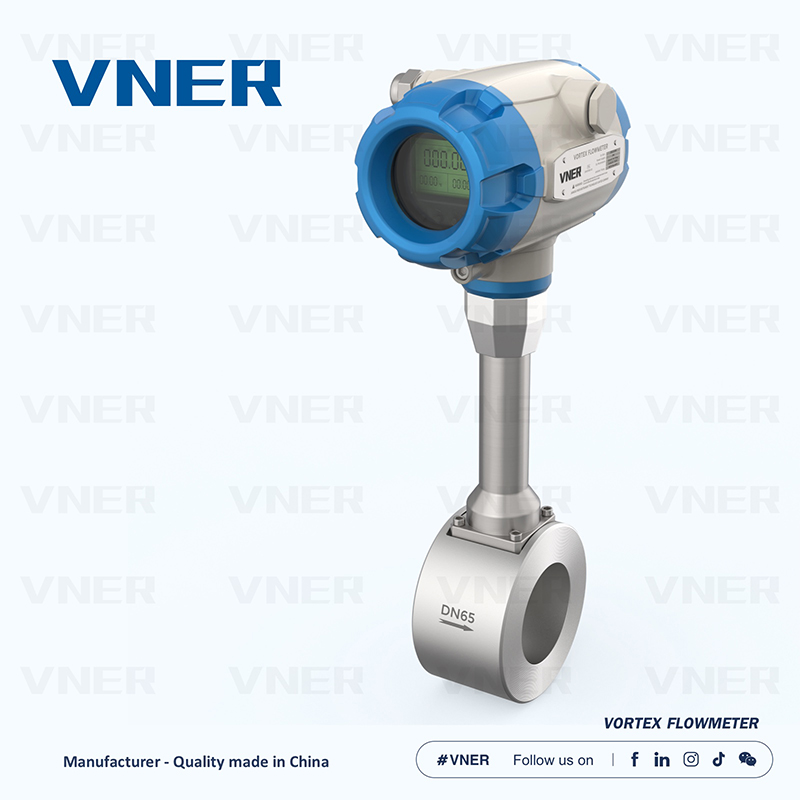

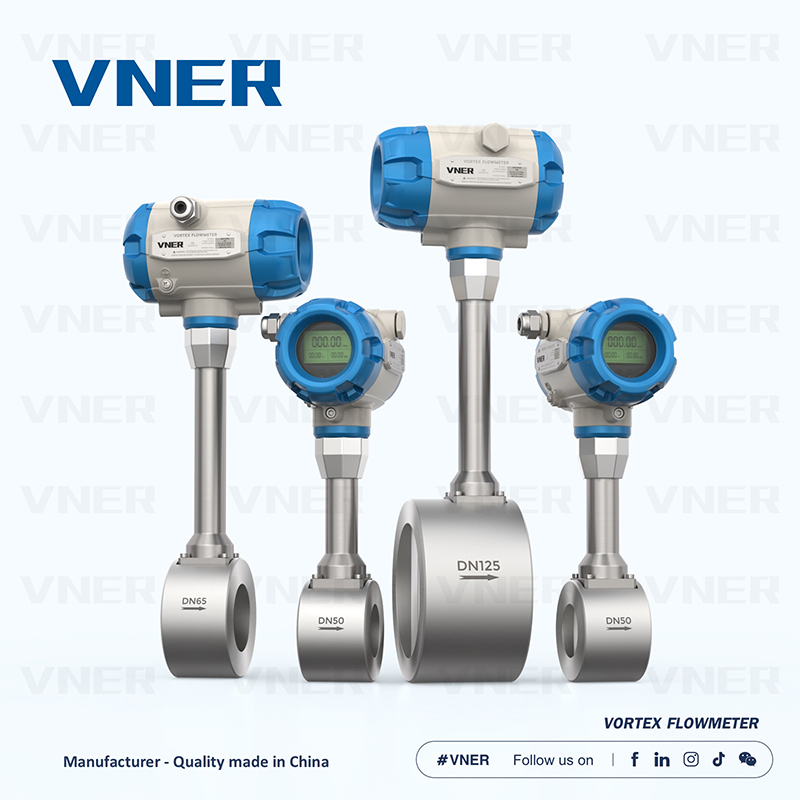

MA80T Series Vortex Flowmeter
Inquiry
Product introduction
The MA80T Series Vortex Flowmeter operates based on the Kármán vortex street principle. As fluid flows past a bluff body (typically a triangular shedder bar), alternating vortices form downstream at a frequency proportional to the flow velocity. These vortices generate pressure fluctuations, which are detected by a piezoelectric, allowing for accurate and stable flow rate calculation.
Physical Properties
★ Reliable Multi-Phase Measurement
Accurately measures flow of steam, gases, and liquids with minimal sensitivity to pressure or temperature variations.
★ Rugged Design for Harsh Environments
Withstands high-pressure (up to 4.0 MPa) and high-temperature (up to 350°C) conditions commonly found in industrial steam and gas systems.
★ Minimal Pressure Drop
Low obstruction design ensures minimal flow resistance, improving system energy efficiency.
★ Flexible Installation Options

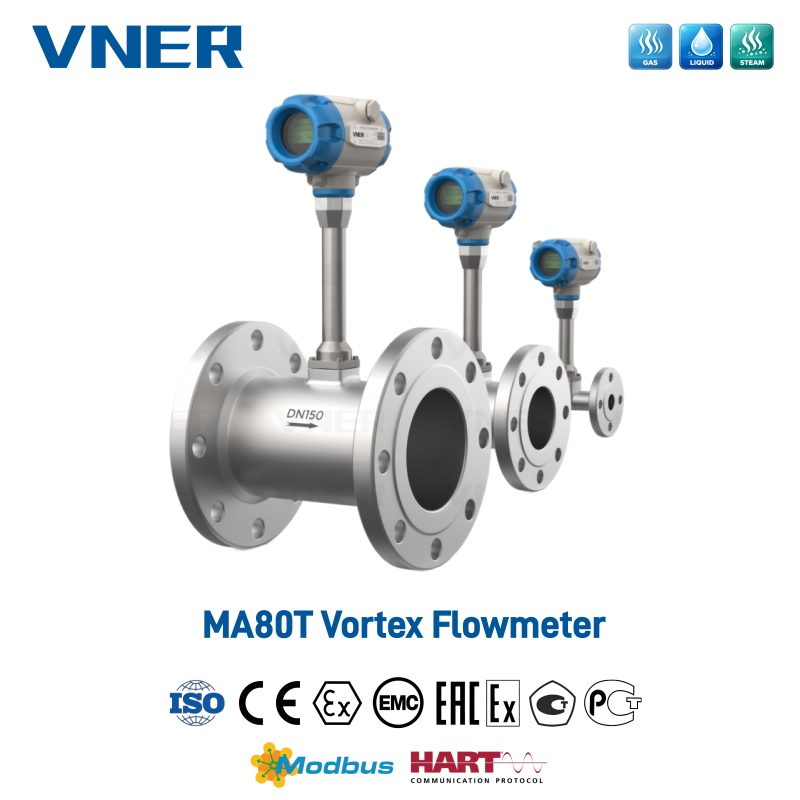

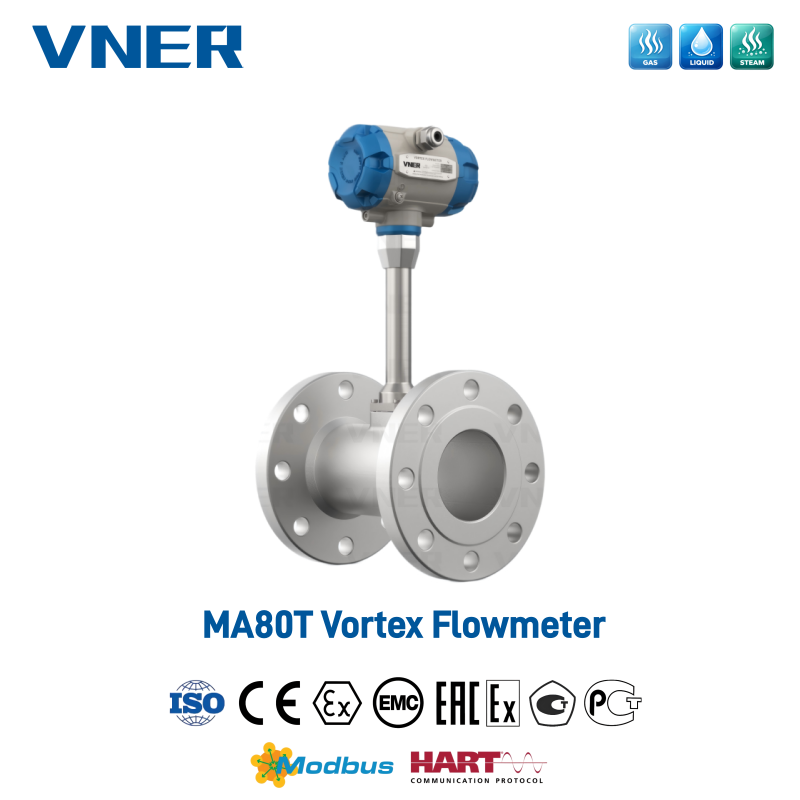

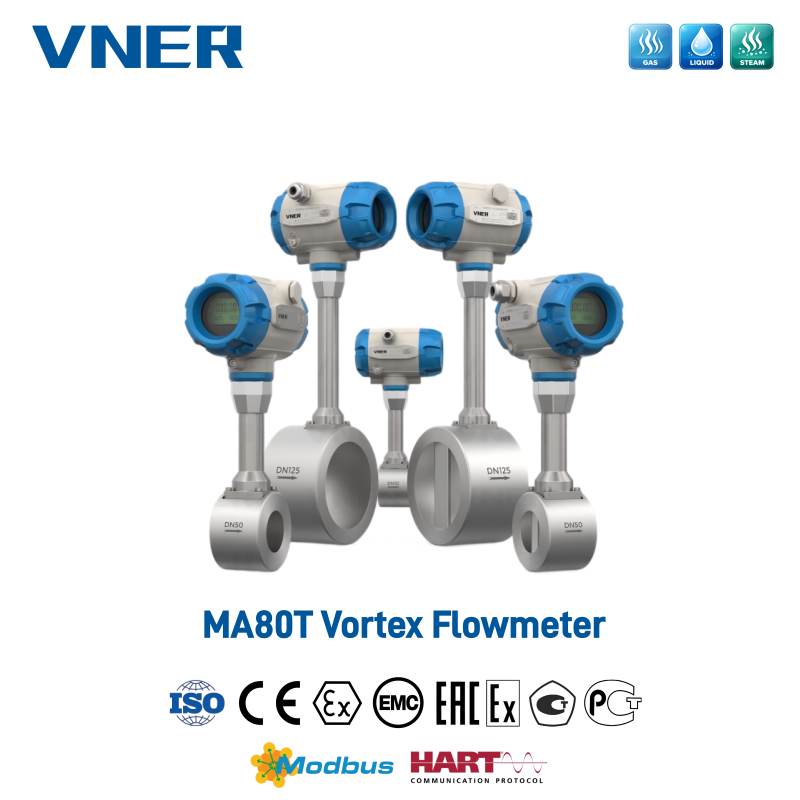

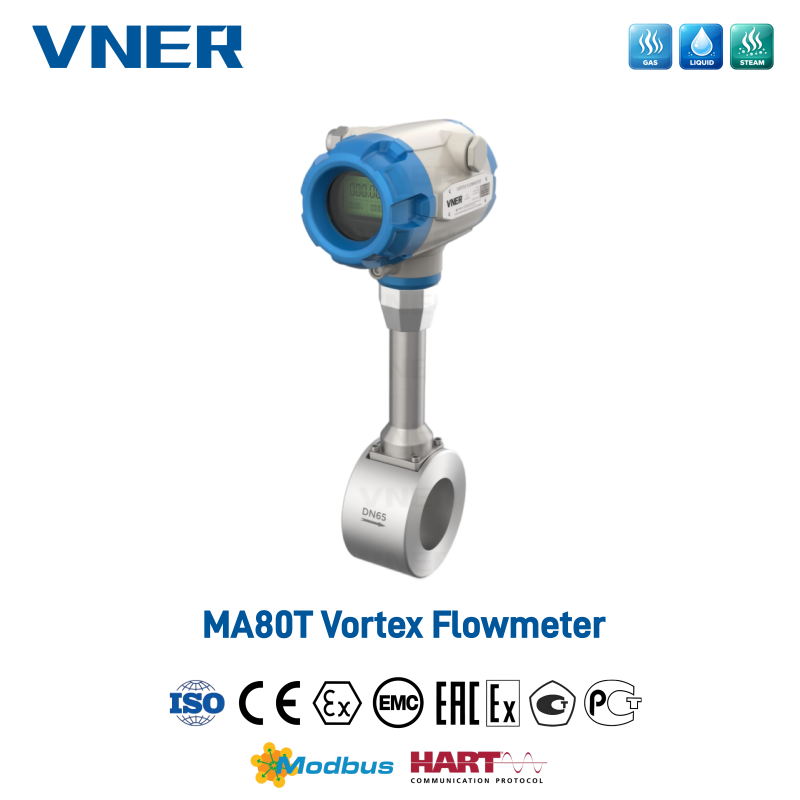

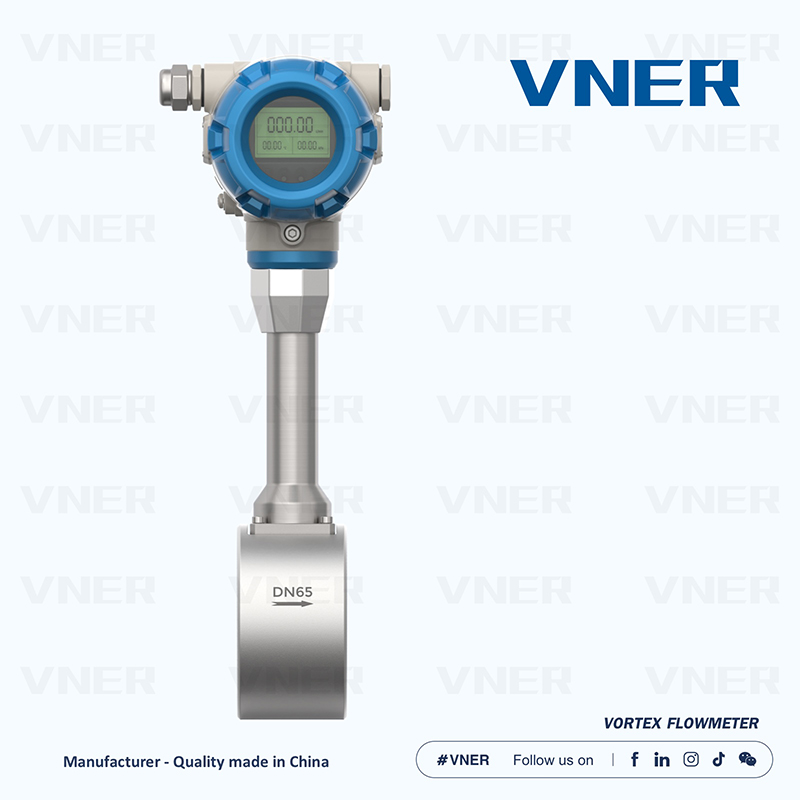

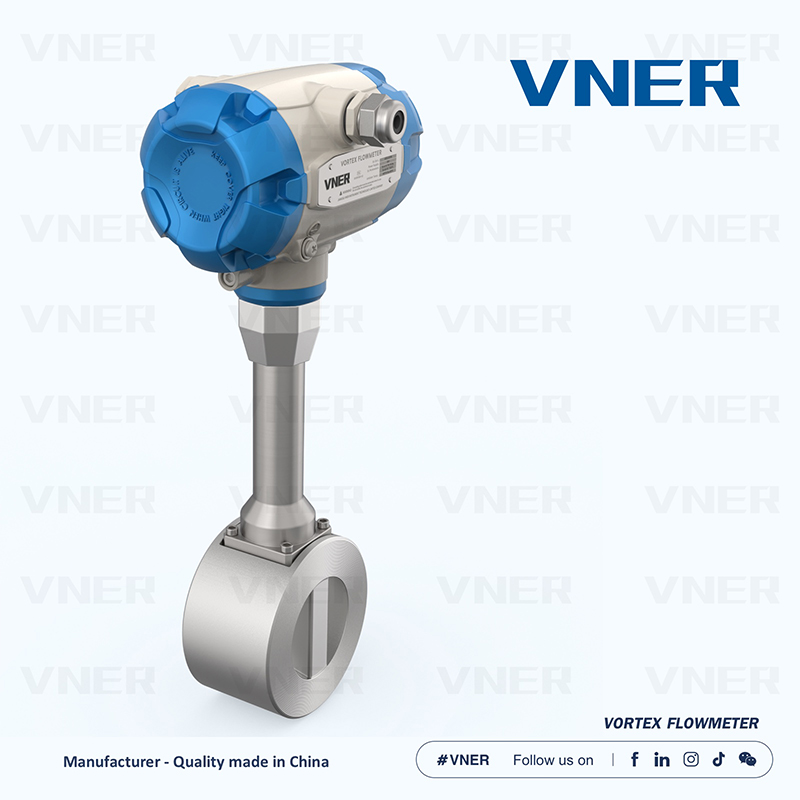

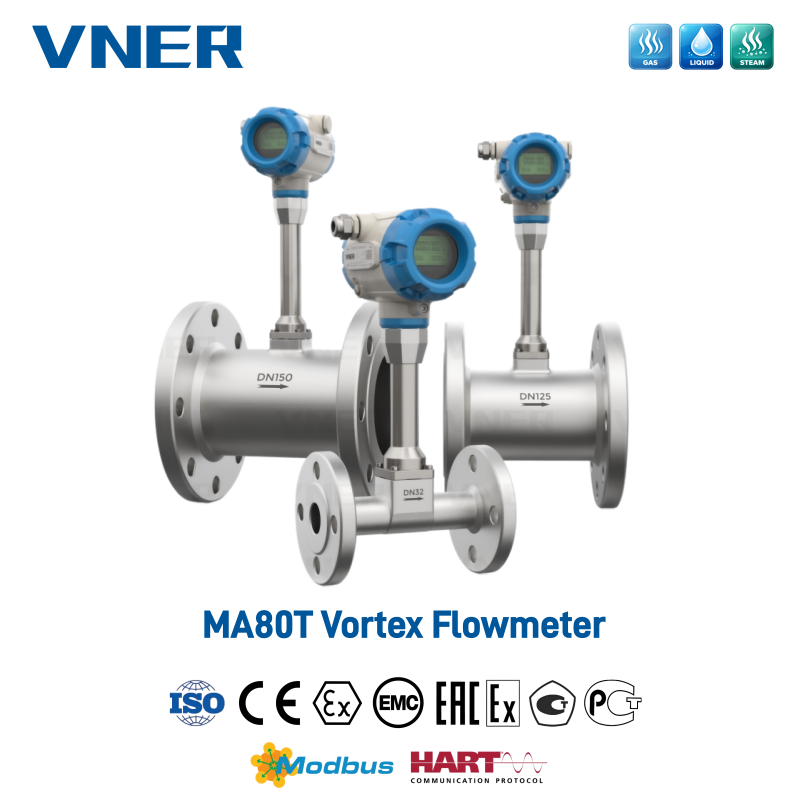

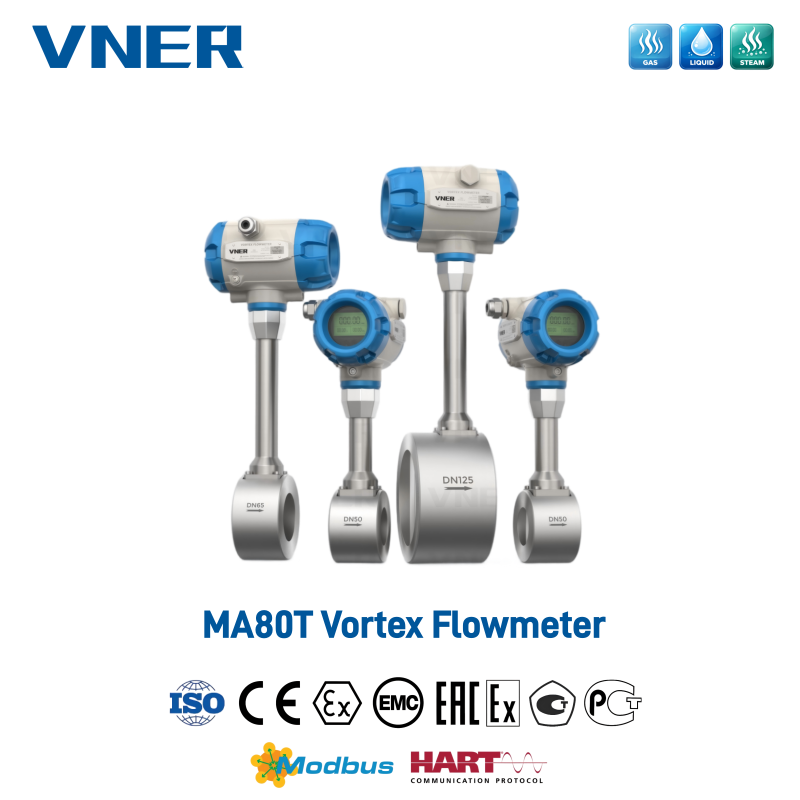

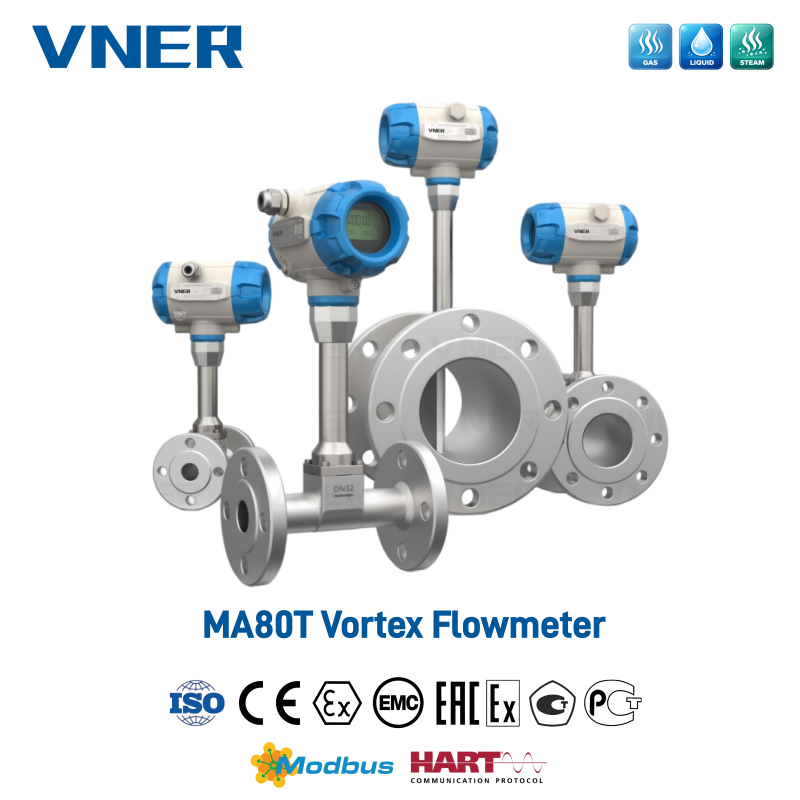

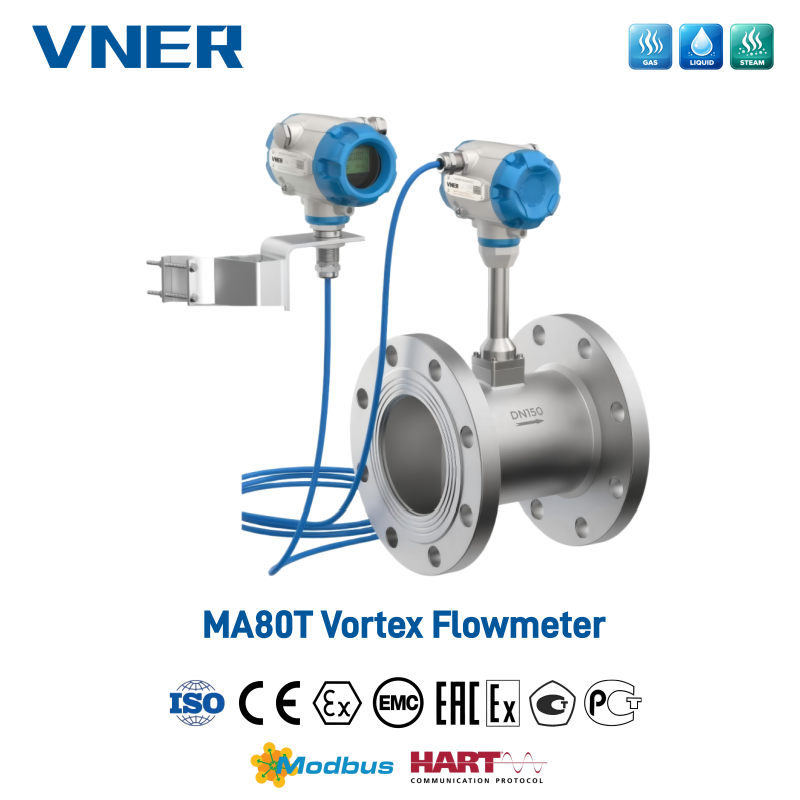

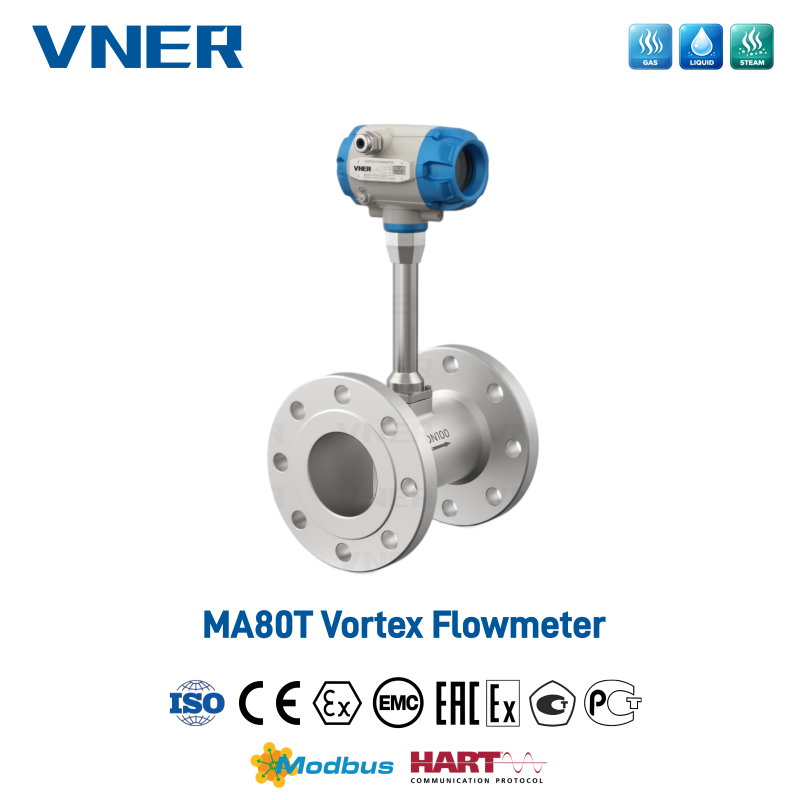

Supports horizontal and vertical installation; available in flange and wafer versions to adapt to various piping configurations.
Ingredient Content
★ Oil & Gas: Measurement of fuel gas, natural gas, saturated steam, or condensate in pipelines and burner systems.
★ Food & Beverage: Clean steam sterilization, carbon dioxide injection, and liquid dosing systems.
★ HVAC and Building Automation: Monitoring of steam, hot/chilled water for district heating and cooling systems.
★ Chemical & Petrochemical: Accurate flow control of utility gases, corrosive vapors, or reaction media.
★ Power Generation: Steam flow monitoring in boilers, turbines, and heat recovery systems.
★ Pharmaceutical: Clean steam in SIP systems and purified water measurement in WFI loops.
★ Textile & Dyeing: Process steam and dye liquor flow regulation.
★ Pulp & Paper: White and black liquor, condensate, and process steam flow tracking.
Product parameters
✬ Steam Flow Monitoring in Sterilization Systems
Accurately tracks clean steam flow in autoclaves or SIP systems, ensuring compliance with pharmaceutical and food-grade sterilization standards.
✬ Gas Flow Optimization in Combustion Systems
Used in boiler feed gas lines or burner control systems to optimize fuel-air ratios, enhancing combustion efficiency and reducing emissions.
✬ HVAC Water Loop Control for Thermal Stability
Ensures consistent circulation of chilled or hot water in HVAC loops, contributing to precise indoor climate control and improved energy savings.
✬ Real-Time Mass Flow Compensation in High-Pressure Steam Networks
MA80T-TP enables accurate thermal energy balancing in steam distribution grids under varying pressure/temperature loads—critical for cost allocation and efficiency analysis.
