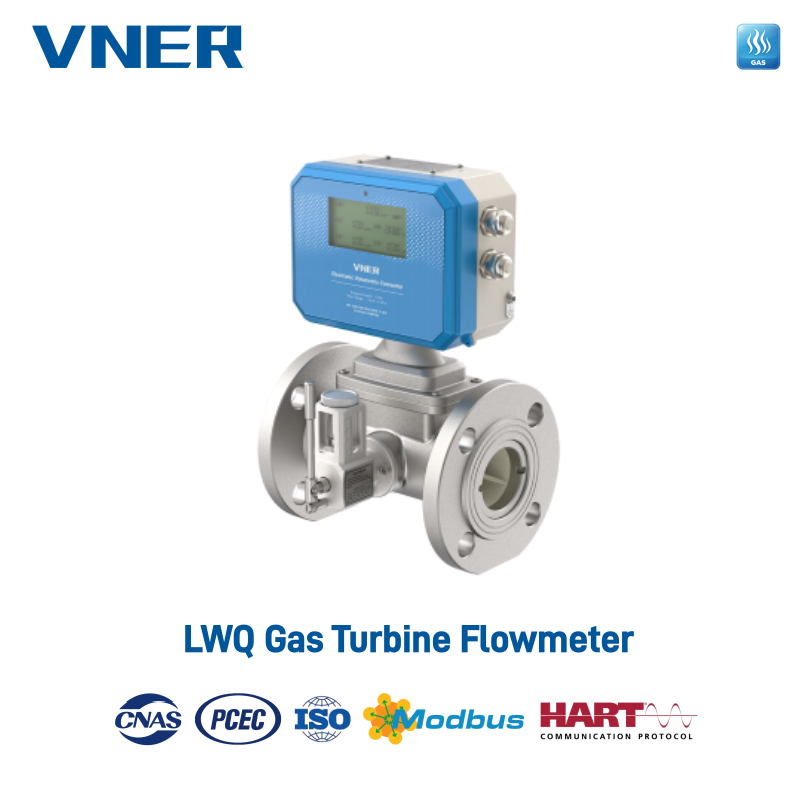

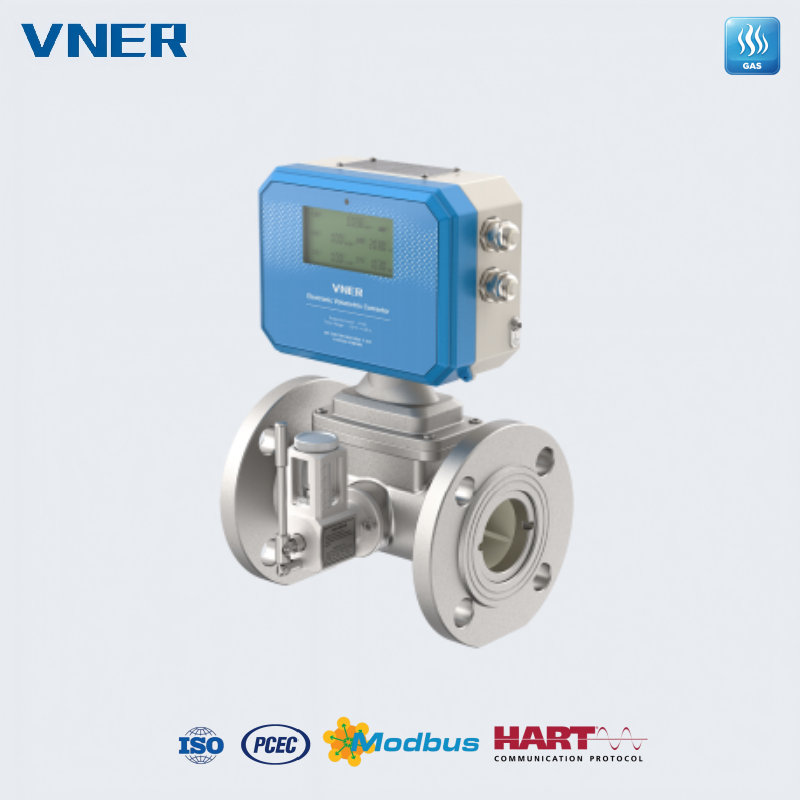

LWQ Gas Turbine Flowmeter Manufacturers

How ​​does the LWQ gas turbine flowmeter work?

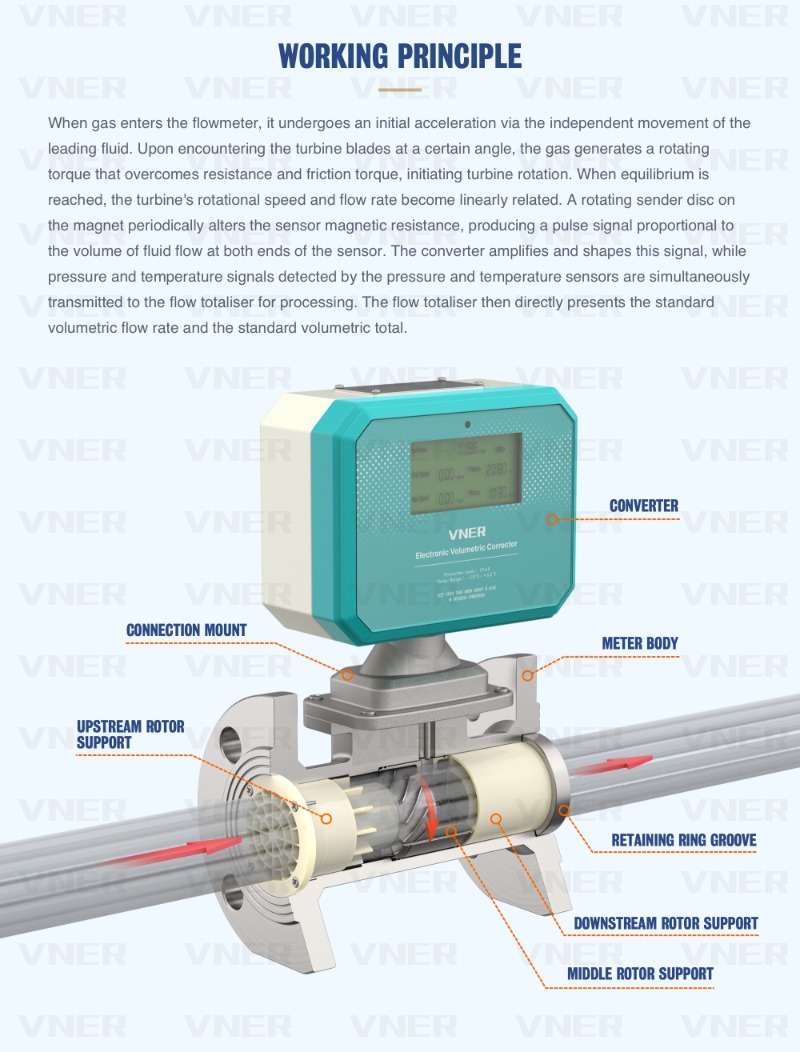

The LWQ gas turbine flowmeter is a flow measurement device that uses gas flow to drive the rotation of turbine blades. Its operating principle is based on the rotor principle in fluid mechanics. As gas passes through the flowmeter's measuring pipe, its kinetic energy drives the turbine blades to rotate. The turbine's rotational speed is proportional to the gas flow rate, and the turbine's rotation is converted into an electrical signal by a sensor. This electrical signal is typically linearly related to the gas flow rate, enabling the flowmeter to accurately calculate the gas flow rate.

The specific process is as follows: After gas enters the flowmeter pipe, its flow rate is directly related to the gas flow rate, driving the turbine blades to rotate. The turbine's rotation generates an electrical signal from an internal sensor (such as a magnetic element, Hall effect sensor, or photoelectric sensor). The change in this signal represents the turbine's rotational speed, and thus, the gas flow rate. Combined with the flowmeter's programmed formula, the system can calculate and display the gas flow rate in real time.

The advantages of a turbine flowmeter lie in its simple structure, fast response, and high measurement accuracy. Especially under stable flow conditions, the LWQ gas turbine flowmeter provides highly reliable flow data. The LWQ model, commonly used in gas flow measurement, is particularly well-suited for measuring low to medium flow rates and is widely used for monitoring the flow of gases such as natural gas, oil, air, and nitrogen.

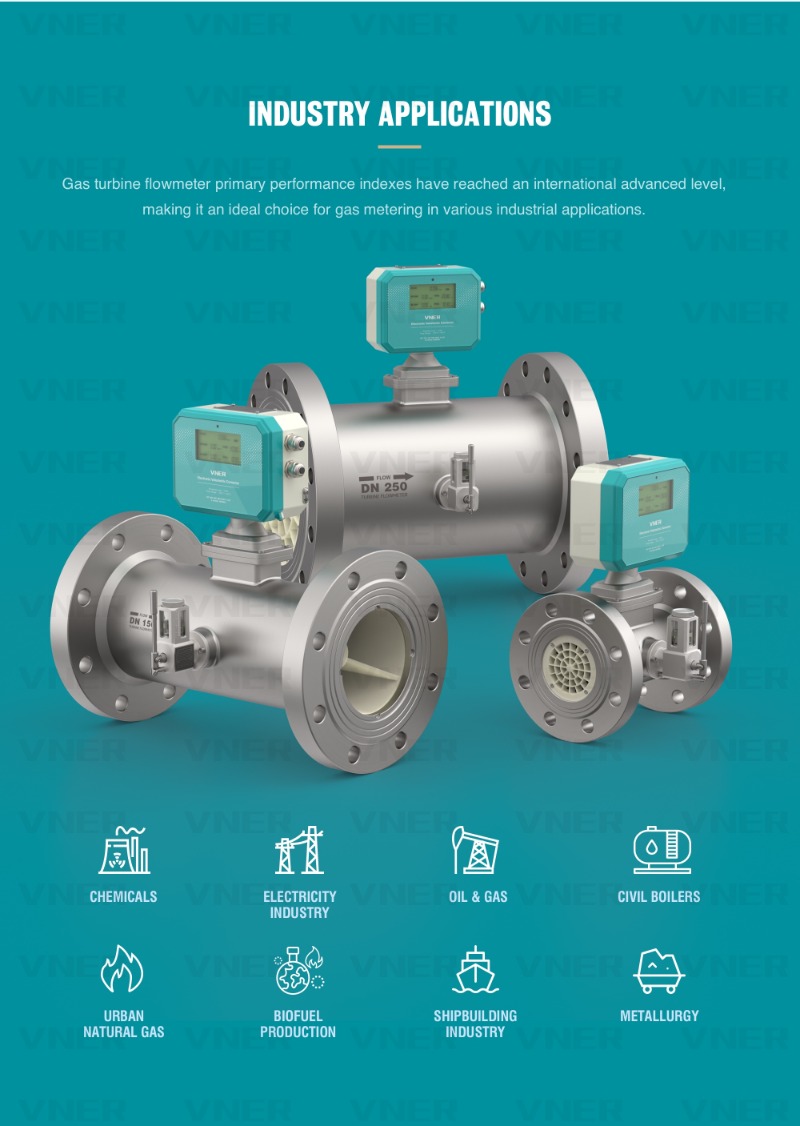

What are the applicable scopes and main application scenarios of the LWQ gas turbine flowmeter?

The LWQ gas turbine flowmeter is suitable for measuring the flow of a variety of gases, especially those in the low to medium flow range.

1. Natural Gas and Oil Industries: During natural gas transportation and oil production, the LWQ gas turbine flowmeter accurately measures the flow of natural gas or petroleum gas. These industries require flowmeters capable of withstanding high pressures and high flow rates, and turbine flowmeters, with their sensitive response and high accuracy, are a commonly used measurement tool in this field. In natural gas metering and transportation systems, accurate flow data is crucial for monitoring energy consumption and ensuring safety.

2. Chemical and Pharmaceutical Industries: The LWQ gas turbine flowmeter is also widely used in the chemical and pharmaceutical industries, particularly for the precise metering of gas raw materials and gaseous additives. In these industries, gas flow control directly impacts product quality and production efficiency. For example, gas turbine flowmeters can be used to precisely control and monitor industrial gases such as nitrogen, oxygen, and air, ensuring a stable gas supply during production.

3. Food and Beverage Industry: In the food and beverage industry, gas turbine flowmeters are commonly used to measure liquid-gas mixtures, particularly for gas supply and delivery. Gas flowmeters can be used in equipment requiring precise gas flow control, such as food packaging. The accuracy of gas turbine flowmeters ensures product quality control and helps manufacturers achieve energy savings.

4. Energy and Power Industry: In the energy and power generation sector, gas turbine flowmeters are used to measure the flow of various industrial gases, including combustion gases and exhaust gases. Due to their high accuracy requirements, turbine flowmeters are widely used in gas boilers, gas turbines, and power generation processes. Accurate gas flow measurement helps improve fuel utilization, reduce energy consumption, and minimize harmful gas emissions.

5. Municipal Engineering and Waste Gas Treatment: In municipal engineering and waste gas treatment, gas turbine flowmeters are primarily used for gas transportation, emission monitoring, and flow control during waste gas treatment. They accurately measure gas flow, ensuring that waste gas emissions meet environmental standards and prevent environmental pollution.

What precautions should be taken when maintaining and troubleshooting the LWQ gas turbine flowmeter?

The LWQ gas turbine flowmeter is a precision instrument requiring regular maintenance and inspection to ensure long-term stable operation and high accuracy. Since the turbine blades are the core component of a turbine flowmeter, they are susceptible to wear and damage from particles, moisture, or high pressure in the gas. Therefore, proper maintenance is crucial to extending the life of the equipment.

Jiangsu Vner Electronic Technology Co., Ltd. actively promotes intelligent upgrades in flowmeter manufacturing and has independently developed high-precision automated production equipment. The company fully implements digital intelligent manufacturing in the design, production, and assembly of its flowmeters, ensuring product consistency and reliability, thereby improving overall equipment stability and reducing the probability of failure.

1. Regularly check turbine blade wear: Turbine blades are the core component of gas turbine flowmeters. Prolonged use can lead to wear, corrosion, or dust accumulation. Jiangsu Vner Electronic Technology Co., Ltd. uses high-precision automated production and strict quality control to ensure that each flowmeter's turbine blades are meticulously processed and made of high-quality, wear-resistant and corrosion-resistant materials. Regularly checking turbine blade wear and replacing blades when necessary during operation are important measures to ensure measurement accuracy and long-term stability.

2. Clean and protect the turbine: In environments containing particulate matter, moisture, or corrosive gases, turbine blades may become contaminated, affecting their rotation and measurement accuracy. Regular cleaning is essential to maintaining the proper operation of turbine flowmeters. Jiangsu Vner Electronic Technology Co., Ltd.'s intelligent manufacturing system precisely controls and analyzes the flow characteristics of gas media to optimize turbine flowmeter design and reduce the risk of turbine blade contamination.

The company's green manufacturing philosophy is also reflected in its production process. Jiangsu Vner Electronic Technology Co., Ltd. not only focuses on improving product quality but also strives to reduce resource waste and environmental pollution. By using environmentally friendly materials and energy-saving production processes, the flowmeter ensures stable operation without compromising the environment, meeting green manufacturing standards.

3. Detecting Gas Medium Changes: The measurement accuracy of the LWQ gas turbine flowmeter may be affected by variations in gas temperature, pressure, and density. Therefore, regular inspection of gas medium properties and appropriate flowmeter adjustments and compensation are key to ensuring long-term stability and accuracy. Jiangsu Vner Electronic Technology Co., Ltd.'s digital intelligent manufacturing technology enables real-time monitoring of the flowmeter's operating status and automatically adjusts device parameters based on the flow characteristics of different gas media, minimizing the impact of environmental changes on measurement accuracy. Jiangsu Vner Electronic Technology Co., Ltd. fully considers the specific characteristics of fluid media in product design, particularly when handling variable-composition gases and special media. By optimizing sensors and control systems, the device ensures stable operation in harsh environments.

4. Checking Signal Output Stability: Turbine flowmeters use magnetic sensors, Hall-effect sensors, or other types of sensors to detect turbine rotation, generating a pulse or analog output signal. To ensure signal output accuracy and stability, regular inspection of the sensor's operating status is necessary. Jiangsu Vner Electronic Technology Co., Ltd.'s high-precision production equipment ensures perfect coordination between sensors and turbine flowmeters, ensuring consistently stable signal output and reducing measurement errors caused by sensor failure or signal interference.

The company's digital intelligent manufacturing approach enhances the overall performance of its flowmeters, giving them enhanced anti-interference capabilities and a longer service life. This intelligent upgrade not only improves operational efficiency but also reduces maintenance and troubleshooting.

5. Regular Calibration and Verification: LWQ gas turbine flowmeters require regular calibration to ensure measurement accuracy. Flowmeter accuracy may fluctuate under varying flow ranges, gas types, and temperature and pressure conditions. Jiangsu Vner Electronic Technology Co., Ltd. provides regular calibration services, utilizing its intelligent manufacturing system to precisely calibrate and adjust flowmeters to ensure they remain in optimal working condition.

The company also utilizes advanced automated testing equipment to rigorously control and verify the calibration of each flowmeter during production, ensuring that every unit shipped meets high accuracy standards. If users encounter accuracy issues during use, they can quickly troubleshoot through remote monitoring and technical support services provided by Jiangsu Vner Electronic Technology Co., Ltd.

6. Troubleshooting: During device operation, faults such as inaccurate display, signal loss, and poor turbine rotation may occur. Jiangsu Vner Electronic Technology Co., Ltd.'s technical team provides comprehensive after-sales support and troubleshooting services. Using intelligent systems and data analysis, the team can quickly locate the cause of the fault and provide remote diagnosis and repair guidance. For equipment requiring on-site repair, the company also provides timely on-site service to ensure the flow meter is quickly restored to normal operation.
