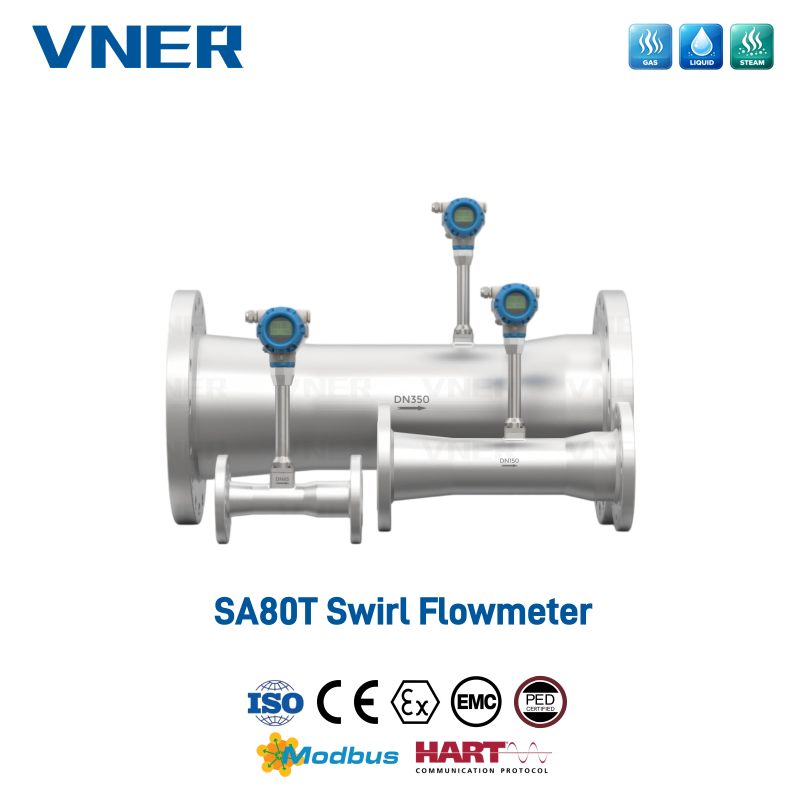

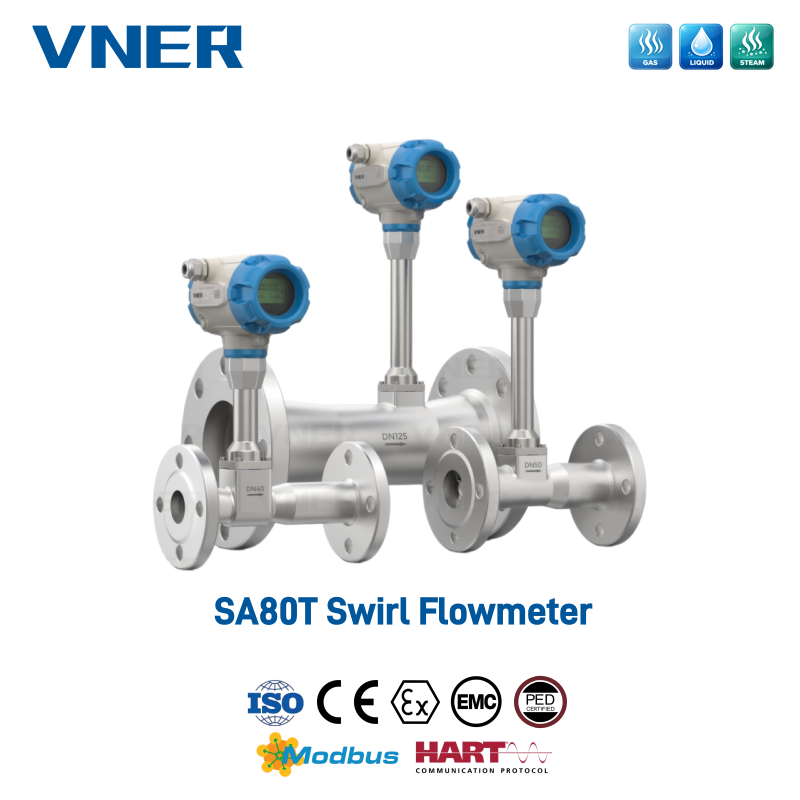

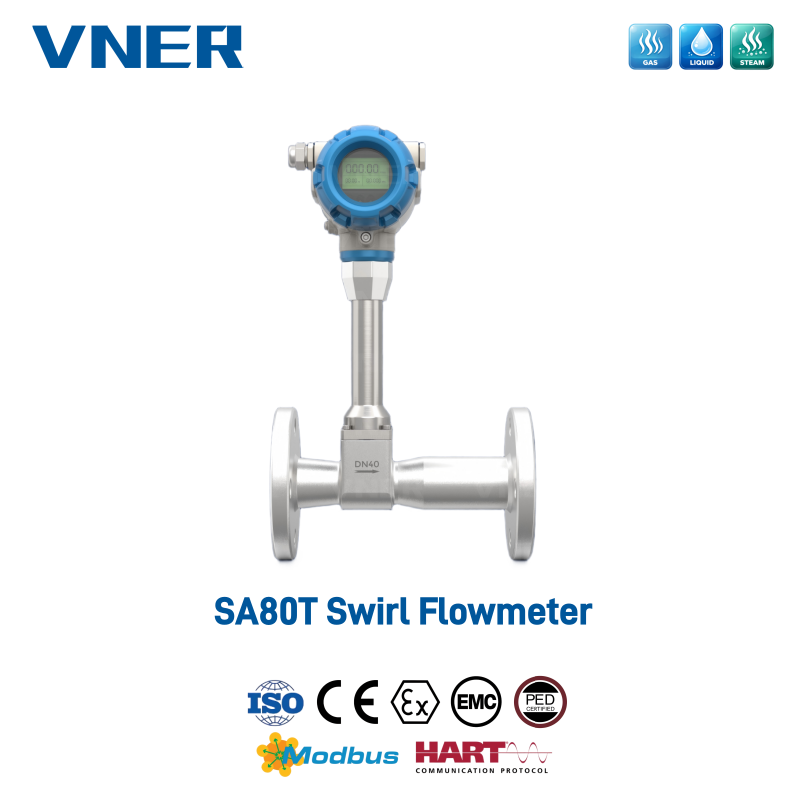

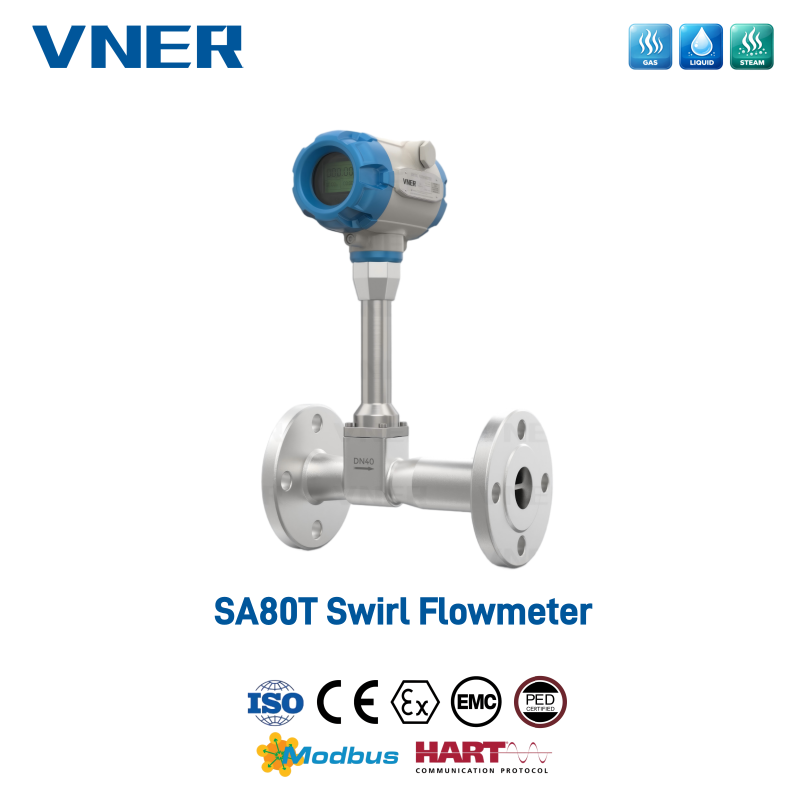

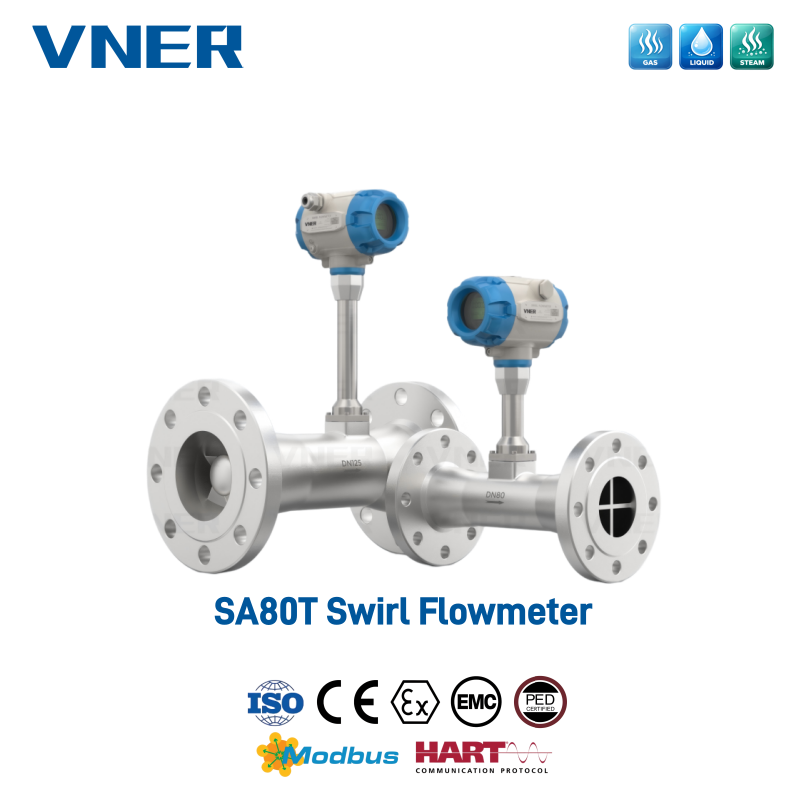

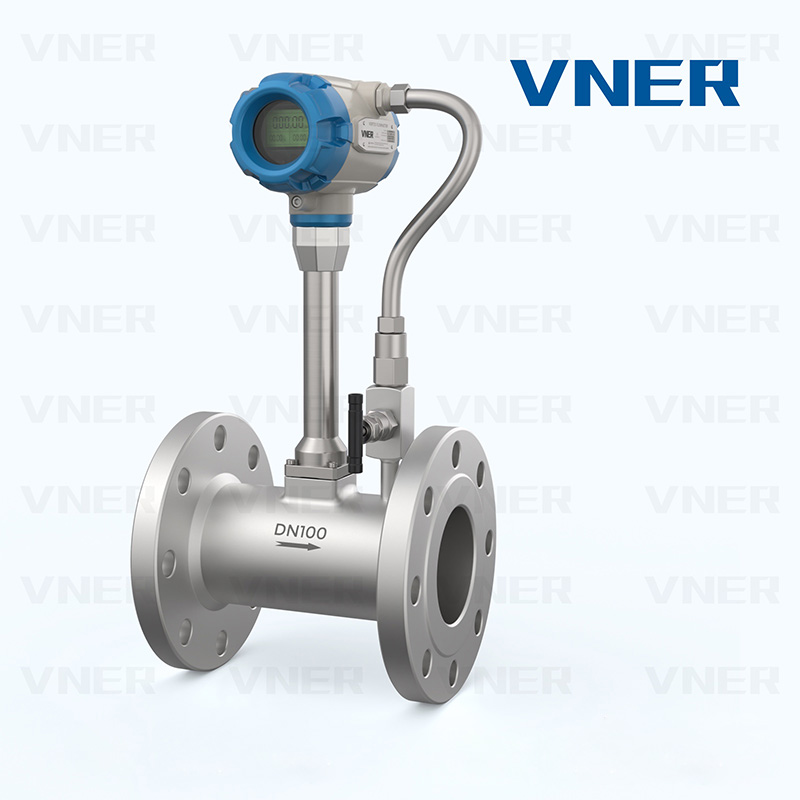

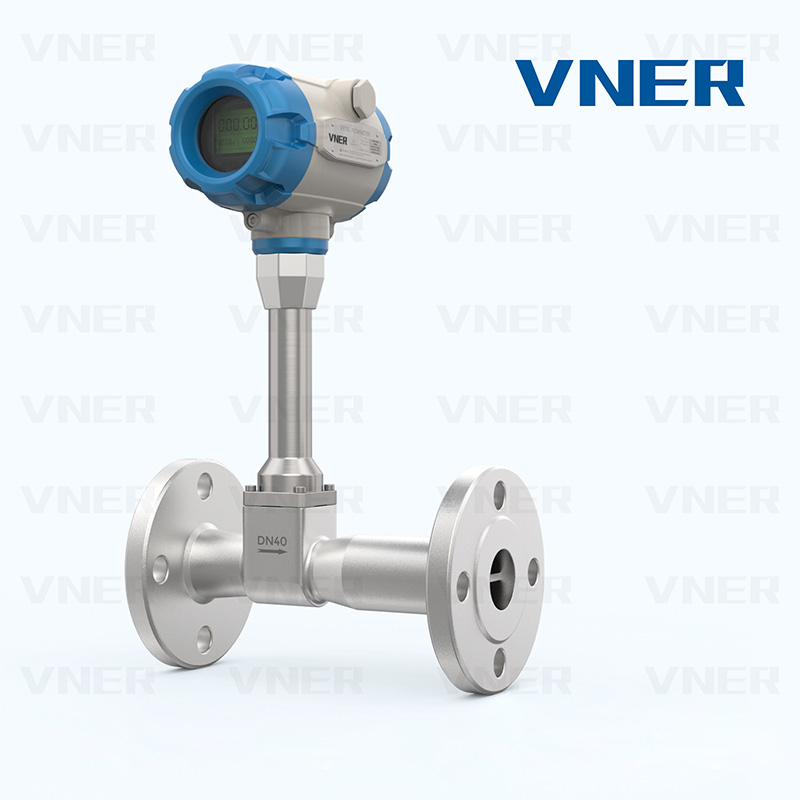

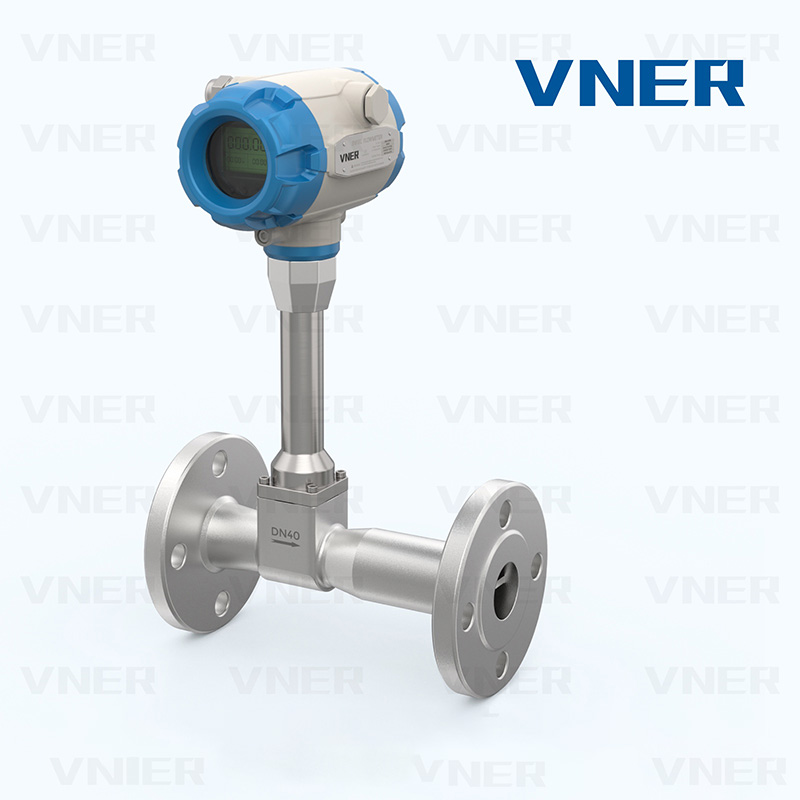

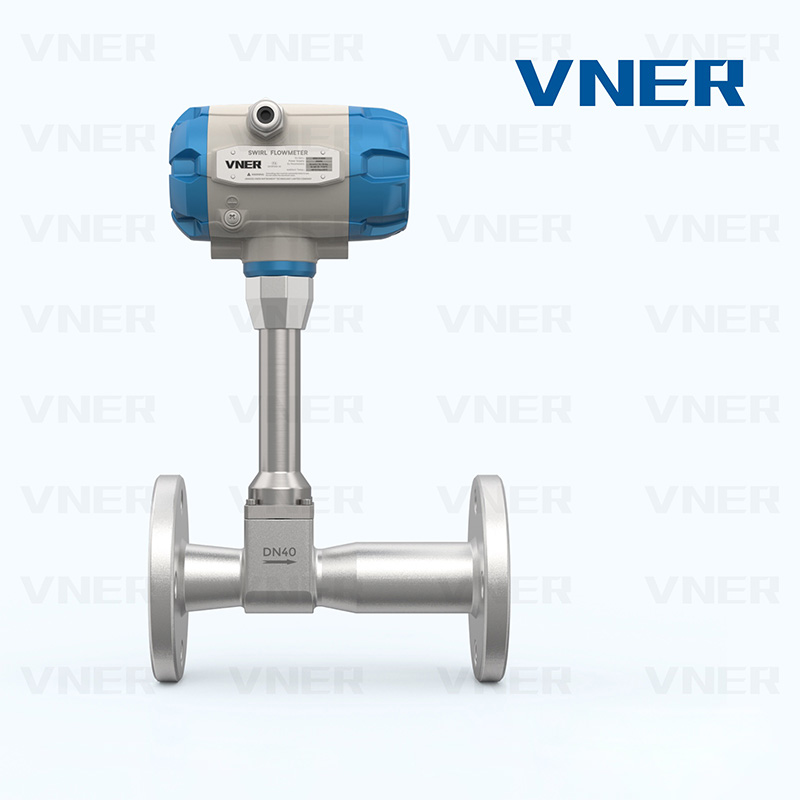

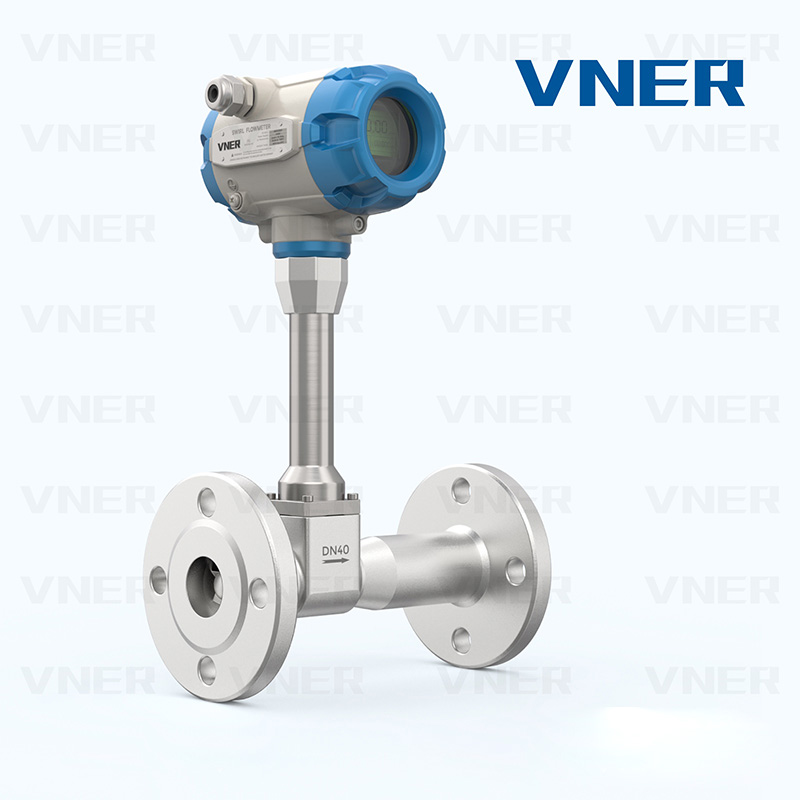

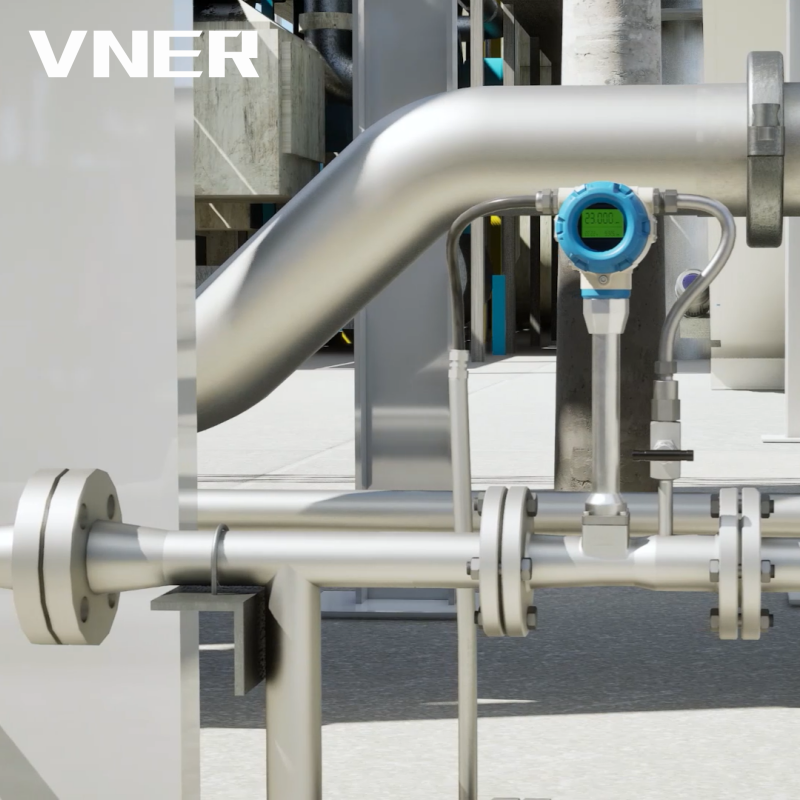

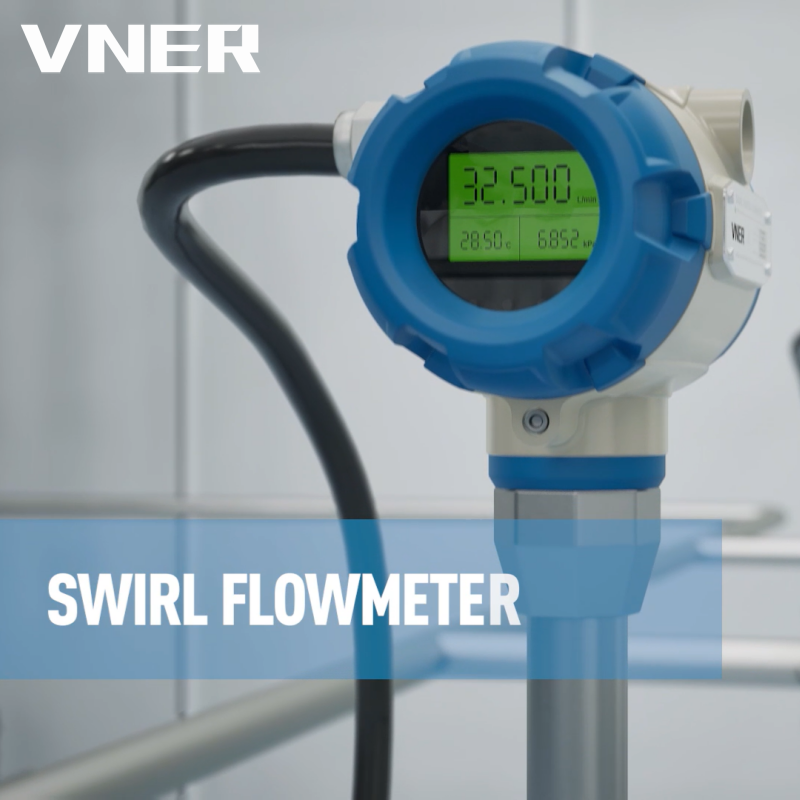

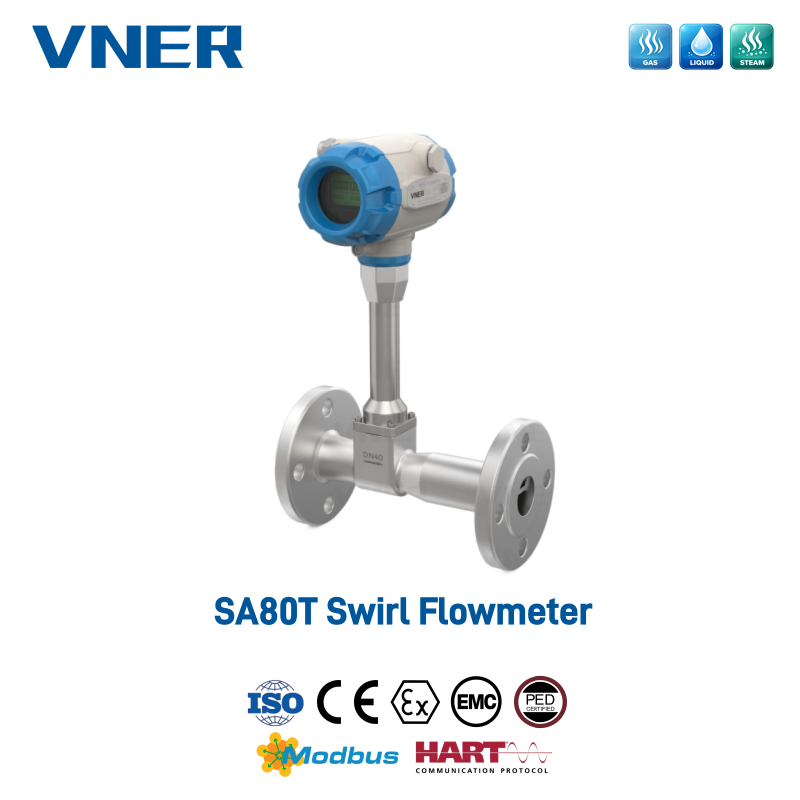

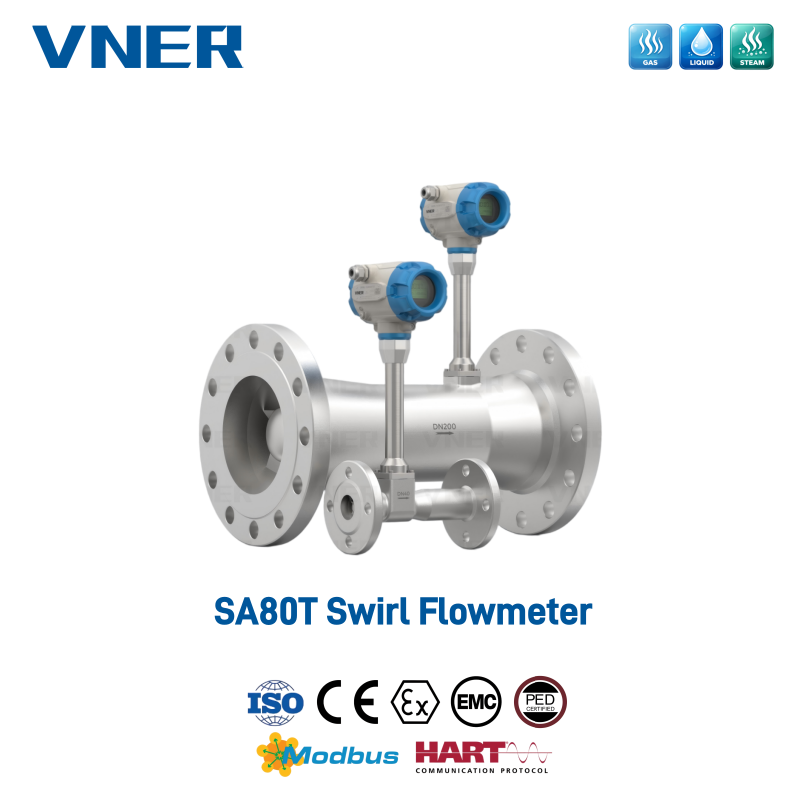

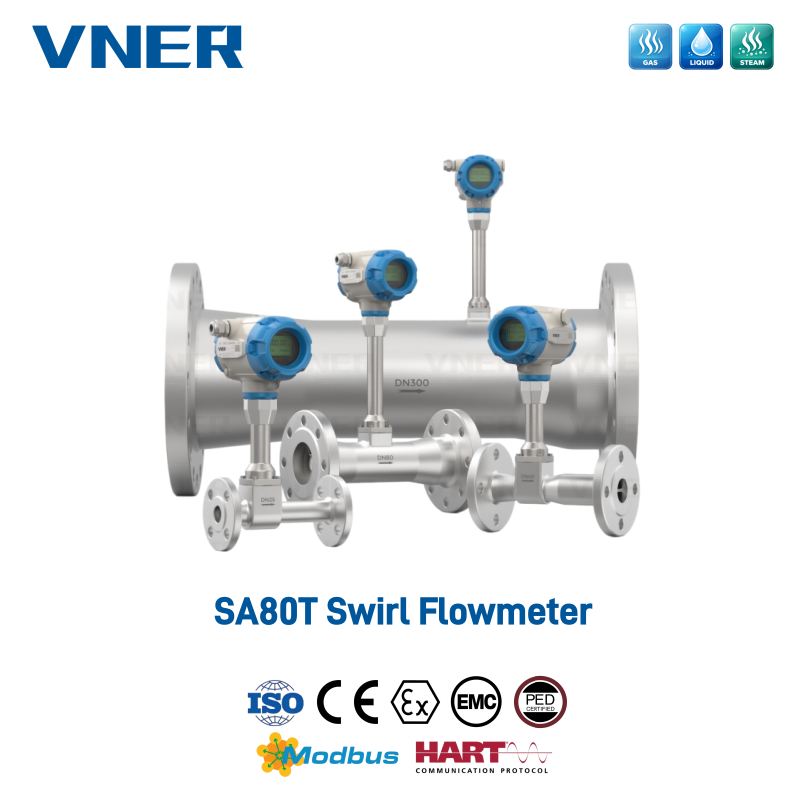

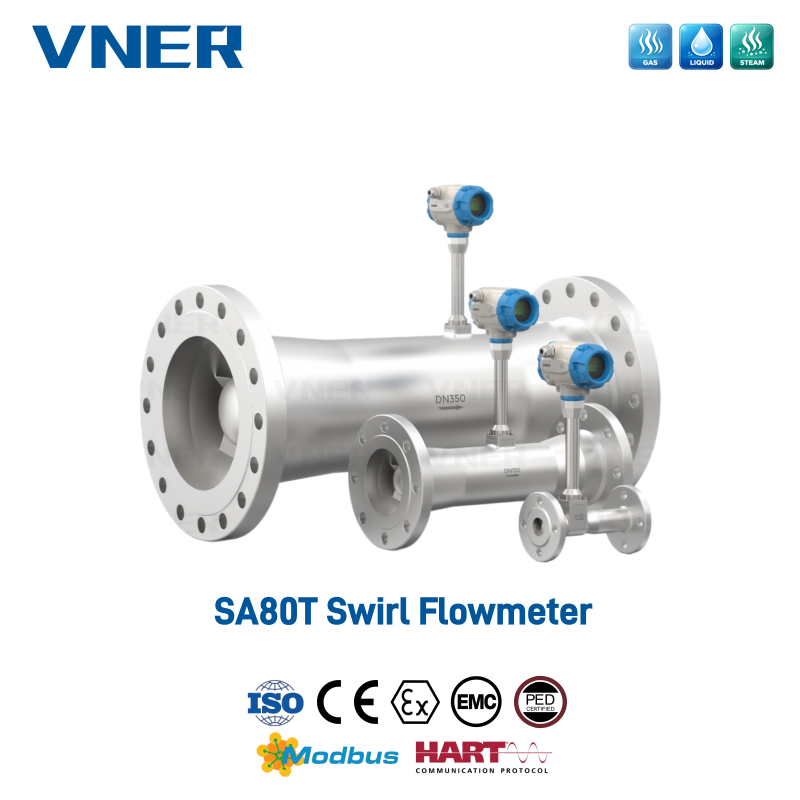

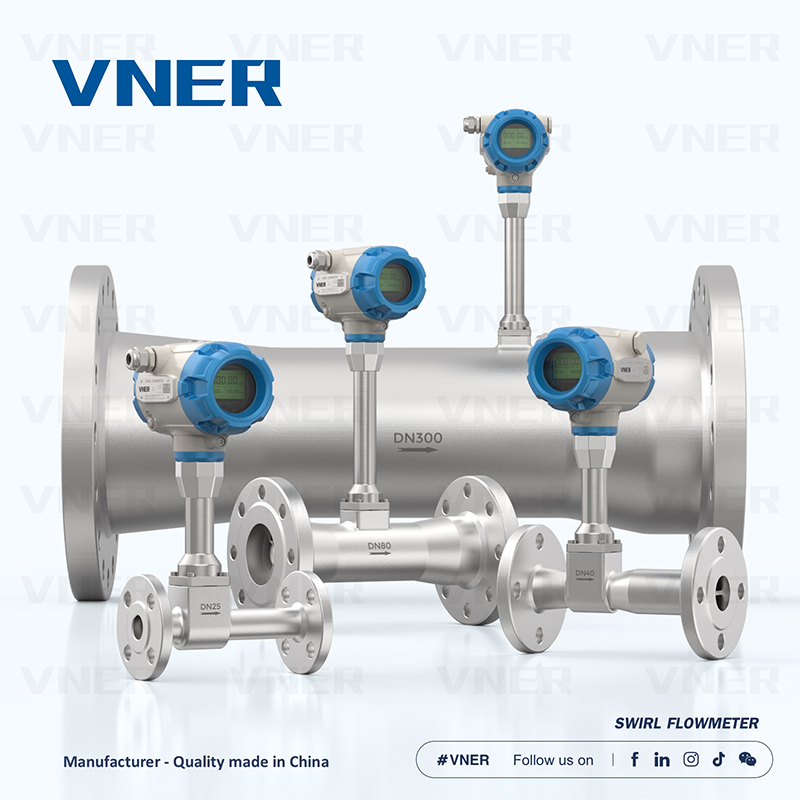

SA80T Series Swirl Flowmeter

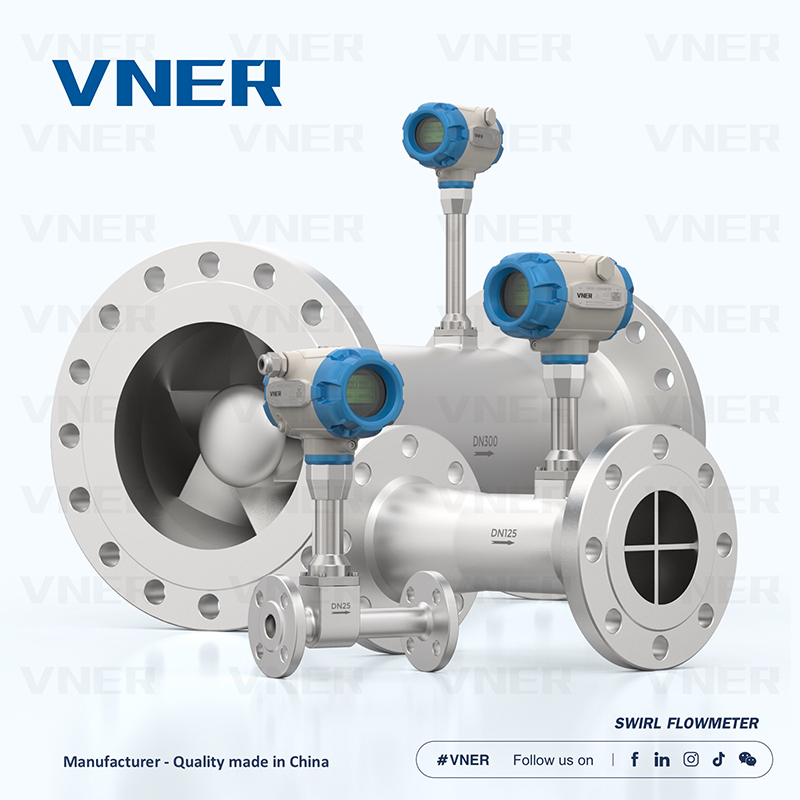

The SA80T Series Swirl Flowmeter operates based on the vortex precession principle. As fluid enters the flowmeter, it passes through a fixed swirl generator that imparts a rotational motion. This swirling flow subsequently develops into a secondary vortex precession downstream, whose frequency is directly proportional to the volumetric flow rate. The precession frequency is detected by a piezoelectric or capacitive sensor without contacting the process medium. This method enables precise, real-time flow measurement of clean or slightly contaminated liquids, gases, and saturated or superheated steam.

★ High Accuracy Measurement:
Provides stable and accurate flow readings with a typical accuracy of ±0.5% for liquids and ±1.0% for gases and steam, under calibrated conditions. Suitable for process control applications.
★ Wide Dynamic Range:
Turndown ratio up to 1:20 depending on medium and installation conditions. Performs reliably in fluctuating or variable load systems.
★ No Moving Parts:
Robust mechanical design without moving components reduces wear and extends service life, making it ideal for continuous operations.

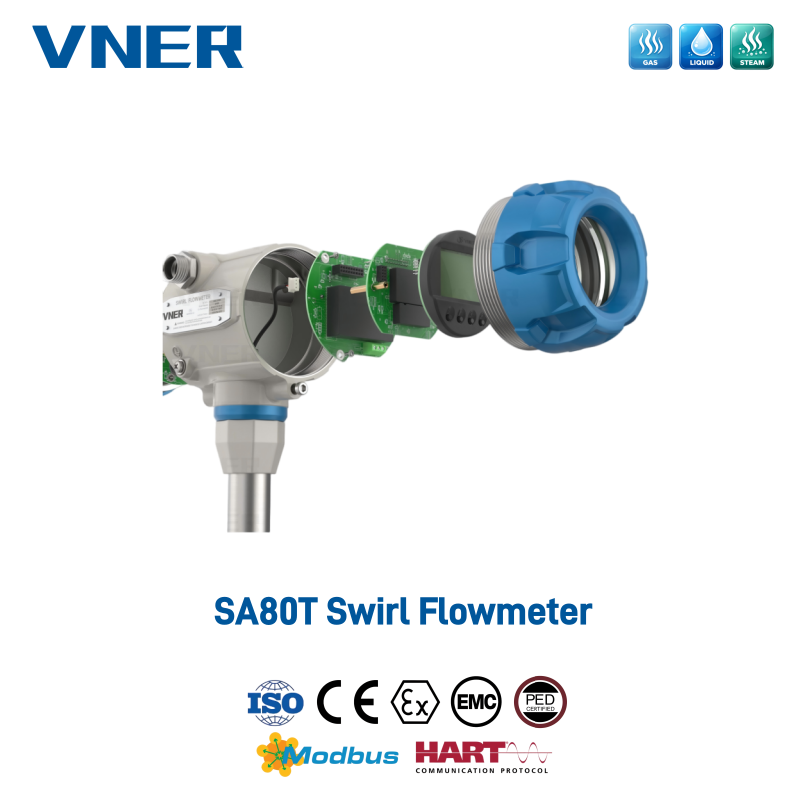

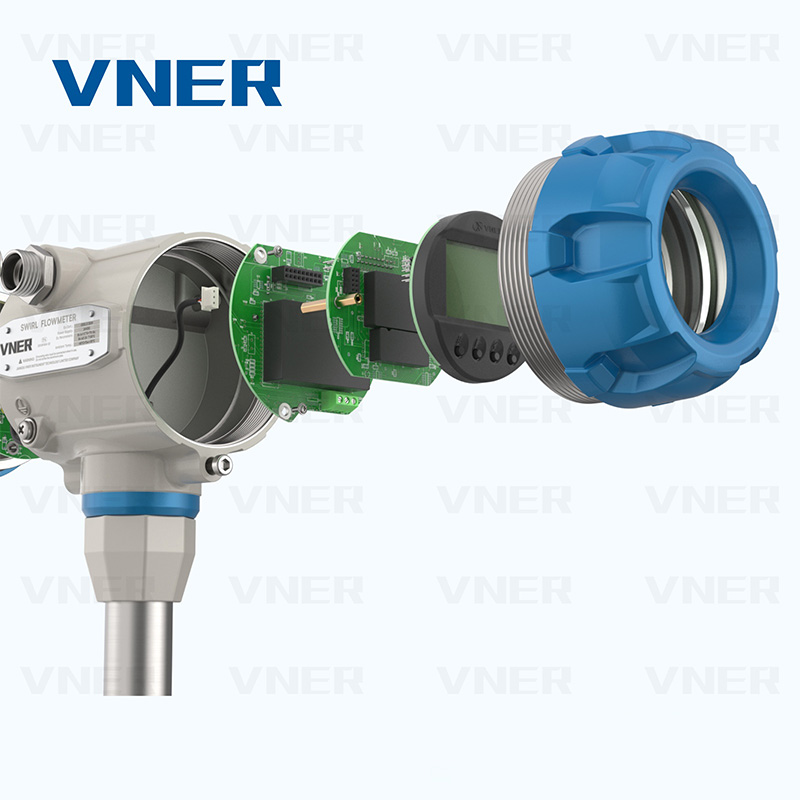

★ Integrated Signal Processing:
Built-in temperature and pressure compensation (optional) for mass or standard volume flow output. Available with analog (4-20 mA), pulse, HART, or Modbus RTU output.
★ Self-Diagnostics and Smart Configuration:
Supports fault detection, zero drift monitoring, and remote configuration via digital protocols.
★ High Temperature and Pressure Resistance:
Standard designs support up to 250°C and 4.0 MPa (optional: up to 400°C for steam with extended versions). Ideal for high-energy steam and thermal fluid systems.
★ Installation Optimization:
Require minimum upstream and downstream straight pipe runs (typically 3D/1D), significantly less than vortex meters.

★ Power Generation:
Saturated and superheated steam flow monitoring in boiler outputs
Cooling water circulation for turbines and heat exchangers

★ Chemical & Petrochemical
Compressed air, nitrogen, natural gas, and process vapor monitoring
Accurate dosing of liquid reactants under variable pressure and temperature

★ Oil & Gas
Steam injection in enhanced oil recovery (EOR)
Fuel gas monitoring in furnaces and process heaters

★ Pharmaceuticals

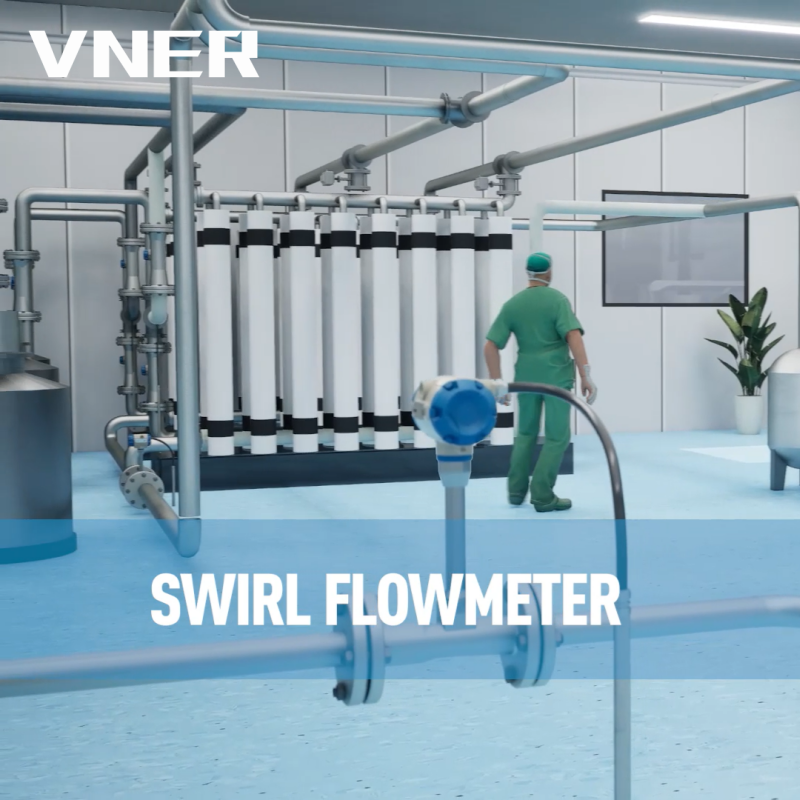

Measurement of clean steam in sterilization and SIP systems
Purified Water (PW) and Water for Injection (WFI) utilities monitoring

★ Food and Beverage
Carbon dioxide dosing in beverage lines
CIP/SIP solution metering and thermal media control

★ Pulp and Paper
Monitoring black liquor and white liquor flow for recovery boilers
High-temperature steam measurement for drying processes

★ Textile and Dyeing
Measurement of process water and dye liquors under stable and pulsating flow

★ Steel and Metallurgy
Cooling water flow monitoring in continuous casting and rolling lines
Furnace exhaust or shielding gas (e.g., argon, nitrogen) measurement

✬ Precise Gas Flow Control in Chemical Reactors:

Enables accurate control of process gas inputs (e.g., hydrogen, oxygen, nitrogen) in batch or continuous reactors, supporting stoichiometric balance, enhancing reaction yields, and ensuring process safety.

✬ Liquid Flow Regulation in Advanced Thermal Management Systems:

Measures and controls cooling or heating liquid flows (e.g., glycol-water mixtures, thermal oils) in temperature-sensitive processes such as semiconductor manufacturing, high-speed machining, or electronic cooling systems to prevent thermal runaway and ensure stable operating conditions.

✬ Steam Flow Monitoring for Boiler Efficiency Optimization:

Continuously monitors saturated or superheated steam flow in industrial boilers to optimize combustion control, improve thermal efficiency, and reduce overall fuel consumption and operational costs.
