Electromagnetic Flowmeter Selection: A Field Proven Guide (Liners, Electrodes, Conductivity)


Who this is for

Plant engineers, process designers, maintenance teams, and technical buyers who need a fast, reliable way to specify the right magmeter for real‑world conditions.

1) What a Magmeter Is (and Isn’t)

Electromagnetic flowmeters measure conductive liquids with no throttling element and no moving parts. They excel in abrasive and corrosive services and dominate municipal water & wastewater, chemical transfer, mining slurries, and hygienic processes (food & beverage, pharma).

  • Strengths: negligible pressure loss, wide DN range, stable accuracy, excellent chemical/abrasion options.
  • Limits: require minimum conductivity; not for hydrocarbons/ultra‑pure water unless using low‑conductivity designs.

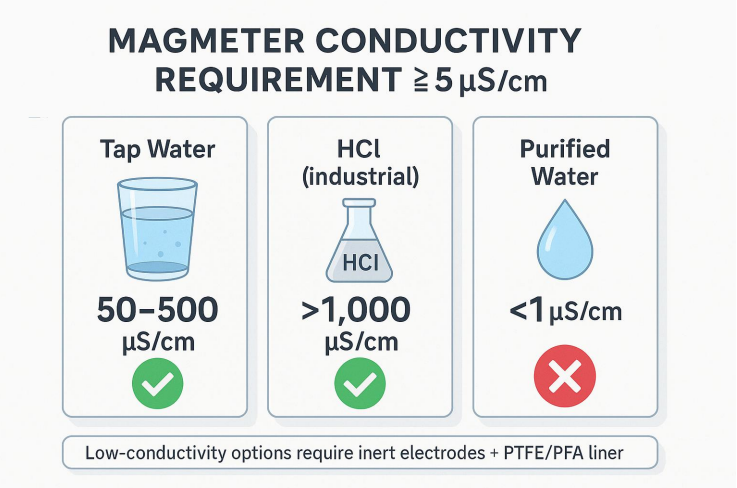

Conductivity Threshold (μS/cm)

Standard magmeters require ≥ 5 μS/cm. Typical references: Tap water: 50–500, HCl (industrial): >1,000, Purified water: <1 → not suitable.

Borderline cases may use inert electrodes (Pt‑Ir/Hastelloy C) with low‑adsorption liners (PTFE/PFA); confirm with the manufacturer.

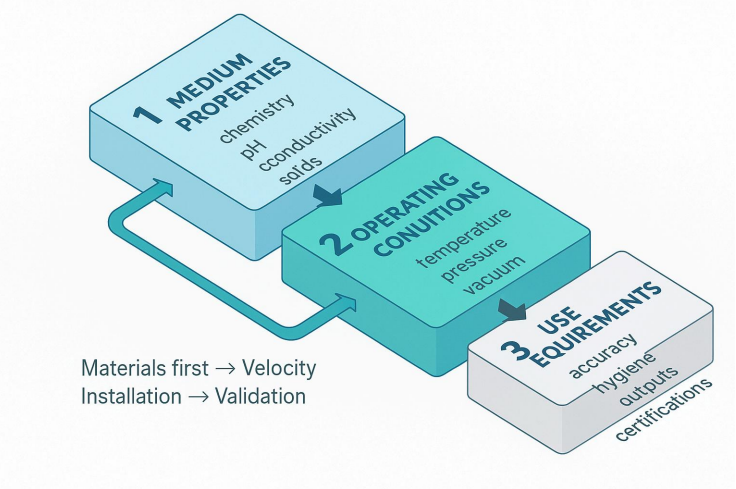

2) The 3‑D Selection Model

Selection isn’t a single parameter. Use a 3‑dimensional decision:

Medium Properties → Operating Conditions → Use Requirements

Most failures (liner attack, electrode failure, large errors) trace back to incomplete medium data or mis‑matched materials.

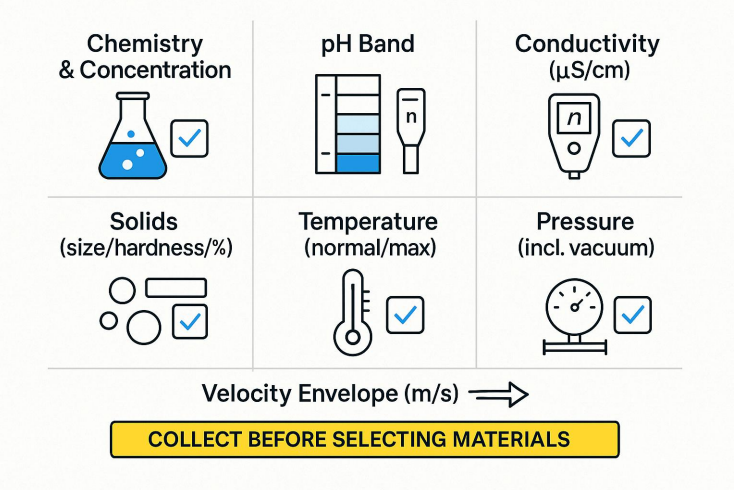

3) Step 1 — Build the Medium Profile (Non‑negotiable Data)

Collect this before choosing materials:

  • Chemistry & concentration: include trace ions (F⁻/Cl⁻) and oxidizers.
  • pH band: strong acid (<2), weak acid (2–6), neutral (6–8), weak alkali (8–12), strong alkali (>12).
  • Conductivity: confirm ≥ 5 μS/cm unless using low‑conductivity options.
  • Solids: size / hardness / volume %. Quartz or ≥1 mm → abrasion‑resistant liners.
  • Temperature: normal and extremes (CIP/SIP, sun‑heated runs).
  • Pressure: positive and vacuum (liners can collapse if not rated).
  • Velocity envelope: plan for 1–3 m/s (clean service). <0.5 m/s deposits; >5 m/s erosion/noise (abrasive service often 2–4 m/s).

4) Step 2 — Choose the Liner (Corrosion & Temperature First)

Priority: Corrosion resistance → Temperature → Abrasion → Pressure.

Liner

Strengths

Limits / Notes

Typical Uses

PTFE

Broad chemical resistance; low adhesion

−20…180 °C; vacuum‑rated versions available

Strong acids/alkalis, CIP

PFA

PTFE‑like; smoother; very inert

−20…180–200 °C; higher cost

High‑purity/sticky media

FEP/ETFE

Durable; good chemical window

Lower T than PTFE/PFA

General chemicals, wastewater

Hard rubber (CR/NBR)

Cost‑effective for neutral/weak media

≤ ~80 °C; avoid strong oxidizers/solvents

Water, wastewater

Polyurethane

Excellent abrasion resistance

−10…80 °C; limited chemical resistance

Slurries (sand, tailings)

Ceramic

Outstanding abrasion; smooth bore

Brittle; check T, mounting, shock

Highly abrasive mining slurries

Vacuum & thermal cycling

Specify vacuum‑rated liners if sub‑atmospheric pressure is possible. For large ΔT/ΔT·h, ensure liner/electrode CTE compatibility and respect the product’s T–P rating curve.

5) Step 3 — Match the Electrodes to the Chemistry (and Liner)

Electrode Best‑fit Services Cautions / Notes
316L SS Non‑aggressive water, many hygienic liquids Pitting in high chlorides/oxidizers
Hastelloy C‑276 Chlorides, oxidizing/mixed acids Robust “default” for tough chemicals
Titanium Seawater, hypochlorite/oxidizers Avoid strong reducing acids
Tantalum Strong acids incl. HCl/H₂SO₄ (not HF) Do not use with HF/fluorides
Platinum‑Iridium Highly inert; low‑conductivity specialty Highest cost; use when others fail
Hard‑metal/ceramic tips Abrasive slurries Avoid empty‑pipe (impact risk)

Quick cues

  • Bleach (NaOCl) → PTFE/PFA + Hastelloy C / Titanium.
  • HCl without F⁻ → PTFE/PFA + Tantalum / Hastelloy C.
  • HCl with F⁻ → PTFE/PFA + Hastelloy C / Pt‑Ir (avoid Ta).
  • Hot/strong NaOH → PTFE/PFA + Hastelloy C (316L only for mild/cool caustic).
  • Abrasive slurry → Polyurethane/Ceramic liner + robust electrodes; size for 2–4m/s.

6) Size for Velocity (not for Pressure Drop)

Magmeters add negligible head loss. Size the meter so normal operating velocity lands in the target band.

  • Clean liquids: 1–3m/s (quiet, stable, low fouling).
  • Abrasive: 2–4m/s to self‑clean; cap peaks to limit erosion.
  • Low‑conductivity: modestly higher velocity can improve SNR.
  • Very low flows: consider downsizing (reducers) to reach target velocity.

One‑minute sizing example

Given 20m³/h in DN50 (ID ≈ 52.5mm):

Area A = π·(0.0525²)/4 ≈ 0.00217m² → v = Q/A = 20/3600 / 0.00217 ≈ 2.56m/s → within abrasive band; for clean service, consider DN65.

7) Install for Signal Quality

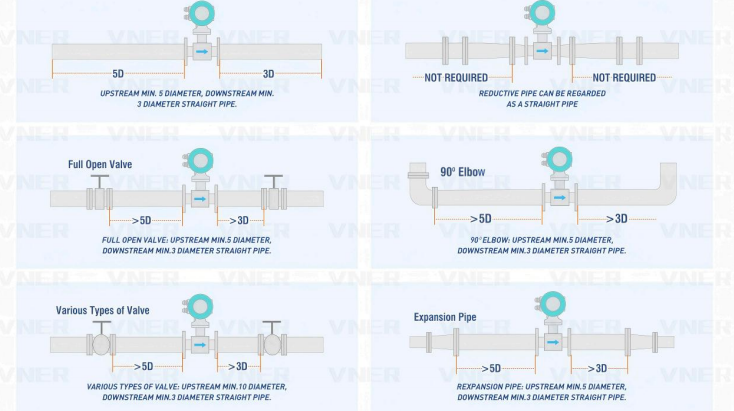

  • Straight runs: 5–10D upstream, 2–3D downstream (more after elbows/valves/reducers).
  • Orientation: horizontal with electrodes at 3 & 9 o’clock; vertical up‑flow preferred.
  • Keep pipe full: enable empty‑pipe detection; avoid entrained air.
  • Grounding: grounding rings/electrodes for a stable reference.
  • Gaskets & sleeves: liner‑compatible; avoid intrusion into the bore.
  • Fouling media: prefer smooth liners (PTFE/PFA) and proper velocity

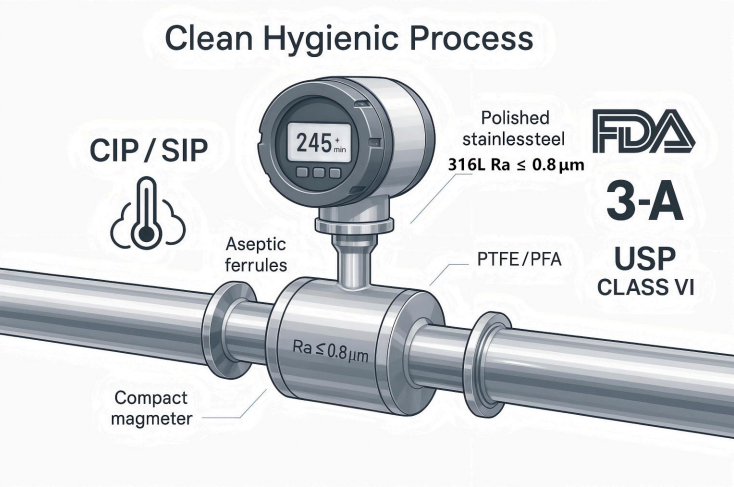

8) Sanitary (Food & Pharma)

  • Wetted parts: 316L; PTFE/PFA liners; polished electrodes (e.g., Ra ≤ 0.8μm; specify ≤ 0.4μm if needed).
  • Connections: Tri‑Clamp, DIN11851, aseptic ferrules; define surface finish.
  • CIP/SIP: verify detergent and steam limits (time/temperature).
  • Compliance: FDA/3‑A/USP ClassVI/material traceability; seamless liner designs to avoid hold‑up.

9) Quick Selection Matrix (Starting Points — verify datasheet)

  • Municipal water / wastewater → Liner: Rubber / ETFE / PTFE; Electrode: 316L (upgrade to HastelloyC for strong oxidizers).
  • 30% HCl (chemical)PTFE/PFAHastelloyB/C / Tantalum (do not use 316L).
  • 20% NaOH (chemical)FEP/PTFE + HastelloyC (316L for <10% and cool).
  • Neutral mining slurryPolyurethane or Ceramic + hard‑metal electrodes; 2–4m/s; vertical install.
  • Acid leach slurryCeramic + Tantalum (monitor pH; avoid F⁻ with Ta).
  • Industrial organic wastewater (e.g., ethanol)FEP/PTFE + HastelloyC; confirm explosion protection.
  • Bleach dosingPTFE/PFA + HastelloyC/Titanium.
  • Hot boiler make‑up (100–150 °C)PFA/Ceramic + Titanium; insulate; ensure low ground resistance.
  • Chilled brine (CaCl₂, −20…5 °C)PTFE/FEP + Titanium; confirm low‑temperature liner toughness

10) Validate Before You Buy (Avoid Costly Surprises)

  • Materials compatibility: check corrosion data at actual concentration & temperature (target ≤ 0.1mm/year).
  • Temperature–pressure curve: respect liner de‑rating (e.g., PTFE pressure limit at elevated T).
  • Special conditions: vacuum rating; thermal cycling (ΔT/h); liner/electrode CTE match.
  • Vendor sign‑off: provide complete medium/conditions; request a fitness report. For critical points, do immersion tests (e.g.,72 h electrode soak).

11) Common Pitfalls & Fixes (with Outcomes)

  • Ignoring trace impurities (e.g., F⁻ in HCl) → wrong electrode; rapid failure.
    Fix: full composition incl. trace ions; select Ta/Hastelloy C/Pt‑Ir as needed.
  • Under‑rating temperature/pressure → liner aging or bulging.
    Fix: select on extremes (e.g., max T +10 °C, max P +20%); follow T–P curve.
  • Underestimating abrasion → fast liner wear in slurries.
    Fix: Polyurethane/Ceramic liners, correct velocity/orientation.
  • Buying on lowest price → frequent change‑outs; high downtime.
    Fix: evaluate lifecycle cost (capex + 5‑year maintenance).
  • Missing sanitary details → hold‑up and contamination risks.
    Fix: seamless liners, polished electrodes, documented compliance.

12) RFQ / Sizing Checklist (Attach to Your Inquiry)

  1. Medium & concentration, pH, conductivity (μS/cm)
  2. Solids: size / hardness / % vol. (if any)
  3. Flow range (min/normal/max), accuracy target, preferred velocity band
  4. Temperature (normal/max), Pressure (max, any vacuum)
  5. Pipe size/standard/material, straight‑run availability, orientation
  6. Power & outputs (4–20mA/HART, pulse, RS‑485), IP/ex‑proof
  7. Hygienic needs (surface finish, connections, CIP/SIP)
  8. Documentation (calibration, MTRs) & regional certifications

13) FAQ

Q1. Can magmeters measure ultra‑pure water?

Only with low‑conductivity designs and careful validation. Standard units require ≥5μS/cm.

Q2. What if my line sees vacuum or rapid temperature swings?

Use vacuum‑rated liners and check CTE matching/ΔT limits.

Q3. How often should I calibrate?

Typical service: yearly. Critical custody/dosing: 6 months or per site policy.

Q4. How do I minimize wear in slurries?

Pick abrasion‑resistant liners (Polyurethane/Ceramic), keep 2–4m/s velocity, vertical up‑flow.

Conclusion (The Order That Works)

  1. Materials first (liner + electrodes) from a complete medium profile.
  2. Size for velocity (not pressure drop).
  3. Install for signal quality (straight runs, full pipe, grounding).
  4. Validate against the T–P curve, vacuum, and thermal cycling.

Following this order turns magmeter selection into a repeatable engineering process that delivers accuracy and lowers lifecycle cost.
