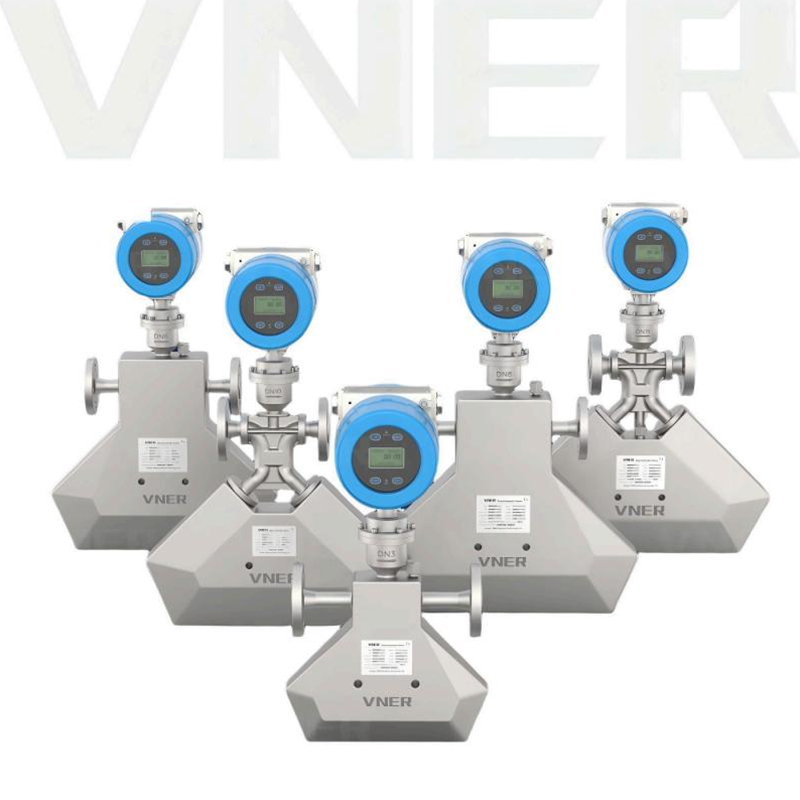

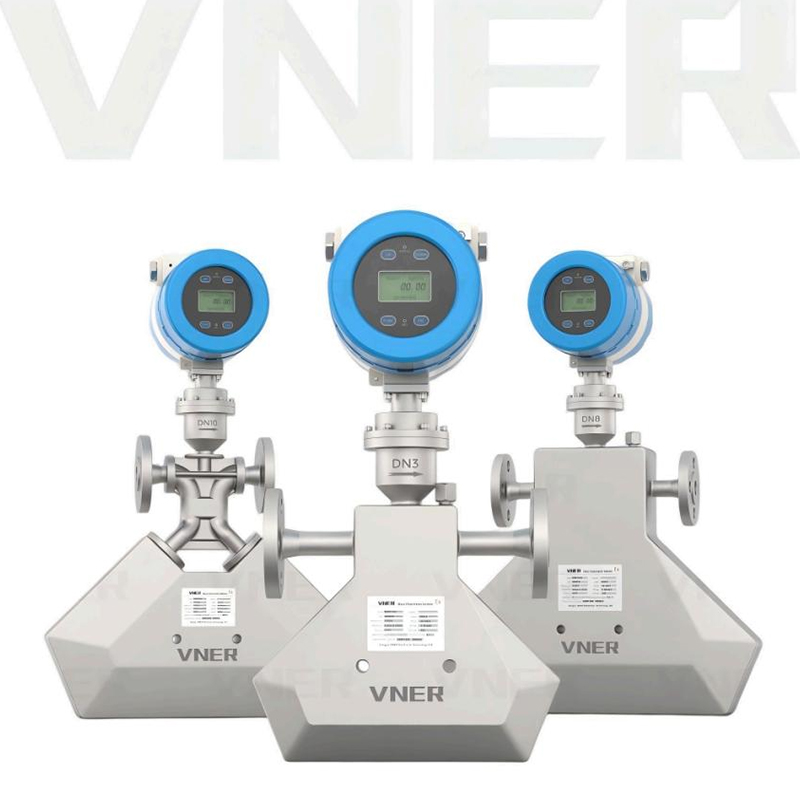

The KSMF-T Series Coriolis Mass Flowmeters are small-bore Coriolis meters with a triangular measuring-tube geometry, designed for high-precision mass flow and density measurement at low to medium flow rates. Based on the Coriolis effect and controlled mechanical vibration, KSMFT directly measures mass flow, density and process temperature for liquids, gases and liquefied gases. The triangular tube arrangement improves mechanical stability and vibration resistance, helping to maintain signal quality and accuracy even under fluctuating process conditions or external vibration.
With nominal diameters from DN3 to DN15 and flow rates up to 4,500 kg/h, KSMFT is particularly suited to dosing, injection and small-line process measurement in oil & gas, petrochemical, chemical, pulp & paper and new-energy applications.
| Item | Description |
| Measuring principle | Triangular dual-tube Coriolis; phase shift proportional to mass flow |
| Measured variables | Mass flow, density, process temperature; calculated volume / standard volume |
| Measured media | Liquids, gases and liquefied gases, including high-viscosity liquids, suspensions and selected gas–liquid mixtures (within Coriolis limits) |
| Nominal diameters | DN3...DN15 (approx. 1/8"...1/2") |
| Nominal flow range | 0...4,500 kg/h across the series (model-dependent) |
| Accuracy classes (mass/volume) | ±0.10 %, ±0.15 %, ±0.20 %, ±0.50 % of rate (application- and model-dependent) |
| Repeatability | Typically 0.05...0.10 % of rate |
| Density range & accuracy | 0.3...3.0 g/cm³; density accuracy up to ±0.002 g/cm³ (liquid service) |
| Connection types | Flanged, threaded, Tri-Clamp and fitting-type options |
| Connection standards | DIN, ANSI/ASME, JIS |
| Process temperature ranges | Low: -200...+200 °C; Normal: -50...+200 °C; High: -50...+300 °C (sensor option-dependent) |
| Pressure ratings | Standard: 0...4 MPa; high-pressure options 25...40 MPa (model-dependent) |
| Wetted materials | SS316L as standard; Hastelloy and Titanium options |
| Meter body materials | Stainless steels 304 / 316L |
| Ingress protection | IP67 |
| Explosion protection | Ex d explosion-proof options available |
| Power supply | 25 V DC, 220 V AC, or wide-range 22...245 V supply options |
| Outputs | 4–20 mA and pulse output as standard |
| Communication protocols | Modbus (RS-485), HART |
| Certifications | ISO, PCEC, CE, ATEX, SIL (model- and region-dependent) |
| Category | Specification / Option | Notes |
| Core performance | High-accuracy mass and density measurement with excellent repeatability | Suitable for process control, and where approved, commercial metering |
| Geometry | Triangular dual-tube measuring section | Enhanced mechanical rigidity and vibration resistance |
| Flow profile sensitivity | No upstream/downstream straight runs required | Largely independent of flow profile and piping layout |
| Turndown ratio | Up to 1:50 turndown (application-dependent) | Recommended working range typically 1:20 for best stability |
| Pressure loss | Streamlined flow path for low differential pressure | Important for small lines and dosing systems |
| Media capability | High-viscosity liquids, suspensions, gas-liquid mixtures, medium/high-pressure gases | Within Coriolis applicability; composition-dependent |
| Measurement modules | Optional modules for concentration, composition, viscosity, bidirectional and batch measurement | Supports dosing, injection and recipe control applications |
| Analog outputs | 4-20 mA | Assignable to main process variables |
| Pulse / frequency outputs | Pulse output for totalizing and batch control | For small-batch dosing and loading operations |
| Digital communication | Modbus RS-485, HART | Integration with DCS / PLC / RTU and skid controllers |
| Installation flexibility | Flanged, threaded, Tri-Clamp and fitting-type; horizontal or vertical | Suited for compact skids and retrofit in existing lines |
| Protection & safety | Ex d explosion-proof, IP67 | For harsh industrial and classified areas (as per certificate) |
| Industry | Medium / Service | Typical Use |
| Oil & Gas | Chemical injection, corrosion inhibitors, demulsifiers, specialty fluids | High-accuracy low-flow injection and dosing in upstream and downstream processes |
| Petrochemical & Refining | Catalysts, additives, solvents, small process streams | Precise mass-based side-stream, sample line measurement and dose control |
| Chemical Industry | Acids, alkalis, solvents, polymer additives, reaction feeds | Dosing skids, reactor feed lines and small-line process control |
| Pulp & Paper | Bleaching chemicals, sizing agents, reaction aids | Low-flow chemical dosing to critical process stages |
| New Energy & Alternative Fuels | Bio-components, additives, specialty fluids for new energy processes | Dosing and blending of high-value additives and small process streams |
| General Process & Utilities | High-pressure gases, liquefied gases, specialty liquids | Utility gas metering, liquefied-gas injection and small-line mass flow control |
As China KSMF T-Series Coriolis Mass Flowmeter Manufacturers and KSMF T-Series Coriolis Mass Flowmeter Factory, we are renowned for manufacturing professional and high-precision industrial instruments. Our expertise lies in providing unparalleled flow measurement resources, backed by over 12 years of experience solving complex applications.
Our precision flow metering devices are used by a diverse range of users, ranging from major oil and gas companies to photovoltaic providers, pharmaceutical manufacturers, and municipal services. We continuously contribute to the development of flow measurement in the domestic energy and chemical industries due to our expertise in measuring variable component gases and peculiar mediums.
