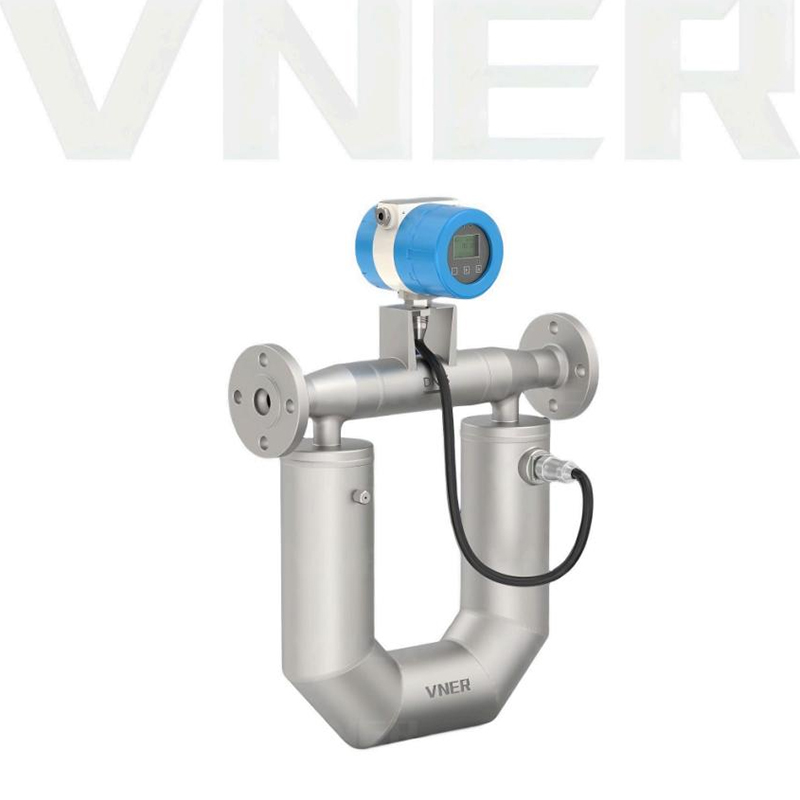

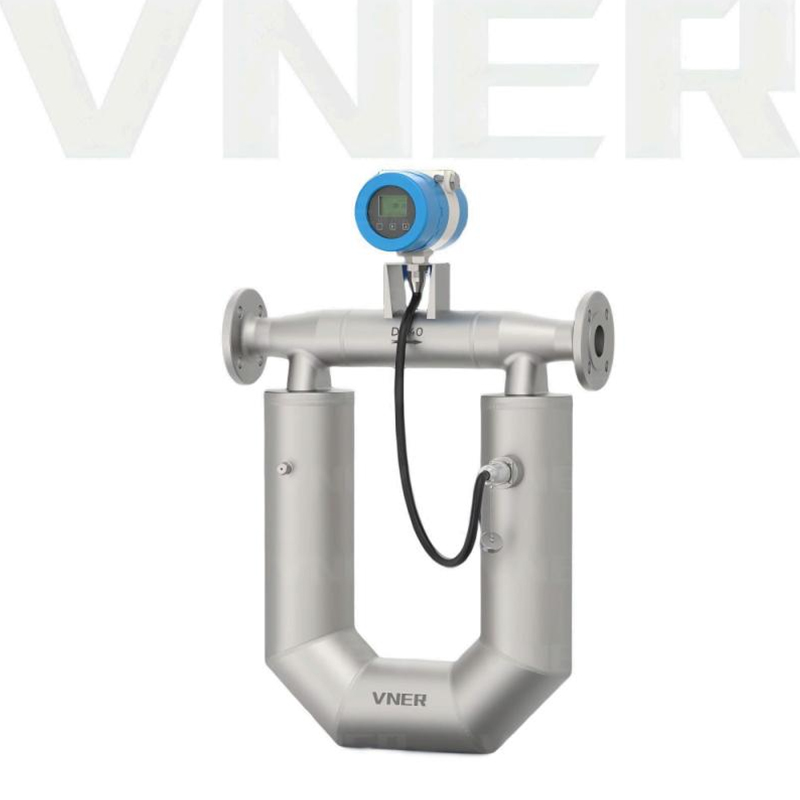

The KSMF-U Series Coriolis Mass Flowmeters are high-precision instruments based on the Coriolis effect and controlled mechanical vibration. The U-shaped dual-tube design provides high sensitivity, stability and robustness over a very wide flow range, while minimising installation constraints and impact on the process.
KSMF-U meters directly measure mass flow, density and temperature of liquids, gases and liquefied gases, with no need for upstream or downstream straight pipe runs and very low dependence on flow profile. With nominal sizes up to DN300 and flow rates up to 2,040,000 kg/h, they are particularly suited to industrial process control and commercial metering in heavy-duty applications.
| Item | Description |
| Measuring principle | U-shaped dual-tube Coriolis; phase shift proportional to mass flow |
| Measured variables | Mass flow, density, process temperature; calculated volume / standard volume |
| Measured media | Liquids, gases and liquefied gases, including high-viscosity liquids, suspensions and gas-liquid mixtures (within Coriolis application limits) |
| Accuracy classes (mass/volume) | ±0.10 %, ±0.15 %, ±0.20 % of, ±0.50 % of rate (application- and model-dependent) |
| Repeatability | Typically 0.05...0.10 % of rate |
| Density range & accuracy | 0.3...3.0 g/cm³; density accuracy up to ±0.002 g/cm³ (liquid service) |
| Nominal flow range | 0...2,040,000 kg/h across the series (model-specific) |
| Nominal diameters | DN20...DN300 (approx. 3/4"...12") |
| Connection types | Flanged, threaded, Tri-Clamp and fitting-type variants |
| Connection standards | DIN, ANSI/ASME, JIS |
| Process temperature ranges | Low: -200...+200 °C; Normal: -50...+200 °C; High: -50...+300 °C (option-dependent) |
| Pressure ratings | Standard: 0...4 MPa; high-pressure options 25...40 MPa (model-dependent) |
| Wetted materials | Stainless steel 316L as standard; Hastelloy and Titanium options for aggressive or demanding media |
| Meter body materials | Stainless steels 304 / 316L |
| Ingress protection | IP67 |
| Explosion protection | Ex d explosion-proof variants available |
| Power supply | 24–26 V DC; 220 V AC; wide-range 22...245 V supply options |
| Outputs | 4–20 mA and pulse output as standard |
| Communication protocols | Modbus (RS-485), HART |
| Certifications | ISO, PCEC, CE, ATEX, SIL (depending on model and region) |
| Category | Specification / Option | Notes |
| Core performance | High-accuracy mass and density measurement with excellent repeatability | Suitable for both industrial control and commercial / transactional metering where approvals are in place |
| Flow profile sensitivity | No requirement for upstream or downstream straight pipe runs | Largely independent of flow profile and pipeline layout |
| Turndown ratio | Up to 1:50 turndown (application- and model-dependent) | Best stability typically within a 1:20 working range |
| Pressure loss | Designed for low differential pressure at nominal flow | Important for large-diameter lines and high-capacity systems |
| Media capability | High-viscosity liquids, suspensions, gas-liquid mixtures, and medium/high-pressure gases | Exact suitability depends on phase distribution and process conditions |
| Measurement modules | Optional modules for concentration, composition, viscosity, bidirectional and batch measurement | Enhances functionality for process optimisation and metering duties |
| Analog outputs | 4-20 mA | Assignable to key process variables |
| Pulse / frequency outputs | Pulse output for totalizing and batch control | For loading/unloading, batching and transfer applications |
| Digital communication | Modbus RS-485, HART | Easy integration into DCS / PLC / SCADA and pipeline RTU systems |
| Installation | Flanged, threaded, Tri-Clamp and fitting-type options; horizontal or vertical mounting | Simplifies brownfield retrofits and new skid designs |
| Protection & safety | Ex d explosion-proof, IP67 | For harsh industrial environments and classified areas (as per certificate) |
| Industry | Medium / Service | Typical Use |
| Oil & Gas | Crude oil, condensate, refined products, injection water, liquefied gases | Production and allocation metering, loading/unloading, transfer lines and injection systems |
| Petrochemical & Refining | Intermediate fractions, aromatics, LPG, process liquids and gases | Unit feed and product metering, blend control, recycle and utility lines |
| Chemical Industry | Acids, alkalis, solvents, polymer feedstocks, additives, process gases | Dosing, continuous process control, mass and density monitoring in reactors and transfer lines |
| Pulp & Paper | Pulp slurries, chemical liquors, bleaching agents, sizing and coating liquids | Mass-based dosing and consumption monitoring of process chemicals |
| New Energy & Alternative | Biofuels, fuel blends, thermal oils, liquefied energy carriers | Production, blending and transfer control in alternative and new energy applications |
| General Process & Utilities | Compressed gases, liquefied gases, industrial liquids | Utility monitoring, high-pressure gas measurement and general mass flow control |
As China KSMF U-Series Coriolis Mass Flowmeter Manufacturers and KSMF U-Series Coriolis Mass Flowmeter Factory, we are renowned for manufacturing professional and high-precision industrial instruments. Our expertise lies in providing unparalleled flow measurement resources, backed by over 12 years of experience solving complex applications.
Our precision flow metering devices are used by a diverse range of users, ranging from major oil and gas companies to photovoltaic providers, pharmaceutical manufacturers, and municipal services. We continuously contribute to the development of flow measurement in the domestic energy and chemical industries due to our expertise in measuring variable component gases and peculiar mediums.
