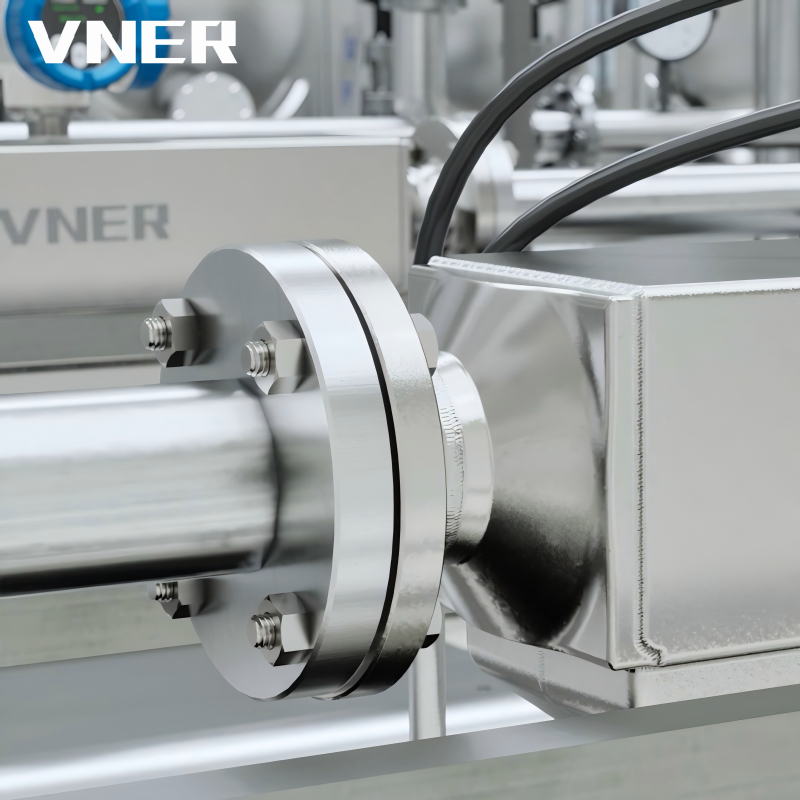

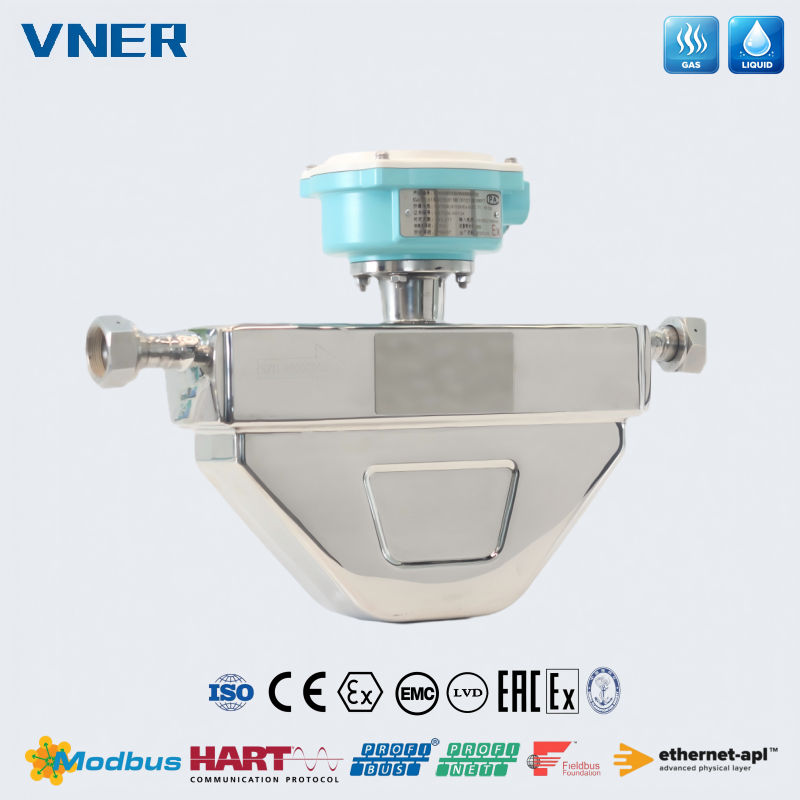

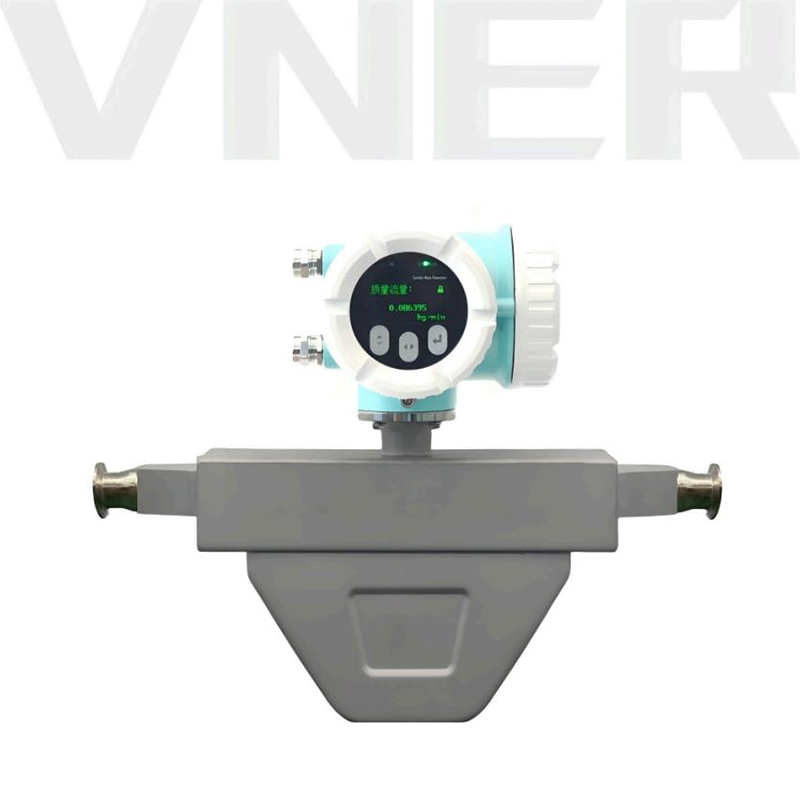

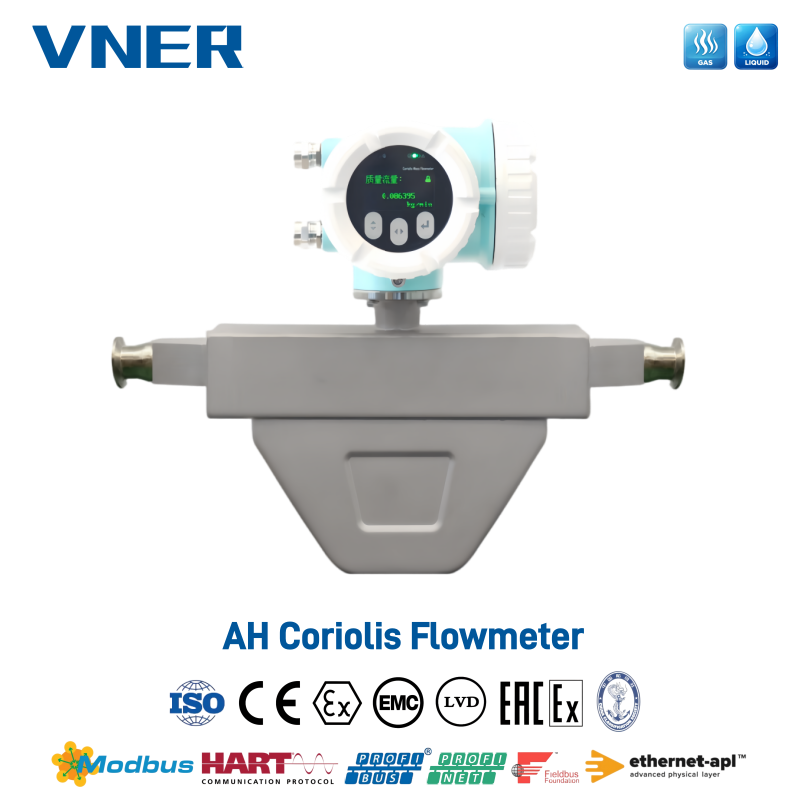

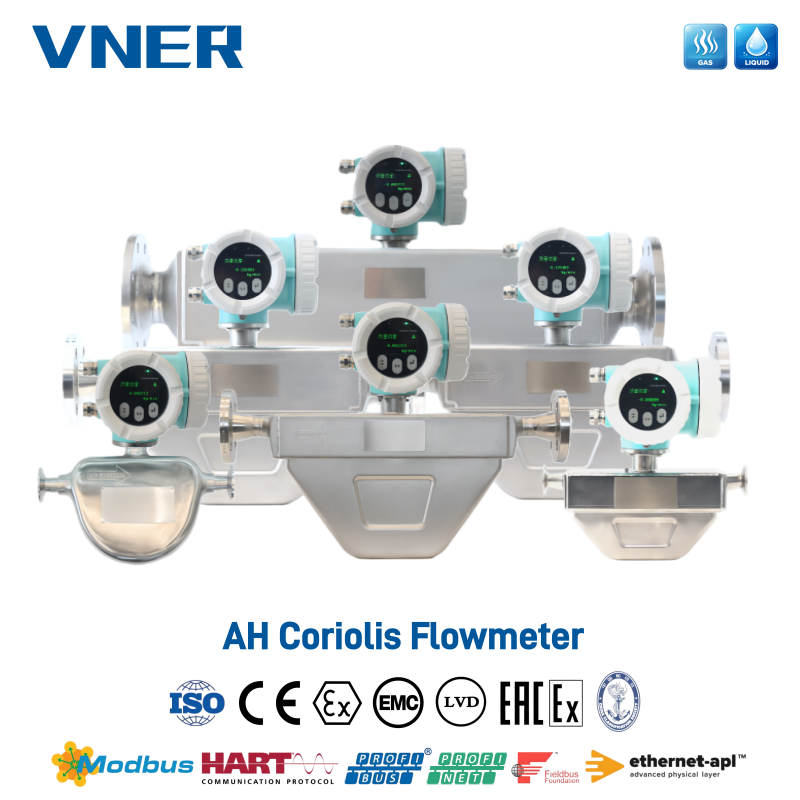

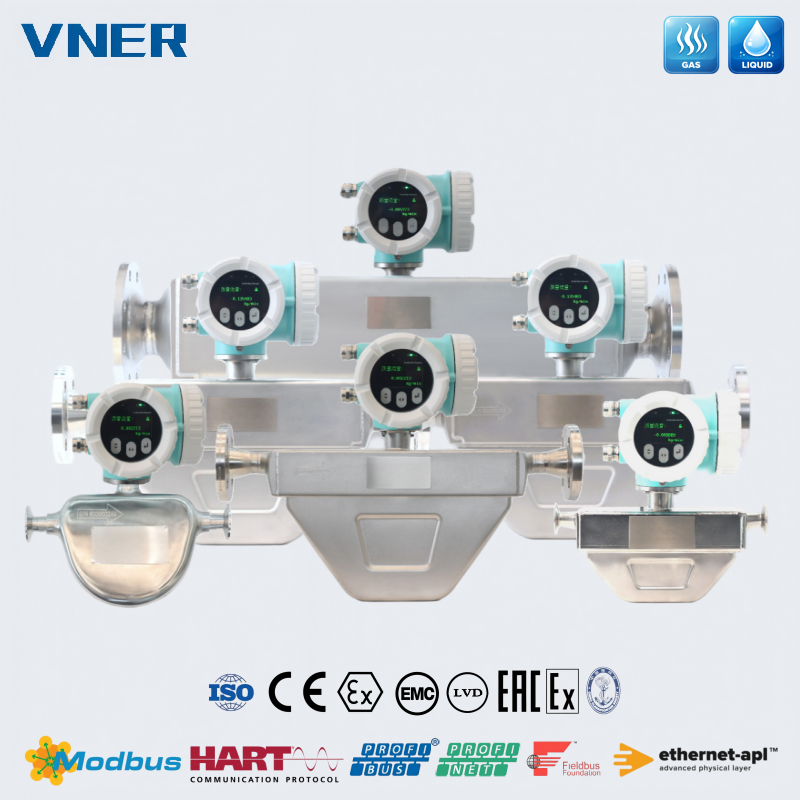

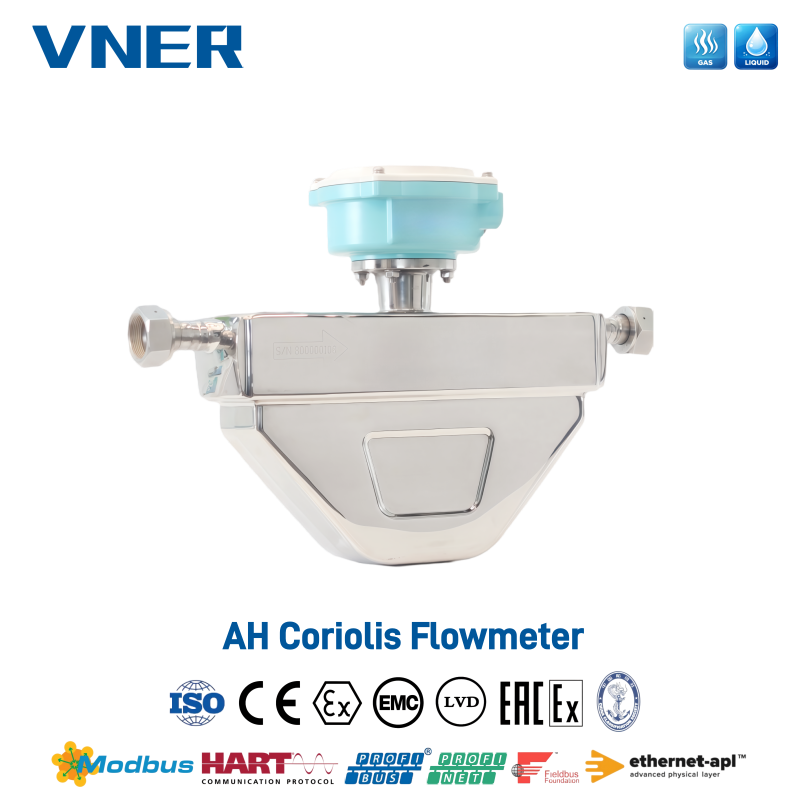

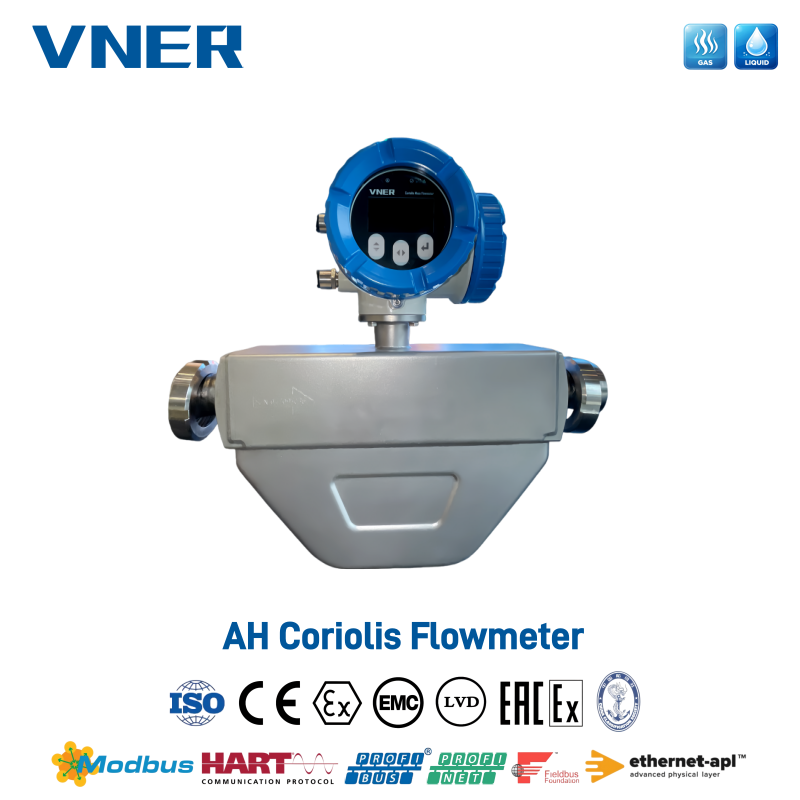

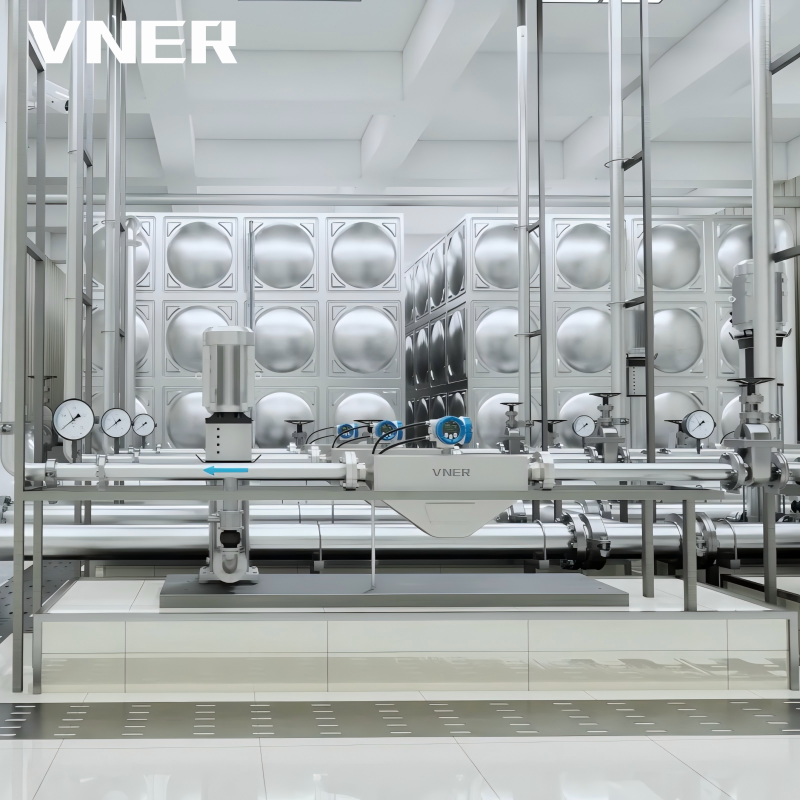

The AH Series Hygienic Coriolis Mass Flowmeters are VNERʼs dedicated solution for sanitary and aseptic processes in food & beverage, dairy, brewery, pharmaceutical and life-science applications.
Based on the Coriolis principle, the AH Series provides direct mass flow, density and temperature measurement with leading accuracy. All wetted parts are made from SS316/SS316L with precision-polished surfaces and a selfdraining, dead-zone-free flow path to support the highest hygienic standards.
With a compact, modular design, CIP/SIP capability, and a wide range of hygienic process connections compliant with ASME BPE and common sanitary standards, the AH Series is ideal for skid-mounted systems, filling lines, ingredient dosing, and critical quality-relevant measurements.
Values below are derived from the AH hygienic datasheet. Refer to the full datasheet for model-specific sizing.
| Item | Description |
| Application focus | Hygienic / sanitary processes in food, beverage, dairy, pharma, biotech and related industries |
| Measuring principle | Coriolis effect; controlled tube oscillation with phase shift proportional to mass flow |
| Measured variables | Mass flow, density, process temperature; calculated volume flow |
| Hygienic design | Self-draining, dead-zone-free flow path for full cleanability |
| Wetted materials | SS316 / SS316L, compliant with ASME BPE; surface finish Ra 0.8 μm (standard), Ra 0.38 μm (high-polish option) |
| Process connections | Wide range of sanitary and hygienic connections (Tri-clamp, ISO 2852, DIN 11851 / 1864, ASME BPE-compatible, etc.) |
| Mass flow accuracy (liquids & slurries) | ±0.05 %, ±0.10 %, ±0.15 % or ±0.20 % of rate (High Accuracy / Enhanced / Standard / General) |
| Mass flow repeatability | ±0.02 %, ±0.05 %, ±0.075 %, ±0.10 % of rate |
| Volume flow accuracy (liquids & slurries) | ±0.05 %, ±0.10 %, ±0.15 % or ±0.20 % of rate |
| Density accuracy (liquids & slurries) | ±0.50, ±1.00 or ±3.00 kg/m³ (High Accuracy / Standard / General); field calibration accuracy ±0.20 kg/m³; measuring range 0–5000 kg/m³ |
| Density repeatability | ±0.25, ±0.50 or ±1.50 kg/m³ |
| Gas mass flow accuracy | ±0.25 %, ±0.50 % or ±1.00 % of rate (option, where gas service is required) |
| Temperature accuracy / repeatability | ±1.0 °C accuracy; ±0.2 °C repeatability |
| Turndown ratio | Recommended up to 20:1 for standard accuracy; larger turndown subject to zero stability considerations |
| Zero stability (typical) | From 0.02 kg/h (AH002) up to 6.8 kg/h (AH080), model-dependent |
| Nominal flow range | AH002–AH080: approx. 300–135,000 kg/h nominal flow (at ~0.1 MPa pressure drop) |
| Max. operating pressure | Up to 10.0 MPa (AH002–AH080), subject to temperature and connection rating |
| Process temperature range | Standard sensor: -100...+200 °C |
| Ambient conditions | -40...+60 °C; ≤95 % RH non-condensing |
| Surface finish options | Standard Ra 0.8 μm; high-polish Ra 0.38 μm for enhanced cleanability |
| Secondary containment | Optional containment housing up to 2.5 MPa secondary rating AH002AH080 |
| Category | Specification / Option | Notes |
| Transmitter platform | A-Series full-digital transmitter | DSP-based signal processing and all-digital drive |
| Liquid & slurry performance | High-accuracy classes for mass, volume and density | Verified on ISO/IEC 17025-certified calibration rigs |
| Gas & two-phase capabilities | A-GASTM gas algorithm and MFDTM multi-frequency drive | For gas service and selected gas-liquid / multiphase applications where required |
| Diagnostics | ILODTM intelligent online diagnostics | NAMUR NE107-compliant status and event messaging; supports predictive maintenance |
| Measurement modules | Concentration, component fractions, viscosity, bidirectional flow, batch control | Extends measurement scope and reduces instrument count on skids |
| Hygienic operation | Fully CIP/SIP-capable sensor design | Maintains performance under repeated cleaning and sterilization cycles |
| Analog outputs | 4-20 mA (HART) | Assignable to key process variables |
| Pulse / frequency outputs | Up to 10 kHz pulse / frequency | Suitable for filling, batching and totalizing |
| Digital communication | HART, Modbus RS485, FOUNDATION Fieldbus, PROFINET, PROFIBUS-PA, Ethernet-APL, discrete I/O | Up to 5 configurable I/O channels with flexible combinations |
| Installation options | Integral, extended-integral, remote and wall-mounted | Supports compact skids, tight hygienic manifolds and remote electronics placement |
| Housing options | Sensor housing: SS304 / SS304L; transmitter housing: epoxy-coated aluminium or SS316 / SS316L | Hygienic and corrosion-resistant options for wash-down environments |
| Vibration & environment | Withstands up to 1.0 g, 5–2000 Hz; ambient –40...+60 °C | Suitable for typical plant and skid environments |
| Industry | Medium / Service | Typical Use |
| Dairy & Milk Processing | Raw milk, cream, whey, concentrates | Mass-based transfer, standardization, blending and inline quality monitoring |
| Food & Beverage | Syrups, sugar solutions, sauces, edible oils, flavours | Dosing, batching and filling lines with mass / density control; CIP/SIP-capable measurement points |
| Brewery & Beverage | Wort, beer, soft drinks, CO₂-saturated beverages | Fermentation and filtration control, product transfer and packaging-line metering |
| Pharmaceutical & Biotech | WFI, PW, buffer solutions, media, intermediates | Critical process and utility measurement where hygienic design and accuracy are required |
| Life Sciences & Research | High-purity liquids, culture media, process development streams | Pilot plants, skids and test rigs requiring precise mass and density data |
| Personal Care & Cosmetics | Emulsions, creams, surfactant solutions | Mass-based batching and blending of high-value formulations |
| CIP/SIP Systems | Cleaning and sterilization media | Monitoring of CIP concentrates, return lines and sterilization cycles in hygienic plants |
