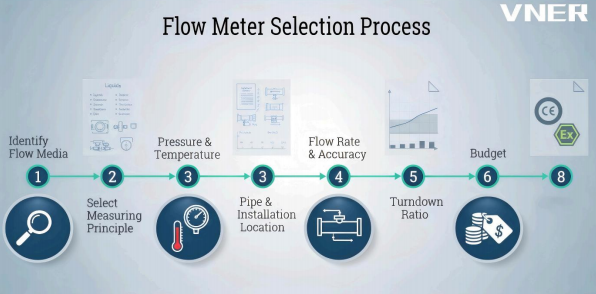

Flowmeter Selection Process: From Application to Perfect Match

Selecting the right flow meter is not simply about choosing a measuring instrument — it is about ensuring process reliability,measurement accuracy, and long-term operational efficiency.

1.Identify Flow Media

Understanding the process medium is the foundation of any selection.

Determine whether the flow medium is:

• Liquid, Gas, or Steam
• Corrosive, Conductive, or Non-conductive
• Multiphase (liquid + solid/gas) or single-phase
• Viscous, clean, or contains suspended solids

Knowing these characteristics directly affects which measuring principles are feasible.

For example, electromagnetic meters require conductive liquids, while Coriolis meters perform best with clean, single-phase fluids.

2.Select Measuring Principle

Once the medium is defined, select the most suitable measuring technology:

• Electromagnetic Flowmeter (EMF) – For conductive liquids, water, chemicals, slurries.
• Vortex Flowmeter – For steam, gases, and liquids with stable flow profiles.
• Coriolis Mass Flowmeter – For precise mass flow and density measurement in liquids or gases.
• Ultrasonic Flowmeter – For large pipes or non-invasive installations.
• Thermal Mass Flowmeter – For clean gases.
• Mechanical Flowmeter (Turbine, Positive Displacement) – For simple, low-cost applications.

Each principle has distinct advantages in accuracy, cost, installation complexity, and maintenance. A proper match ensures reliable long-term operation.

3.Define Operating Pressure & Temperature

The process pressure and temperature determine:

• Sensor material (stainless steel, Hastelloy, PTFE lining, etc.)
• Sealing and gasket selection
• Flowmeter body rating (PN/ANSI Class)
• Temperature compensation requirements

Always ensure the selected instrument’s pressure and temperature ratings exceed the system’s maximum operating conditions, with safety margins in compliance with PED or ASME standards.

4.Assess Pipe & Installation Conditions

Flowmeters perform best when properly installed. Key parameters include:

• Pipe Size & Orientation (horizontal, vertical, full pipe)
• Upstream and Downstream Straight Runs to ensure stable flow profile
• Location relative to valves, pumps, or elbows to minimize turbulence
• Mounting Space & Accessibility for wiring, calibration, and maintenance
• Power Supply (AC/DC) and Signal Output Options (4–20 mA, Pulse, Modbus, HART, etc.)
• Ingress Protection (IP65, IP67, IP68)
• Hazardous Area Classification (Ex ia, Ex d, etc.)

A well-planned installation layout prevents measurement errors caused by poor flow conditions or electrical interference.

5.Determine Flow Range & Accuracy Requirements

Defining the operating flow rate and required accuracy is crucial.

Specify:

• Minimum, Normal, and Maximum Flowrates
• Expected process fluctuation range
• Required accuracy or repeatability (e.g., ±0.1%, ±0.2%, ±0.5% ±1.0%)

The correct meter size ensures the flow remains within the optimal measuring range (Reynolds number stability zone),avoiding low-flow inaccuracies or over-range saturation.

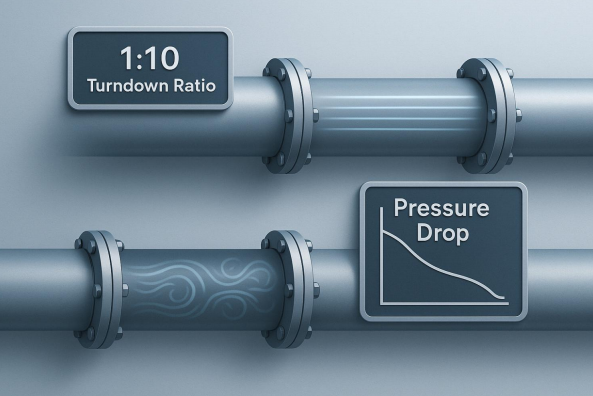

6.Evaluate Turndown Ratio & Pressure Loss

• Turndown Ratio describes the measurement range flexibility (e.g., 1:10, 1:20).
  A higher turndown ratio offers better adaptability to varying flow conditions.
• Pressure Loss must be minimized to avoid process inefficiencies.
  Certain technologies like Coriolis and Vortex may introduce pressure drops — always check if the process can tolerate it.

7.Budget & Lifecycle Considerations

While initial instrument cost is important, the total cost of ownership (TCO) should be considered:

• Purchase price vs. accuracy and reliability
• Calibration and maintenance frequency
• Spare parts availability
• Power consumption and downtime cost

For large-scale projects, balancing performance, longevity, and budget ensures economic value throughout the product lifecycle.

8.Certification & Compliance Requirements

Flowmeters must comply with relevant international standards and regulations, depending on the application and export destination:

• Safety & Explosion-Proof: IECEx, ATEX, UL
• Electrical Compliance: CE-EMC, CE-LVD
• Pressure Equipment: CE-PED, ASME
• Food & Pharmaceutical: FDA, 3A, EHEDG
• Trade & Legal Metrology: MID (Measuring Instruments Directive)

Proper certification guarantees that the instrument meets global safety and performance standards.

Conclusion

A systematic selection process ensures not only technical compatibility but also long-term stability and regulatory compliance.

By understanding the medium, measurement principle, installation conditions, and certification needs, engineers and procurement specialists can achieve optimal results — minimizing risks and maximizing efficiency.

At VNER Electronic Technology LTD, we combine decades of field experience with advanced flow measurement technologies to help our partners select the most suitable solutions for their applications — from water treatment and petrochemical plants to oil & gas and polysilicon industries.
